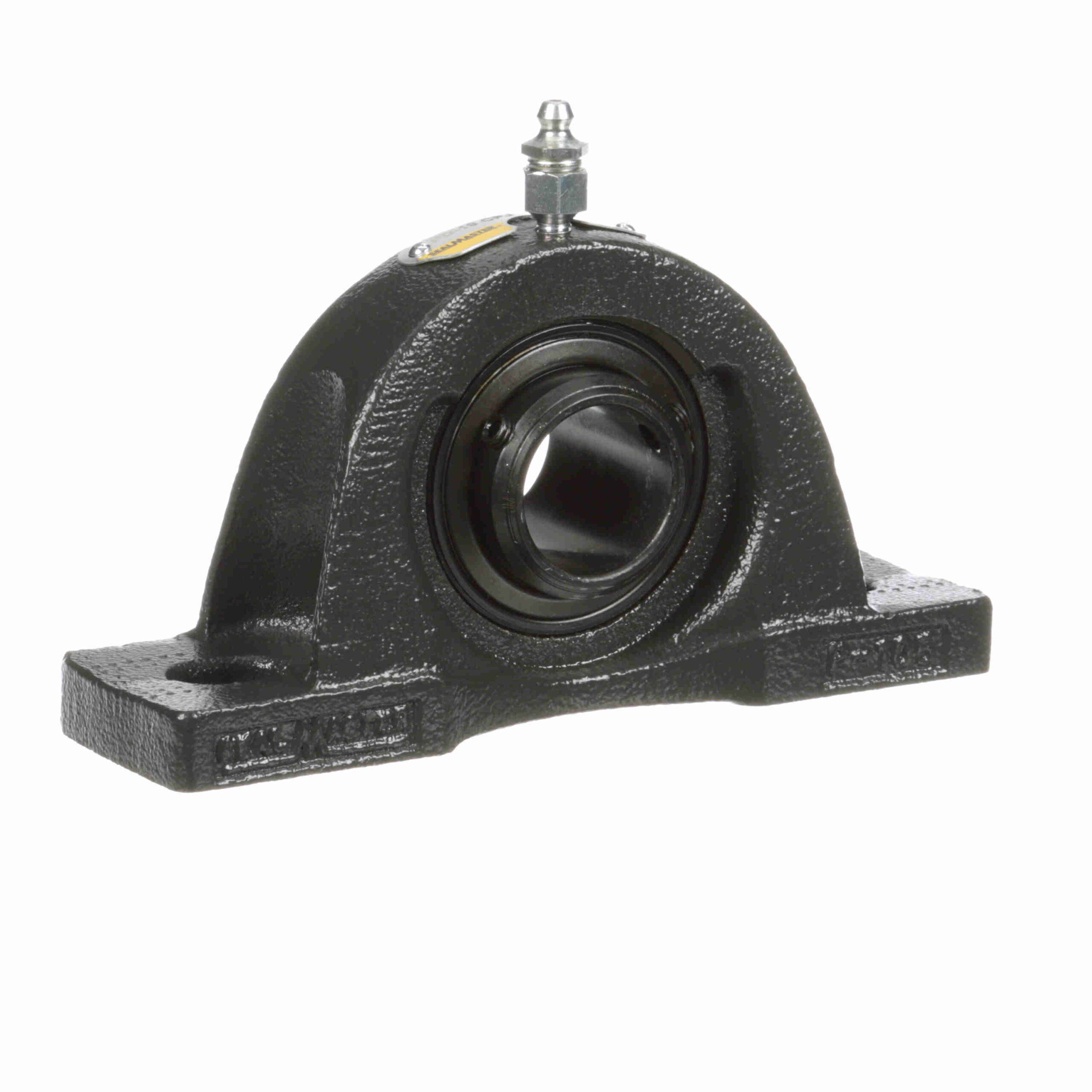

NPD-19 CPJ

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Rolling Element:	Ball Bearing	Measure Units:	Inch
Internal Clearance:	Standard	Seal Type:	Felt Labyrinth Seal
Insert Material:	52100 Bearing Steel, Black Oxided	Housing Base:	Solid
Bore Shape:	Straight	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	Housing Color:	Gray
Replaceable Insert:	Yes	Platform:	Air Handling
Outer Ring Land Profile:	Standard	End Cap:	No
Housing Style:	Pillow Block	Maximum Speed (RPM):	7600 rpm
Locking Type:	Double Setscrew	Fixed vs. Expansion:	Fixed
Housing Material:	Cast Iron	Retainer Type:	Land Riding Retainer
Housing Type:	Pillow Block, Two Bolt	Duty/Series:	Standard Duty
Lubrication Type:	Lithium Complex NLGI 2 Grease	Insert Number:	2-13D
Maximum Operating Temperature (F):	220 °F	Ability to Relubricate:	Yes
Inner Race Heat Treat Method:	Zone-Hardened	UPC:	662461000000
Weight:	3.76 LB	Packaged Length:	4.63 Inches
Packaged Width:	2.31 Inches	Packaged Height:	7.5 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
