- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

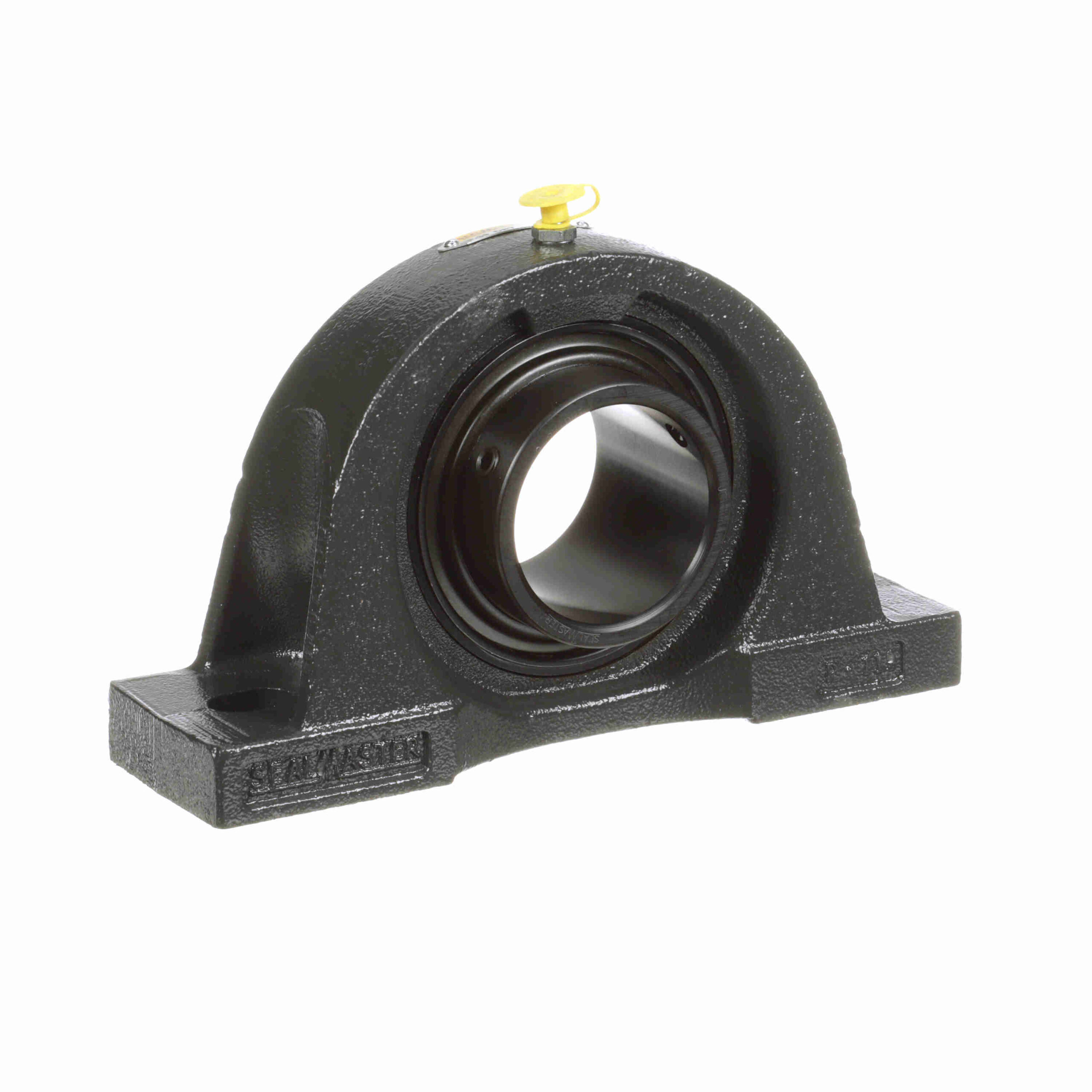

NP-39 DRT
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Contamination – NP-39 DRT
$1,210.78
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Seal Type: | Multi-Lip Contact Seal | Housing Base: | Solid |
| Measure Units: | Inch | Internal Clearance: | Standard |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Options: | High Contamination |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Maximum Speed (RPM): | 650 rpm |
| Housing Material: | Cast Iron | Fixed vs. Expansion: | Fixed |
| Housing Type: | Pillow Block, Two Bolt | Duty/Series: | Standard Duty |
| Retainer Type: | Land Riding Retainer | Housing Style: | Pillow Block |
| Lubrication Type: | Lithium Complex NLGI 2 Grease - 100% Fill | Locking Type: | Setscrew |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | 2-27 DRT |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| UPC: | 662461000000 | Weight: | 13.90 LB |
| Packaged Length: | 10.38 Inches | Packaged Width: | 6.5 Inches |
| Packaged Height: | 3 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
