- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-29

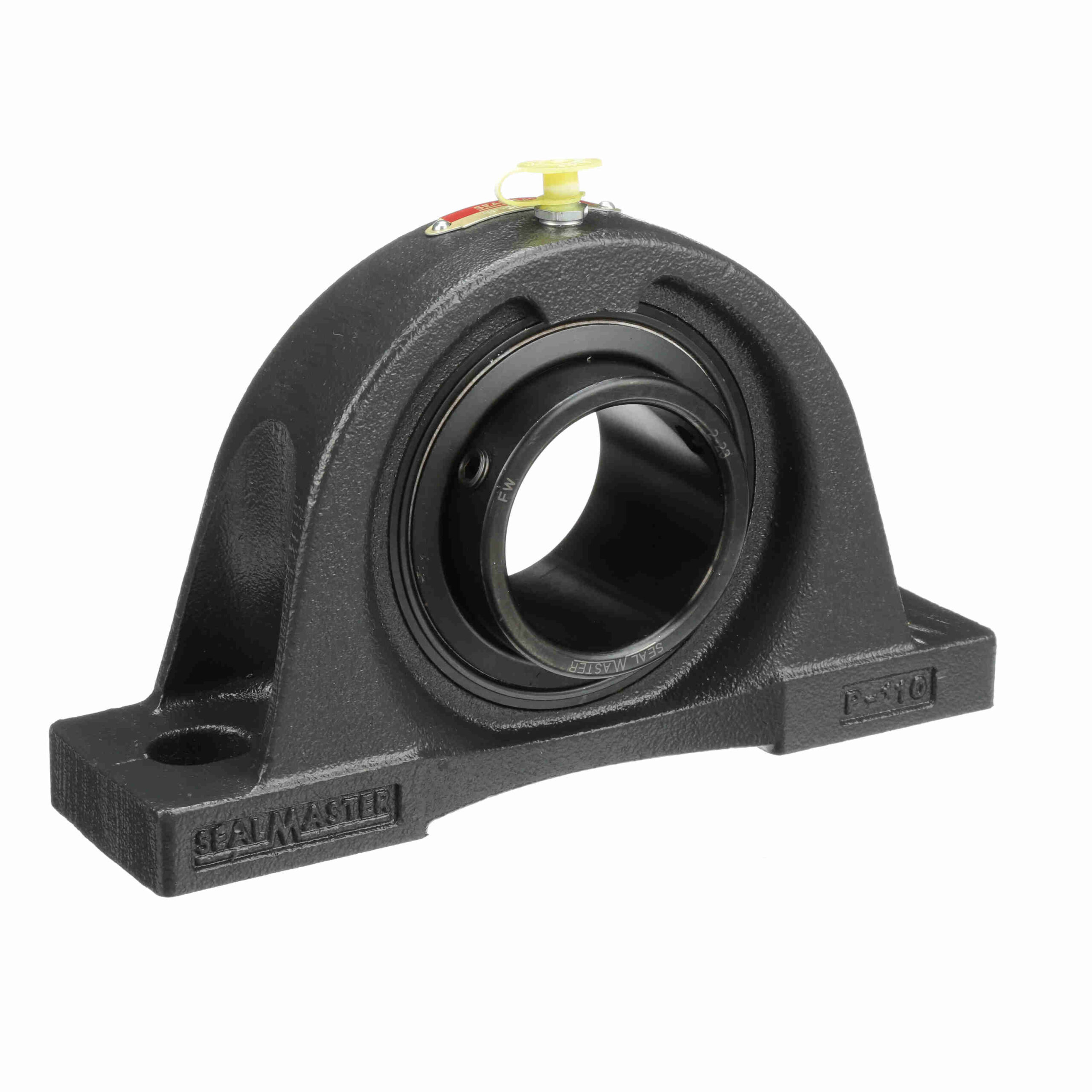

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-29
$578.98
Out of stock
Out of stock
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Rolling Element: | Ball Bearing |
| Internal Clearance: | Standard | Measure Units: | Inch |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Misalignment Type: | Static Only |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Housing Material: | Cast Iron | Maximum Speed (RPM): | 3550 rpm |
| Fixed vs. Expansion: | Fixed | Retainer Type: | Land Riding Retainer |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Housing Type: | Pillow Block, Two Bolt | Duty/Series: | Standard Duty |
| Housing Style: | Pillow Block | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | 2-113 |
| Ability to Relubricate: | Yes | UPC: | 662461000000 |
| Weight: | 8.20 LB | Packaged Length: | 9 Inches |
| Packaged Width: | 5.19 Inches | Packaged Height: | 2.38 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
