NP-208 DRT

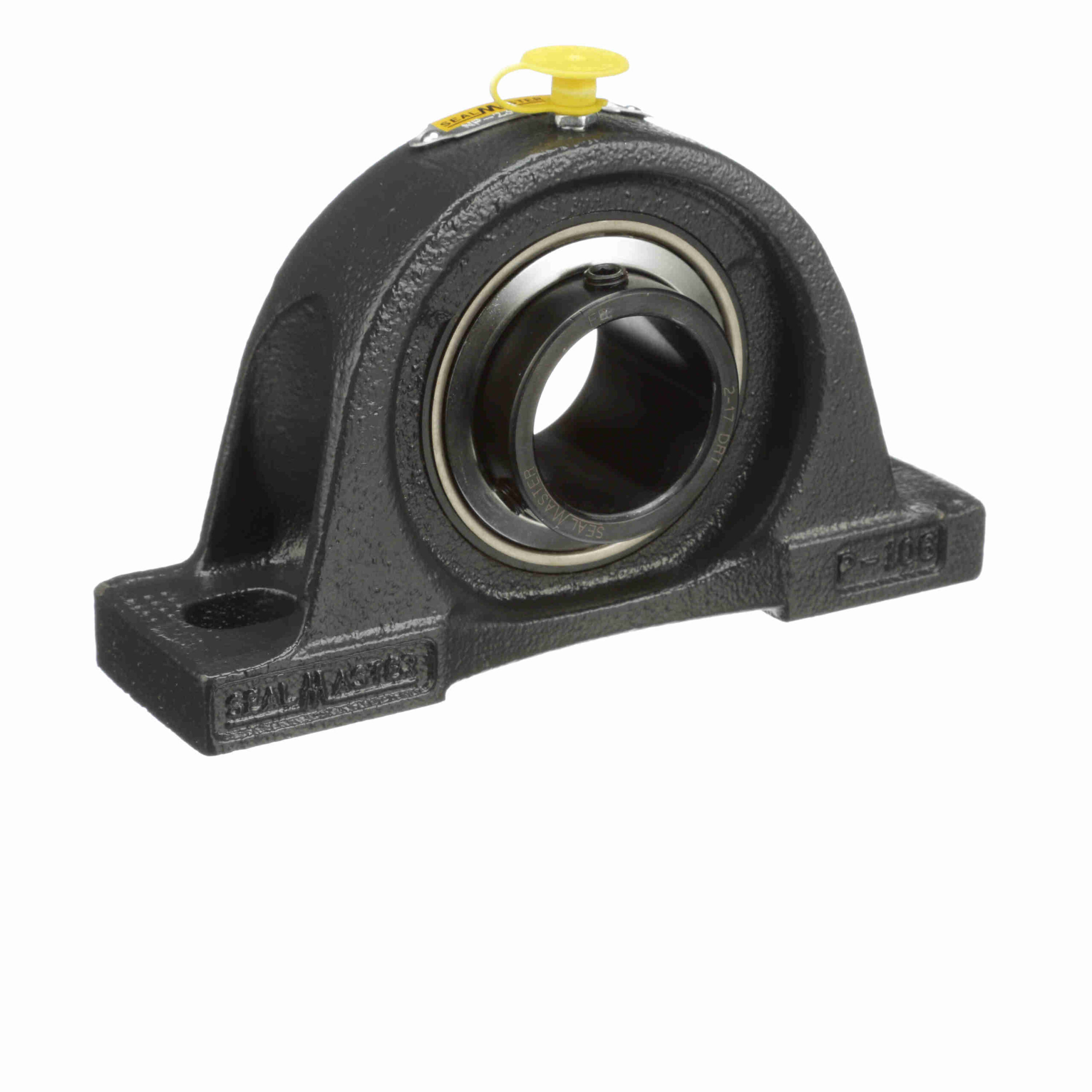

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-208 DRT
$473.47
Out of stock
Out of stock
| Housing Material: | Cast Iron | Expansion: | No |
|---|---|---|---|
| Internal Clearance: | Standard | Grease Fitting Thread Size: | 1/4-28 |
| Housing Type: | Pillow Block, Two Bolt | Locking Type: | Setscrew |
| Precision Rating: | ABEC 1 | Radial Dynamic Load Capacity (lb): | 7, 340 |
| Series: | NP | Insert Material: | 52100 Bearing Steel |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Retainer Type: | Land Riding Retainer | Maximum Operating Temperature: | 220 °F |
| Duty Series: | Standard Duty | Measure Units: | Metric |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Speed (Max): | 400 | Radial Static Load Capacity (lb): | 4, 467 |
| Bearing Insert Coating: | Black Oxide Coated | Housing Construction: | One Piece |
| Rolling Element: | Ball Bearing | Seal Type: | Multi-Lip Contact Seal |
| Platform: | Gold Line Ball Bearing | Lubrication: | Lithium Complex NLGI 2 Grease |
| End Cap: | No | Bore Shape: | Straight |
| UPC: | 662461326800 | Weight: | 5.70 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
