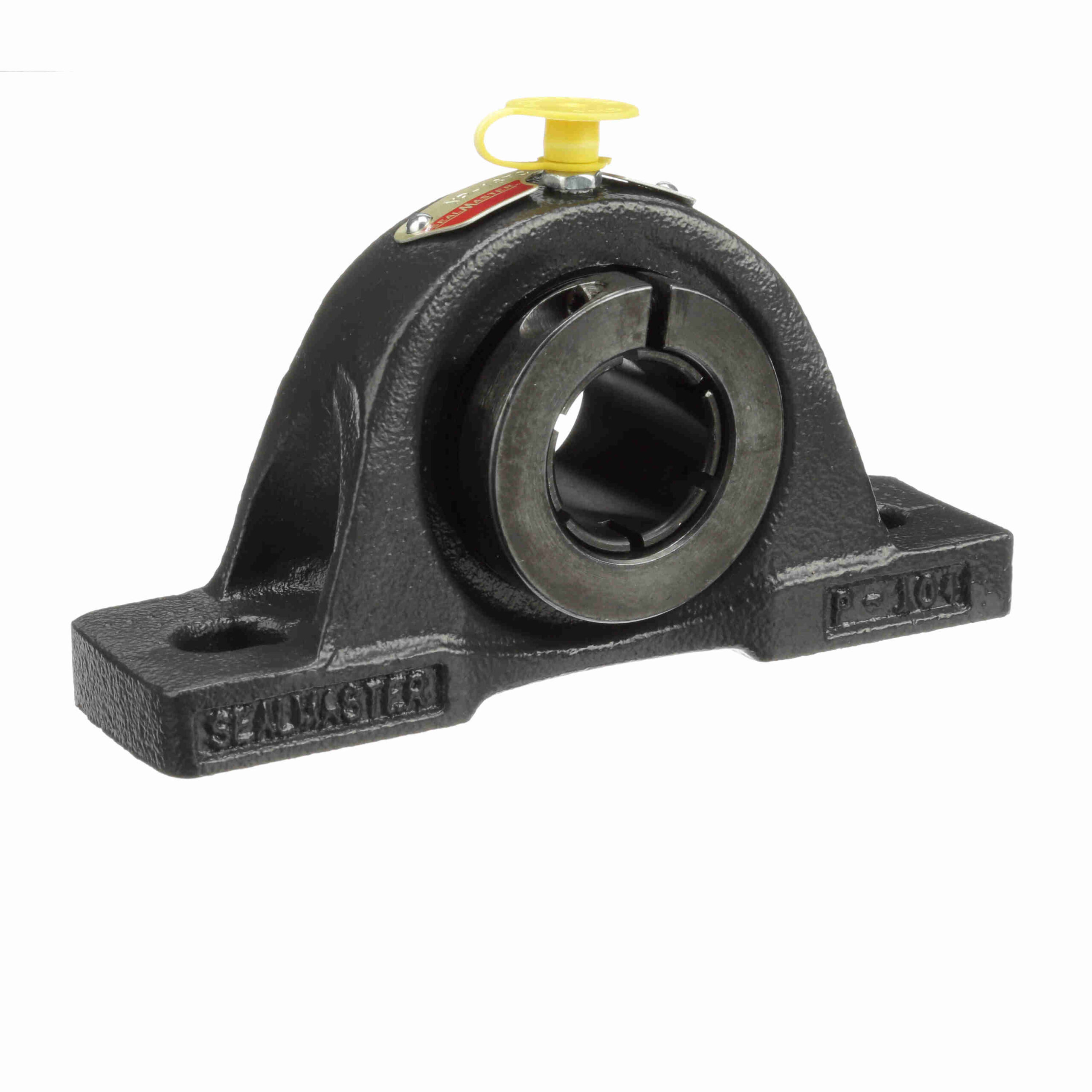

NP-16T HI

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
High temperature felt labyrinth seal and flinger
Increased internal clearance
Krytox® high temperature grease
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Rolling Element:	Ball Bearing	Internal Clearance:	Increased
Measure Units:	Inch	Insert Material:	52100 Bearing Steel, Black Oxided
Seal Type:	High Temp Labyrinth	Housing Base:	Solid
Bore Shape:	Straight	Housing Construction:	One Piece
Misalignment:	±2.0° Misalignment - Static Only	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Misalignment Type:	Static Only
Platform:	Gold Line Ball Bearing	Housing Color:	Gray
Options:	High Temperature	Duty/Series:	Standard Duty
Fixed vs. Expansion:	Fixed	Housing Material:	Cast Iron
Housing Style:	Pillow Block	Maximum Speed (RPM):	2750 rpm
Lubrication Type:	PTFE thickened Grease	Locking Type:	Concentric
Retainer Type:	Land Riding Retainer	Housing Type:	Pillow Block, Two Bolt
Maximum Operating Temperature (F):	400 °F	Operating Temperature Range (F):	Max. +400°F °F
Insert Number:	2-1T HI	Inner Race Heat Treat Method:	Zone-Hardened
Ability to Relubricate:	Yes	UPC:	662461000000
Weight:	2.40 LB	Packaged Length:	3.5 Inches
Packaged Width:	1.69 Inches	Packaged Height:	5.75 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
