- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal with black oxide bearing races
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NP-12C

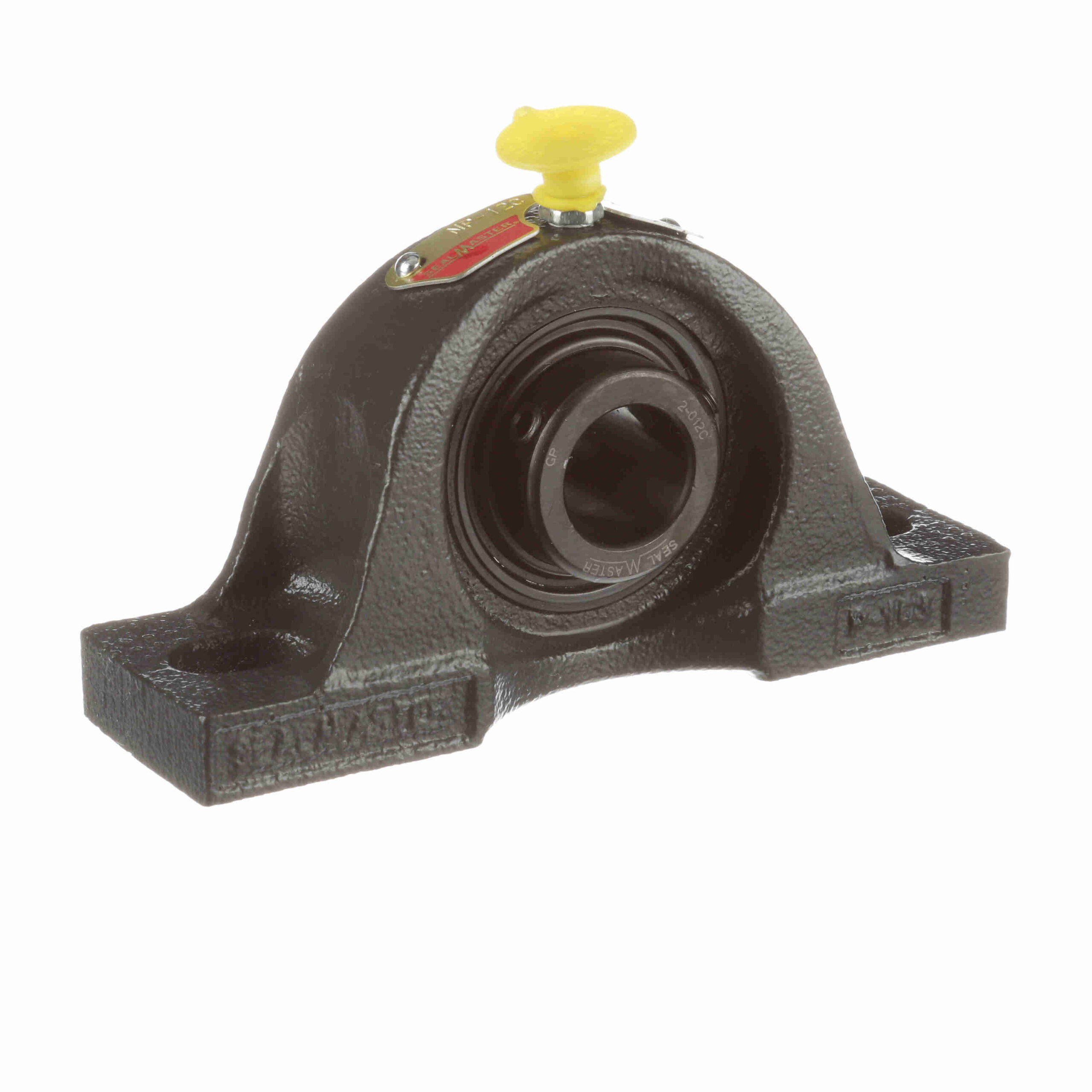

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-12C
$95.43
Out of stock
Out of stock
| Duty Series: | Standard Duty | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Housing Type: | Pillow Block; Two Bolt | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Insert No.: | 2-012C | Measure Units: | Inch |
| Housing Base: | Solid | Housing Material: | Cast Iron |
| Internal Clearance: | Standard | Rolling Element: | Ball Bearing |
| Retainer Type: | Land Riding Retainer | Seal Type: | Single Lip Contact Seal |
| Expansion: | No | Speed (Max): | 6450 |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Relubricatable: | Yes | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Construction: | One Piece | Replaceable Insert: | Yes |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Housing Color: | Gray |
| UPC: | 662461020623 | Weight: | 1.80 LB |
| Packaged Length: | 3.19 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.25 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
