- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NJ 217 EM

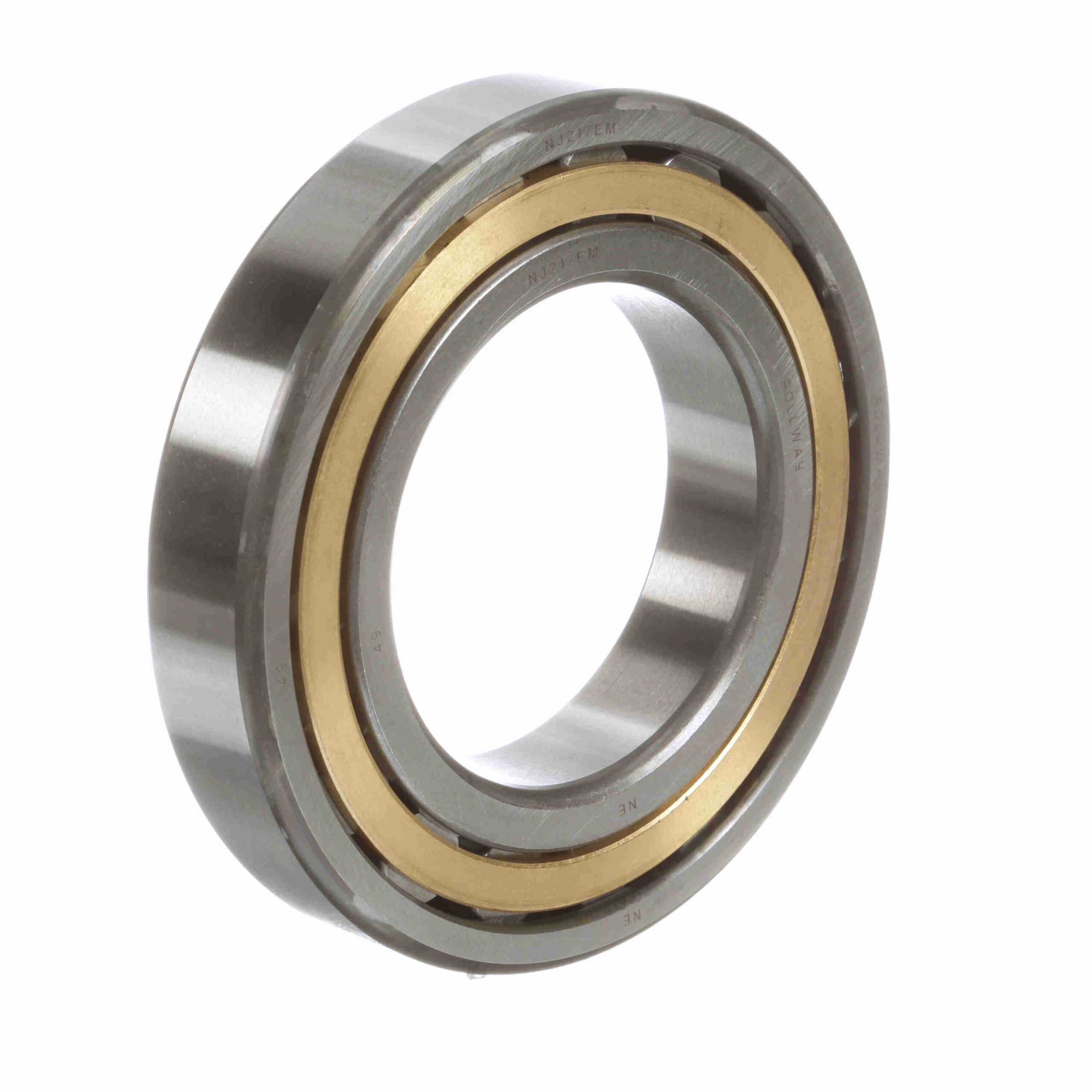

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NJ 217 EM
$812.56
Out of stock
Out of stock
| Inner Race Configuration: | Separable Both Directions | Outer Race Configuration: | Non-Separable |
|---|---|---|---|
| Version: | EM: Extra capacity design - Machined brass retainer | Additional Information: | Can be used to a certain extent to take combined loads |
| Seal Type: | Unsealed | Dynamic Load Rating (kN): | 164.001482170401 kN |
| Flanges: | (1) Flange on Inner Ring, (2) Flanges on Outer Ring | Static Load Rating (kN): | 194 kN |
| Bore Type: | Straight | Cage Material: | Brass |
| Misalignment: | No | Material: | High Chromium Bearing Steel |
| Number of Rows: | 1 | Rolling Element: | Cylindrical Roller |
| Radial Clearance: | C0 | Dynamic Load Rating (lb): | 36, 869 lb |
| Static Load Rating (lb): | 43, 613 lb | Speed [Max] Grease (RPM): | 4, 300 rpm |
| Platform: | Cylindrical Radial | Full Complement/Caged: | Caged |
| Duplexing: | No | Speed [Max] Oil (RPM): | 5, 000 rpm |
| Sealed: | None | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | Snap Ring: | No |
| Separable: | Inner ring - one side | UPC: | 637410081000 |
| Weight: | 4.52 LB | Packaged Length: | 5.91 Inches |
| Packaged Width: | 1.1 Inches | Packaged Height: | 5.91 Inches |
| Country of Origin: | China |
