- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NJ 211 EM

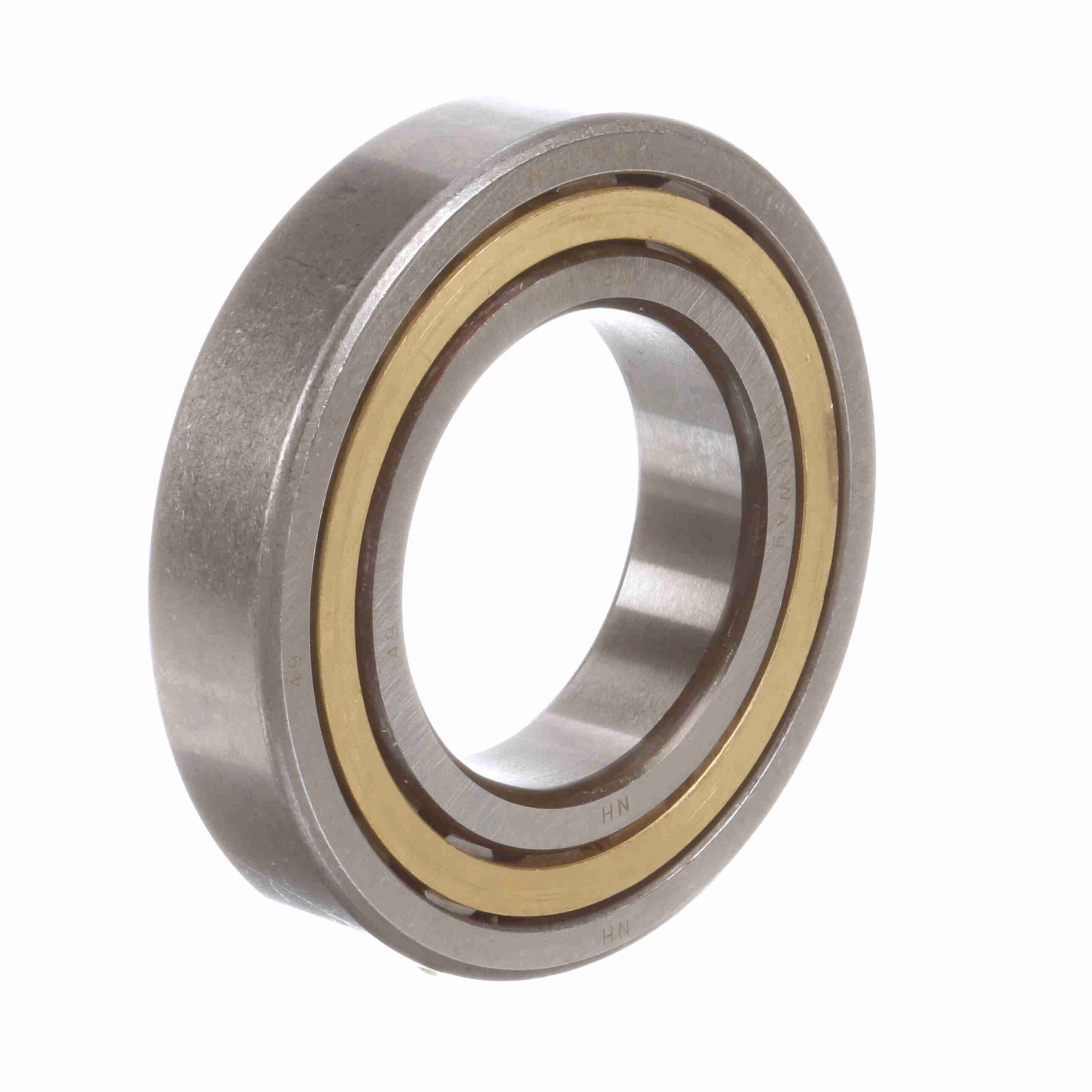

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NJ 211 EM
$456.26
Out of stock
Out of stock
| Outer Race Configuration: | Non-Separable | Version: | EM: Extra capacity design - Machined brass retainer |
|---|---|---|---|
| Inner Race Configuration: | Separable Both Directions | Additional Information: | Can be used to a certain extent to take combined loads |
| Dynamic Load Rating (kN): | 82.5990268904007 kN | Flanges: | (1) Flange on Inner Ring, (2) Flanges on Outer Ring |
| Static Load Rating (kN): | 93.4 kN | Seal Type: | Unsealed |
| Bore Type: | Straight | Cage Material: | Brass |
| Material: | High Chromium Bearing Steel | Rolling Element: | Cylindrical Roller |
| Misalignment: | No | Number of Rows: | 1 |
| Radial Clearance: | C0 | Speed [Max] Grease (RPM): | 6, 300 rpm |
| Full Complement/Caged: | Caged | Static Load Rating (lb): | 20, 997 lb |
| Dynamic Load Rating (lb): | 18, 569 lb | Speed [Max] Oil (RPM): | 7, 500 rpm |
| Platform: | Cylindrical Radial | Duplexing: | No |
| Sealed: | None | Snap Ring: | No |
| Separable: | Inner ring - one side | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410080553 |
| Weight: | 2.06 LB | Packaged Length: | 4.1 Inches |
| Packaged Width: | 4.2 Inches | Packaged Height: | 1.2 Inches |
| Country of Origin: | China |
