- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers

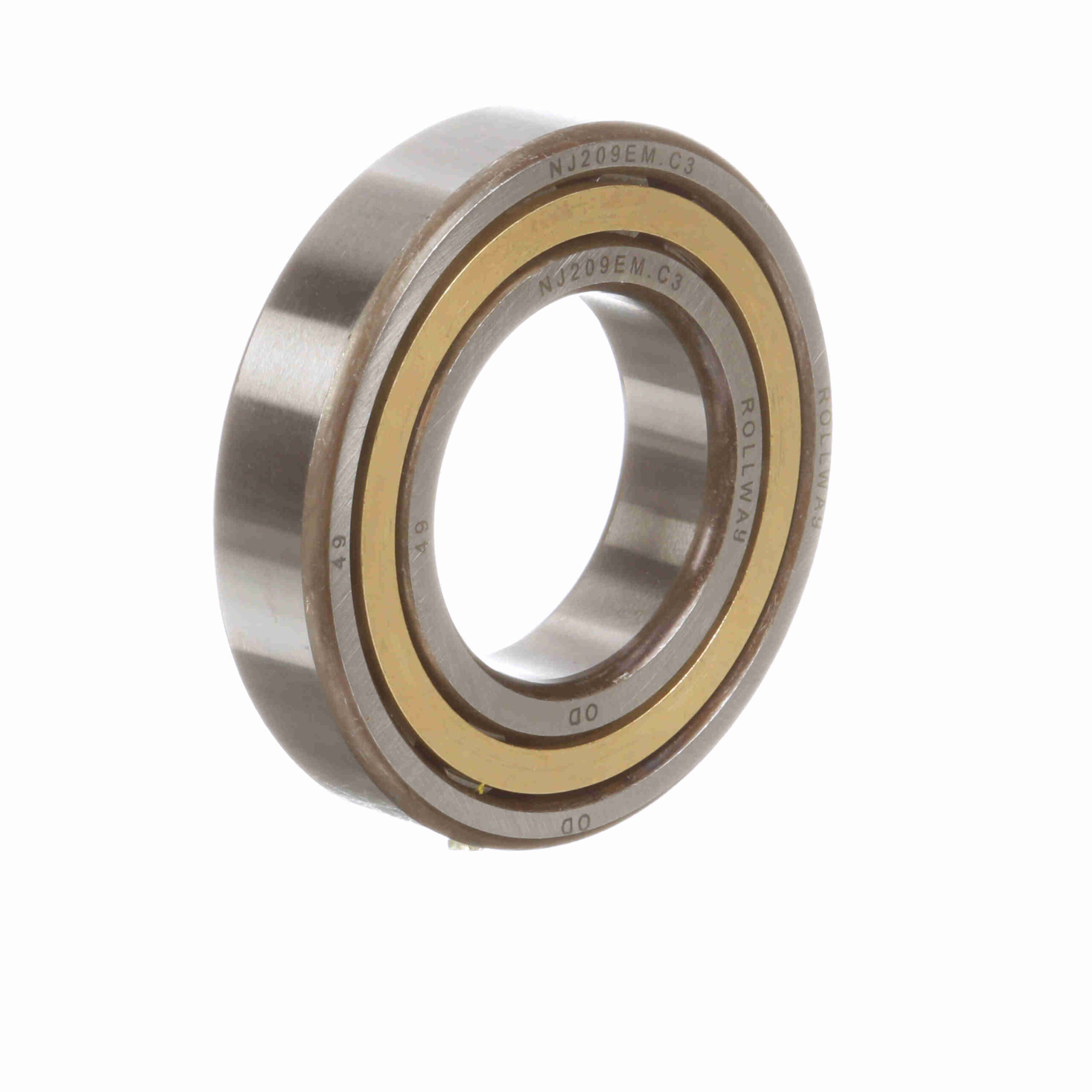

NJ 209 EM C3
Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NJ 209 EM C3
$275.46
Out of stock
Out of stock
| Additional Information: | Can be used to a certain extent to take combined loads | Inner Race Configuration: | Separable Both Directions |
|---|---|---|---|
| Version: | EM: Extra capacity design - Machined brass retainer | Outer Race Configuration: | Non-Separable |
| Static Load Rating (kN): | 66.4 kN | Seal Type: | Unsealed |
| Bore Type: | Straight | Cage Material: | Brass |
| Rolling Element: | Cylindrical Roller | Radial Clearance: | C3 |
| Material: | High Chromium Bearing Steel | Misalignment: | No |
| Number of Rows: | 1 | Dynamic Load Rating (lb): | 14, 163 lb |
| Platform: | Cylindrical Radial | Duplexing: | No |
| Full Complement/Caged: | Caged | Speed [Max] Grease (RPM): | 8, 000 rpm |
| Speed [Max] Oil (RPM): | 6, 300 rpm | Static Load Rating (lb): | 14, 927 lb |
| Sealed: | None | Profile: | Complete with Outer and Inner Race |
| Retainer: | Yes | Separable: | Inner ring - one side |
| Snap Ring: | No | UPC: | 637410080409 |
| Weight: | 1.50 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 3.5 Inches | Packaged Height: | 1.3 Inches |
| Country of Origin: | China |
