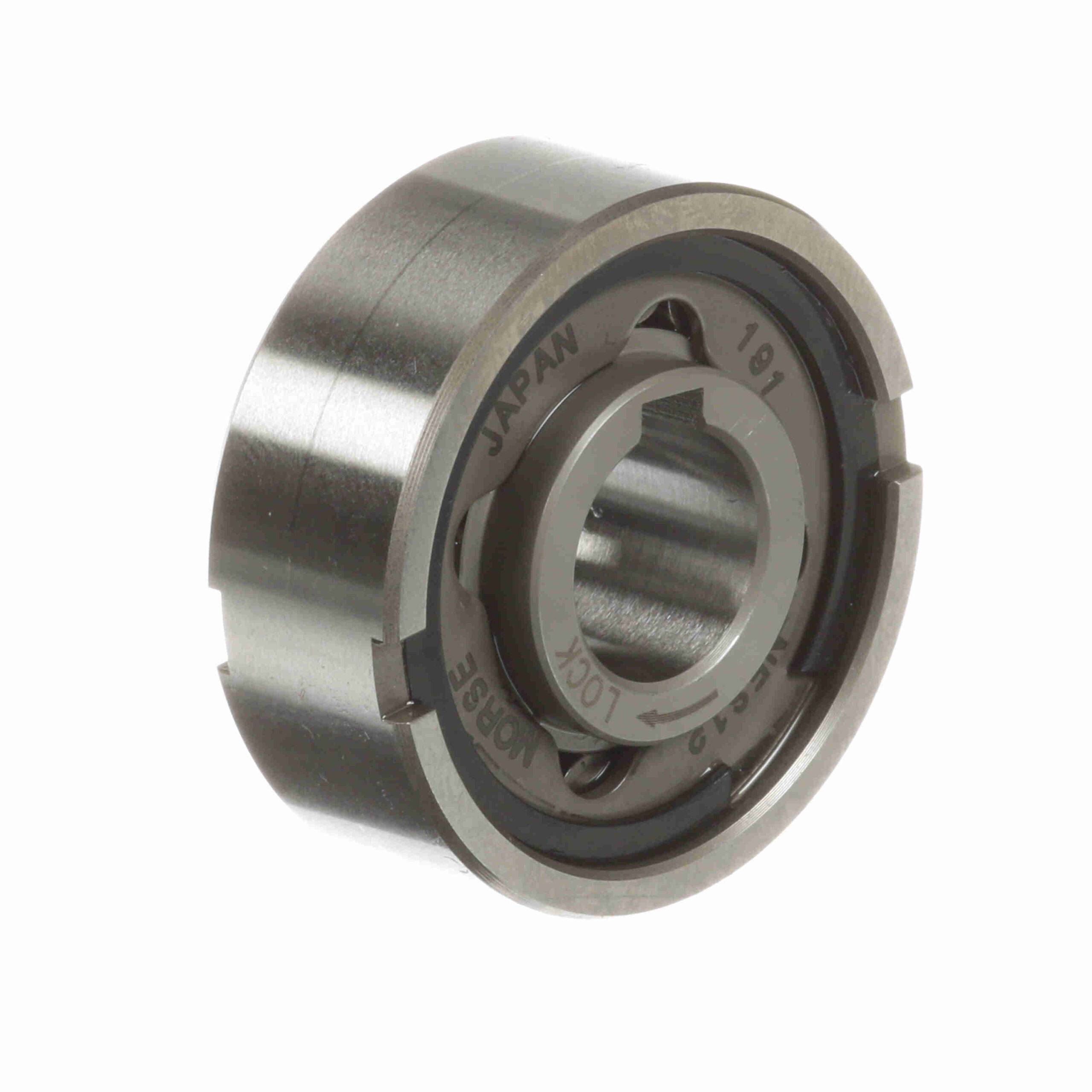

NFS-12 CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
Manufactured with an inner race containing a key seat and out race containing key slots

Maximum Overrunning Speed - Inner Race (rpm):	4, 500	Model:	NFS 12
Drag Torque (lb-in):	.36	Rated Torque Capacity (N-m):	18
Keyway (in):	0.16 x 0.07 in	Maximum Overrunning Speed - Outer Race (rpm):	2, 300
Drag Torque (N-m):	.04	Type:	CAM Clutches
Keyway (mm):	4 x 1.8 mm	Rated Torque Capacity (ft.-lbs.):	13
Lubrication Type:	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.	Add'l Bearing Support Requirement:	Yes
Overrunning Clutch:	Yes	Bore Size (mm):	12 mm
Backstopping Clutch:	No	Bore Size (in):	0.47244 in
Product Type:	NFS Series	Indexing Clutch:	Yes
UPC:	662460387529	Weight:	0.19 LB
Packaged Length:	2.60 Inches	Packaged Width:	2.50 Inches
Packaged Height:	1.10 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
