- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS884

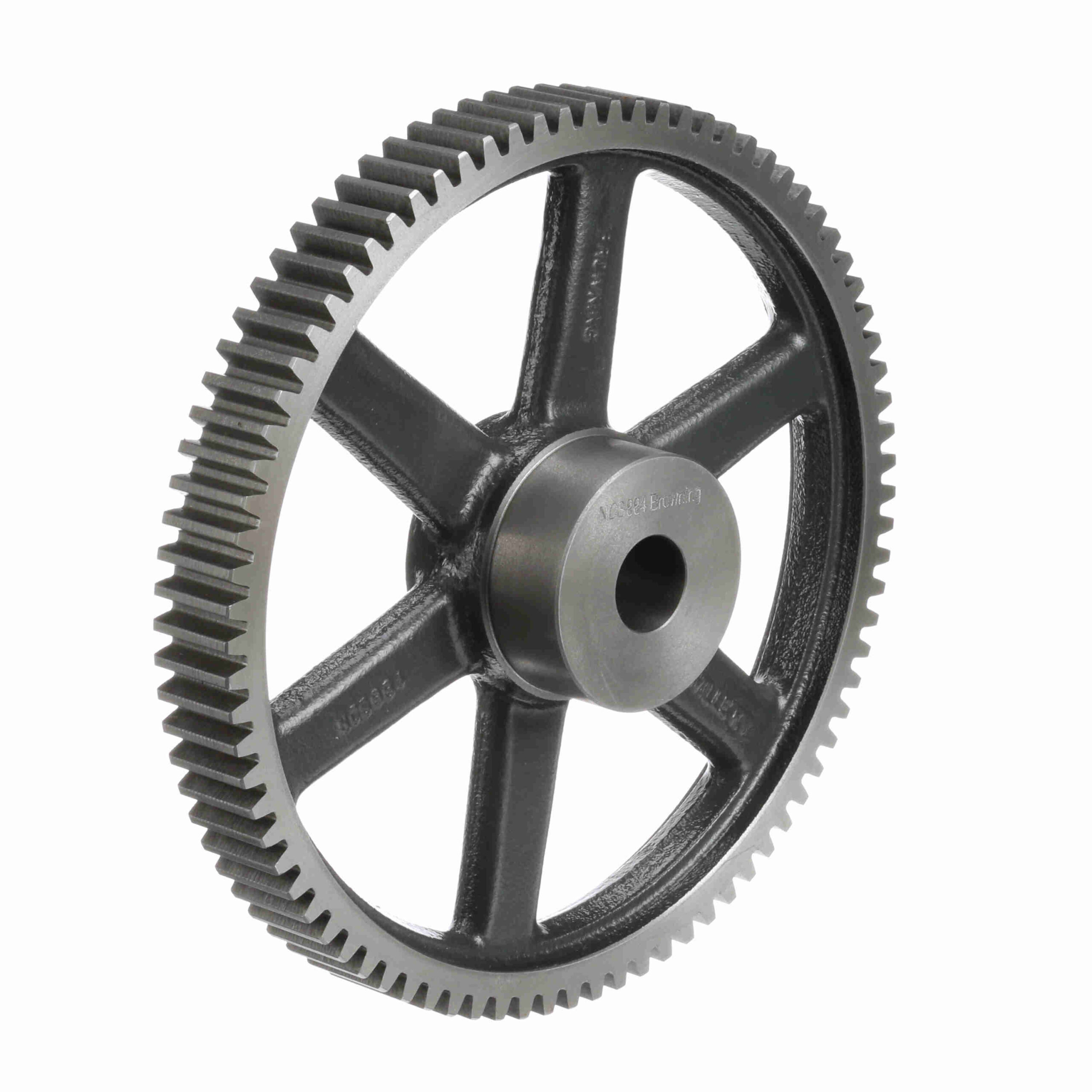

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 8 DP – NCS884
$872.34
Out of stock
Out of stock
| Pressure Angle: | 14.5 | Number of Teeth/Threads: | 84 |
|---|---|---|---|
| Face Width (in): | 1.25 in | Pitch Diameter (in): | 10.5 in |
| Hub Diameter (in): | 3 in | Diametral Pitch: | 8 |
| Outside Diameter (in): | 10.75 in | Material: | Gray Iron |
| Hub Projection (in): | 1.125 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 2.375 in | Bore (Min) (in): | 1.125 in |
| Bore (Max) (in): | 1.8125 in | Bore Size (in): | 1.125 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 2.375 in |
| UPC: | 662289173914 | Weight: | 14.20 LB |
| Packaged Length: | 12.10 Inches | Packaged Width: | 10.60 Inches |
| Packaged Height: | 10.10 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
