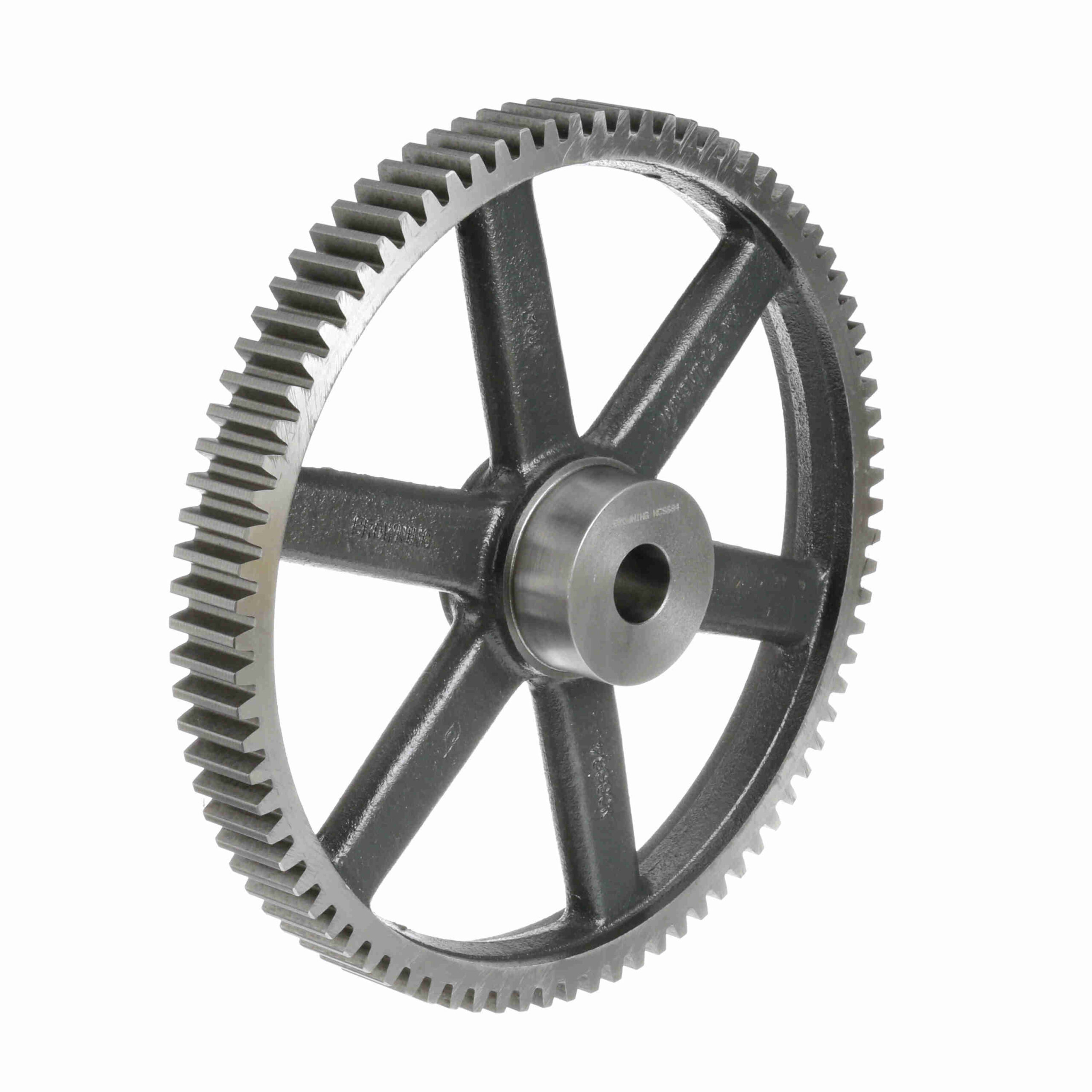

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 6 DP – NCS684

SKU: 1212851 Category: Open Gearing

Out of stock

Product Information
Specifications

Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
Helical Gears are quieter than spur gears and give maximum smoothness on parallel shafts
Browning Gears are rated in accordance with AGMA standards
When you think “Special” Gears – Think Browning

Diametral Pitch:	6	Pitch Diameter (in):	14 in
Outside Diameter (in):	14.33 in	Face Width (in):	1.5 in
Number of Teeth/Threads:	84	Pressure Angle:	14.5
Material:	Gray Iron	Hub Projection (in):	1.25 in
Hub Diameter (in):	3.25 in	Length Through Bore (in):	2.75 in
Bore (Min) (in):	1.25 in	Bore (Max) (in):	2 in
Bore Type:	Minimum Plain Bore	Hub Type:	Type B
Bushing Bore size (in):	1.2500 to 2.0000 in	Product Type:	Spur Gear
Bore Size (in):	1.25 in	Overall Length (in):	2.75 in
Standard Met:	AGMA	Gear Construction:	Spoked
UPC:	662289224272	Weight:	24.92 LB
Packaged Length:	14.75 Inches	Packaged Width:	14.75 Inches
Packaged Height:	3.13 Inches	HTC:	8483.40.9000
Country of Origin:	Mexico
