- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS16160

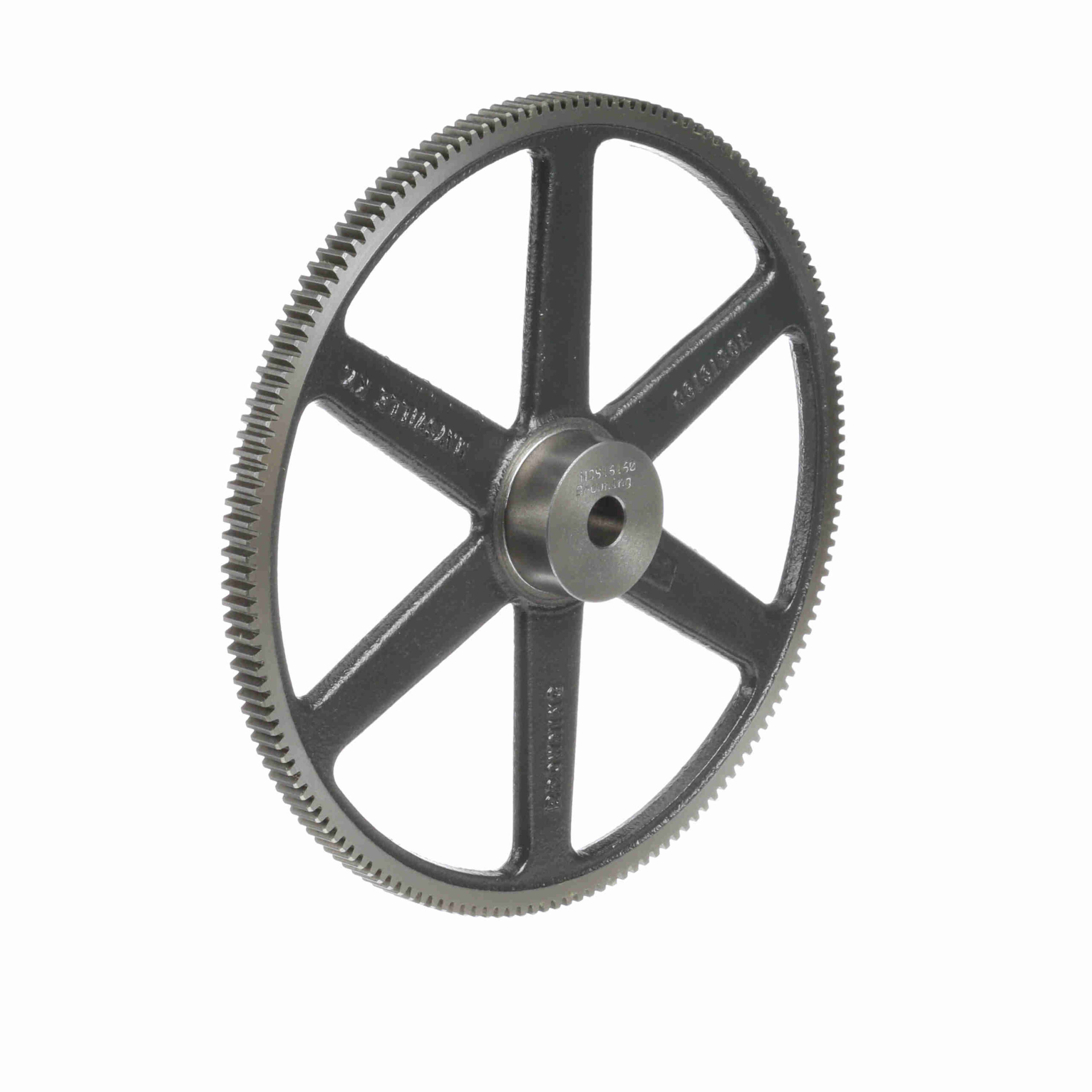

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 16 DP – NCS16160
$518.54
Out of stock
Out of stock
| Diametral Pitch: | 16 | Outside Diameter (in): | 10.12 in |
|---|---|---|---|
| Material: | Gray Iron | Number of Teeth/Threads: | 160 |
| Pressure Angle: | 14.5 | Pitch Diameter (in): | 10 in |
| Hub Diameter (in): | 2 in | Hub Projection (in): | 0.75 in |
| Face Width (in): | 0.5 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 1.25 in | Bore (Min) (in): | 0.625 in |
| Bore (Max) (in): | 1.25 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.625 in | Hub Type: | Type B |
| Overall Length (in): | 1.25 in | Standard Met: | AGMA |
| UPC: | 662289212644 | Weight: | 4.55 LB |
| Packaged Length: | 10.50 Inches | Packaged Width: | 10.30 Inches |
| Packaged Height: | 1.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
