- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS1264

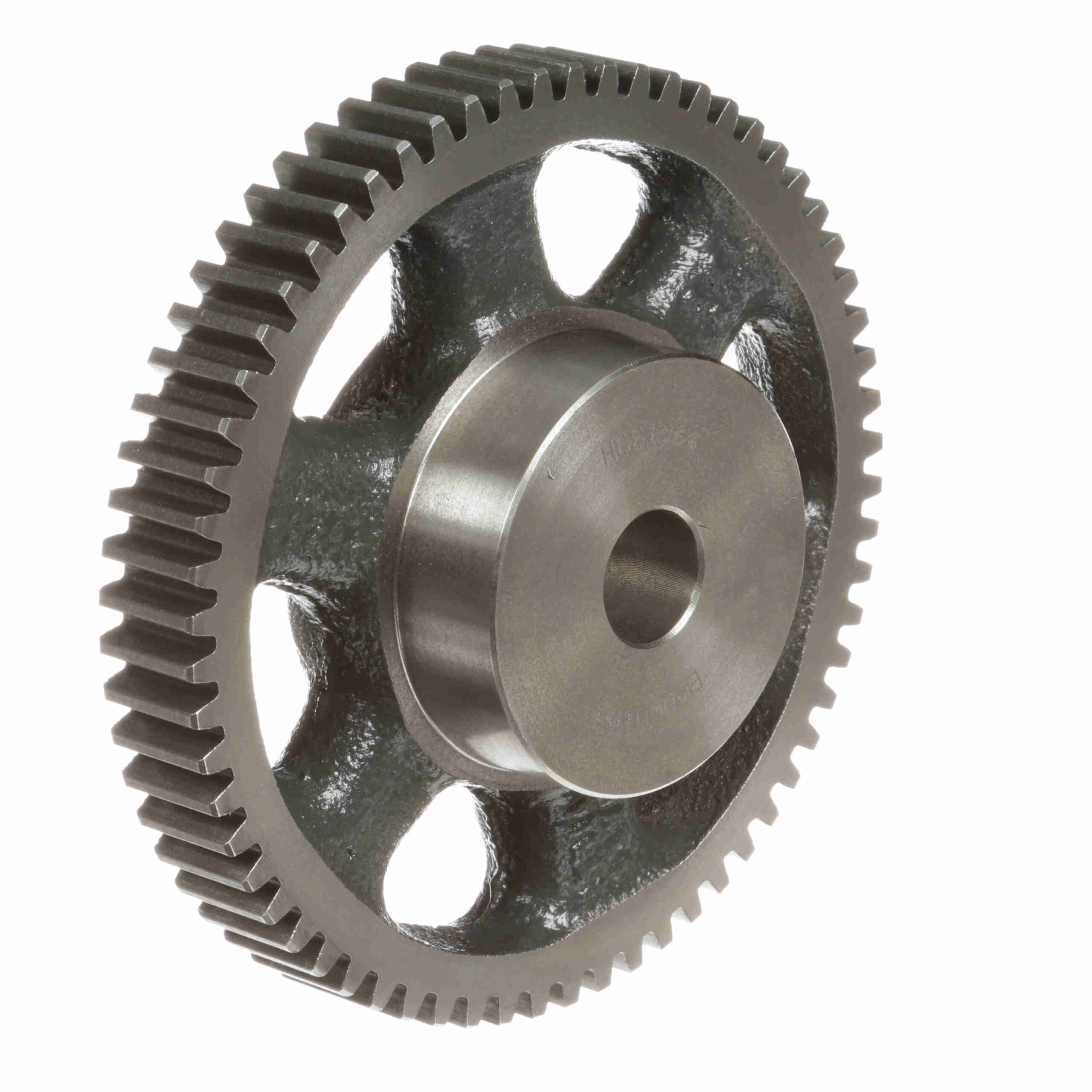

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 12 DP – NCS1264
Out of stock
| Material: | Gray Iron | Face Width (in): | 0.75 in |
|---|---|---|---|
| Outside Diameter (in): | 5.5 in | Diametral Pitch: | 12 |
| Hub Projection (in): | 0.75 in | Pressure Angle: | 14.5 |
| Number of Teeth/Threads: | 64 | Hub Diameter (in): | 2.5 in |
| Pitch Diameter (in): | 5.333 in | Length Through Bore (in): | 1.5 in |
| Bore (Max) (in): | 1.5 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 0.75 in | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.5 in |
| UPC: | 662289272921 | Weight: | 3.98 LB |
| Packaged Length: | 6.10 Inches | Packaged Width: | 6.10 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
