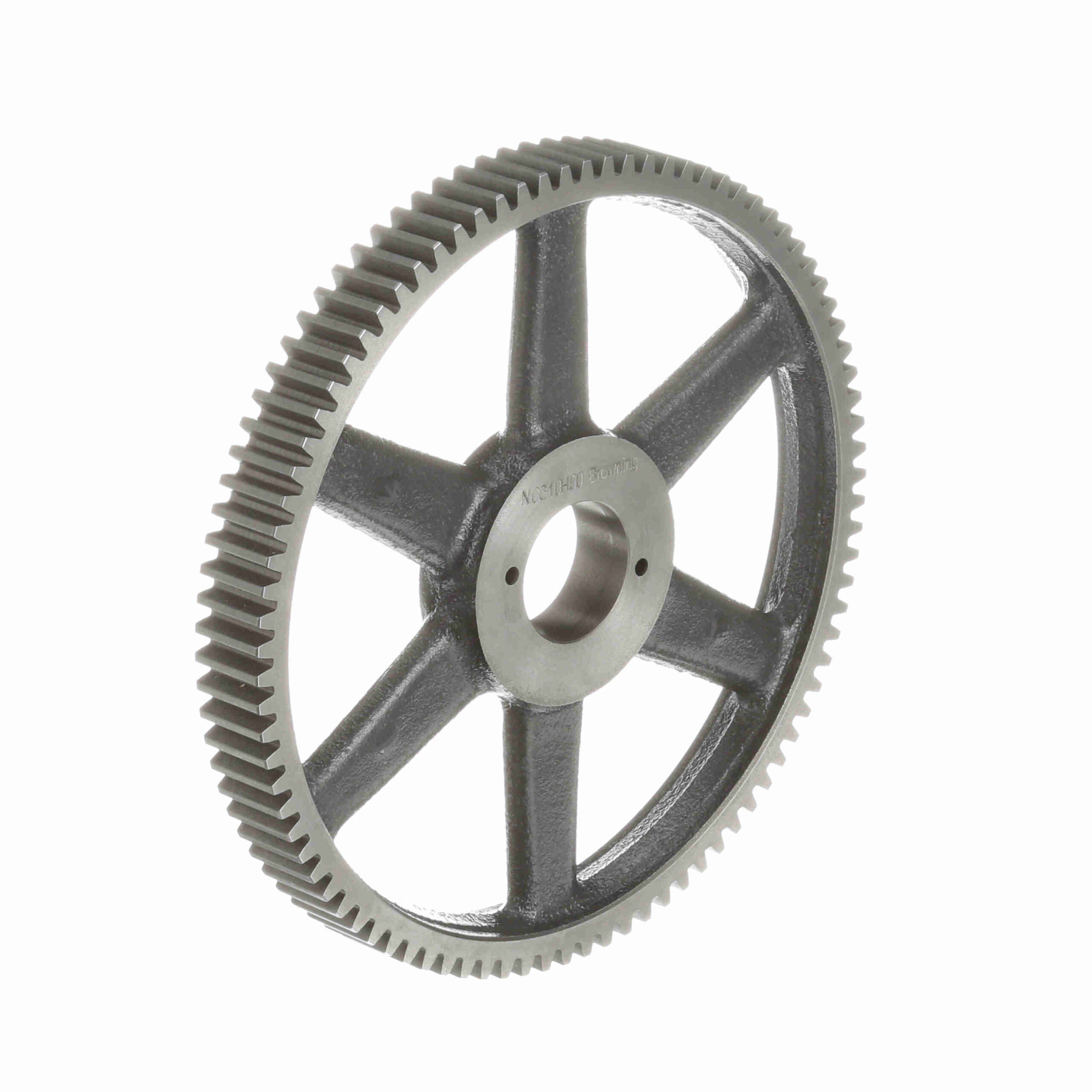

Browning Cast Iron Bushed Bore Spur Gear – 14.5 PA 10 DP – NCS10P140

SKU: 1214063 Category: Open Gearing

Out of stock

Product Information
Specifications

Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
Browning Gears are rated in accordance with AGMA standards
Browning Gears are rated in accordance with AGMA standards
When you think “Special” Gears – Think Browning

Pitch Diameter (in):	14 in	Material:	Gray Iron
Face Width (in):	1 in	Number of Teeth/Threads:	140
Outside Diameter (in):	14.2 in	Diametral Pitch:	10
Pressure Angle:	14.5	Length Through Bore (in):	2.1875 in
Bore (Min) (in):	0.5 in	Bore Type:	Bushed Bore
Bore (Max) (in):	1.75 in	Bore Size (in):	0.5 in
Product Type:	Spur Gear	Hub Type:	P1
Standard Met:	AGMA	Overall Length (in):	2.1875 in
UPC:	662289135547	Weight:	13.04 LB
Packaged Length:	14.31 Inches	Packaged Width:	14.31 Inches
Packaged Height:	1.56 Inches	HTC:	8483.40.9000
Country of Origin:	Mexico
