NCG835

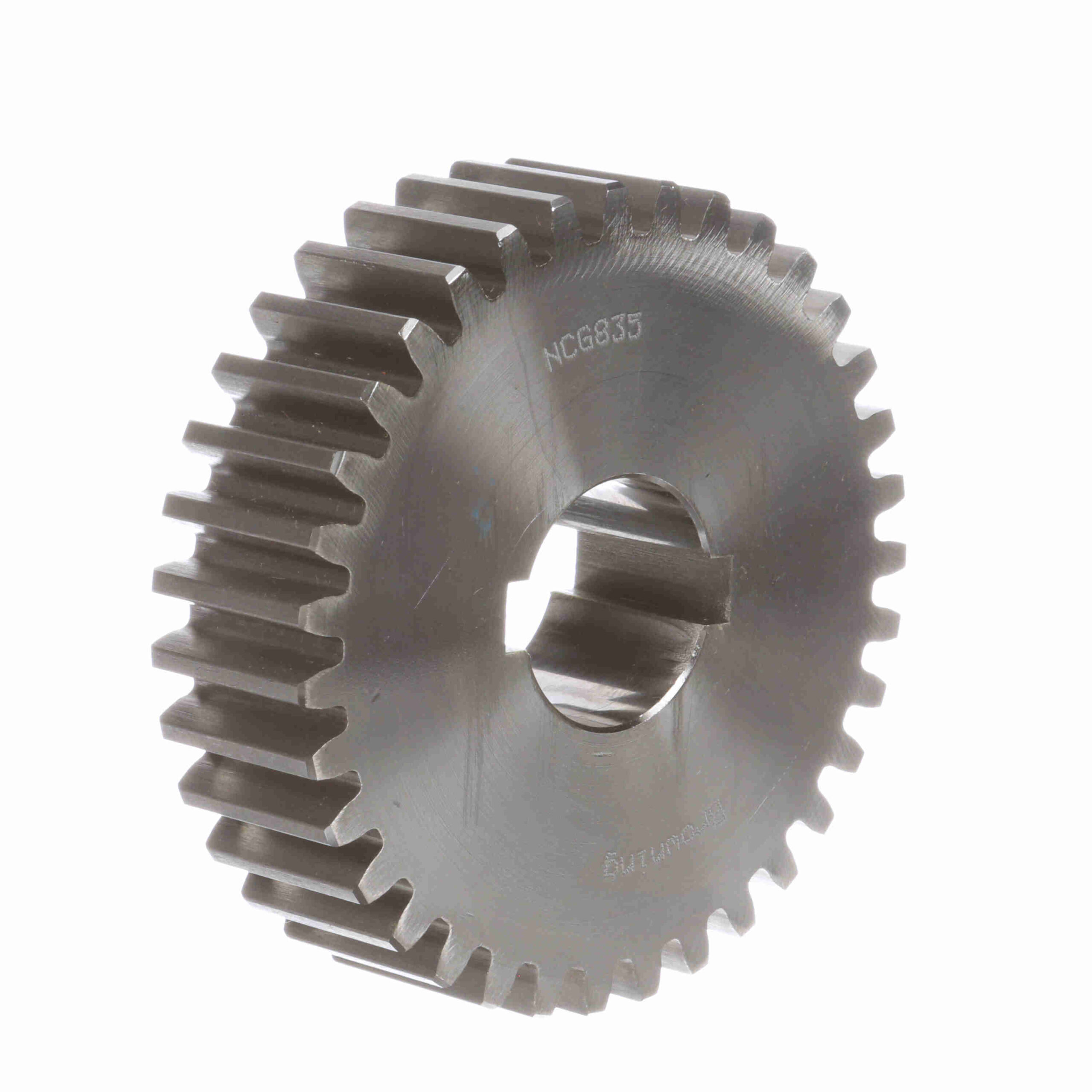

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 8 DP – NCG835
Out of stock
| Outside Diameter (in): | 4.62 in | Diametral Pitch: | 8 |
|---|---|---|---|
| Pitch Diameter (in): | 4.375 in | Face Width (in): | 1.25 in |
| Number of Teeth/Threads: | 35 | Material: | Steel |
| Pressure Angle: | 14.5 | Bore (Min) (in): | 1.125 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 1.25 in |
| Bore (Max) (in): | 1.375 in | Hub Type: | Type A |
| Bore Size (in): | 1.125 in | Product Type: | Change Gear |
| Gear Construction: | Plain | UPC: | 662289131846 |
| Weight: | 4.72 LB | Packaged Length: | 5.70 Inches |
| Packaged Width: | 5.40 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
