- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1678

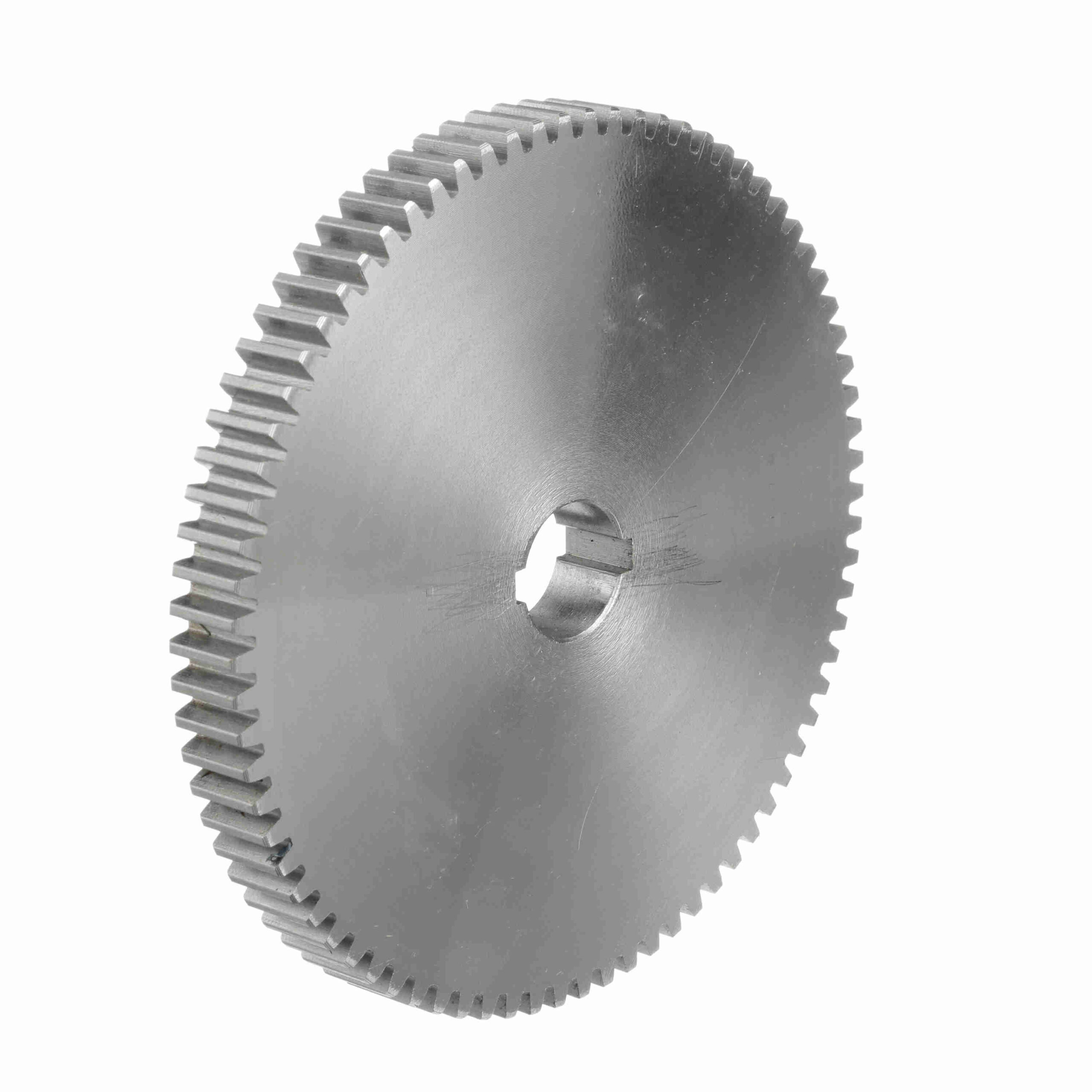

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG1678
$294.60
Out of stock
Out of stock
| Material: | Steel | Diametral Pitch: | 16 |
|---|---|---|---|
| Face Width (in): | 0.5 in | Number of Teeth/Threads: | 78 |
| Pressure Angle: | 14.5 | Pitch Diameter (in): | 4.875 in |
| Outside Diameter (in): | 5 in | Length Through Bore (in): | 0.5 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 0.75 in |
| Bore (Min) (in): | 0.75 in | Product Type: | Change Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type A |
| UPC: | 662289149421 | Weight: | 2.64 LB |
| Packaged Length: | 5.80 Inches | Packaged Width: | 5.70 Inches |
| Packaged Height: | 1.00 Inches |
