- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1677

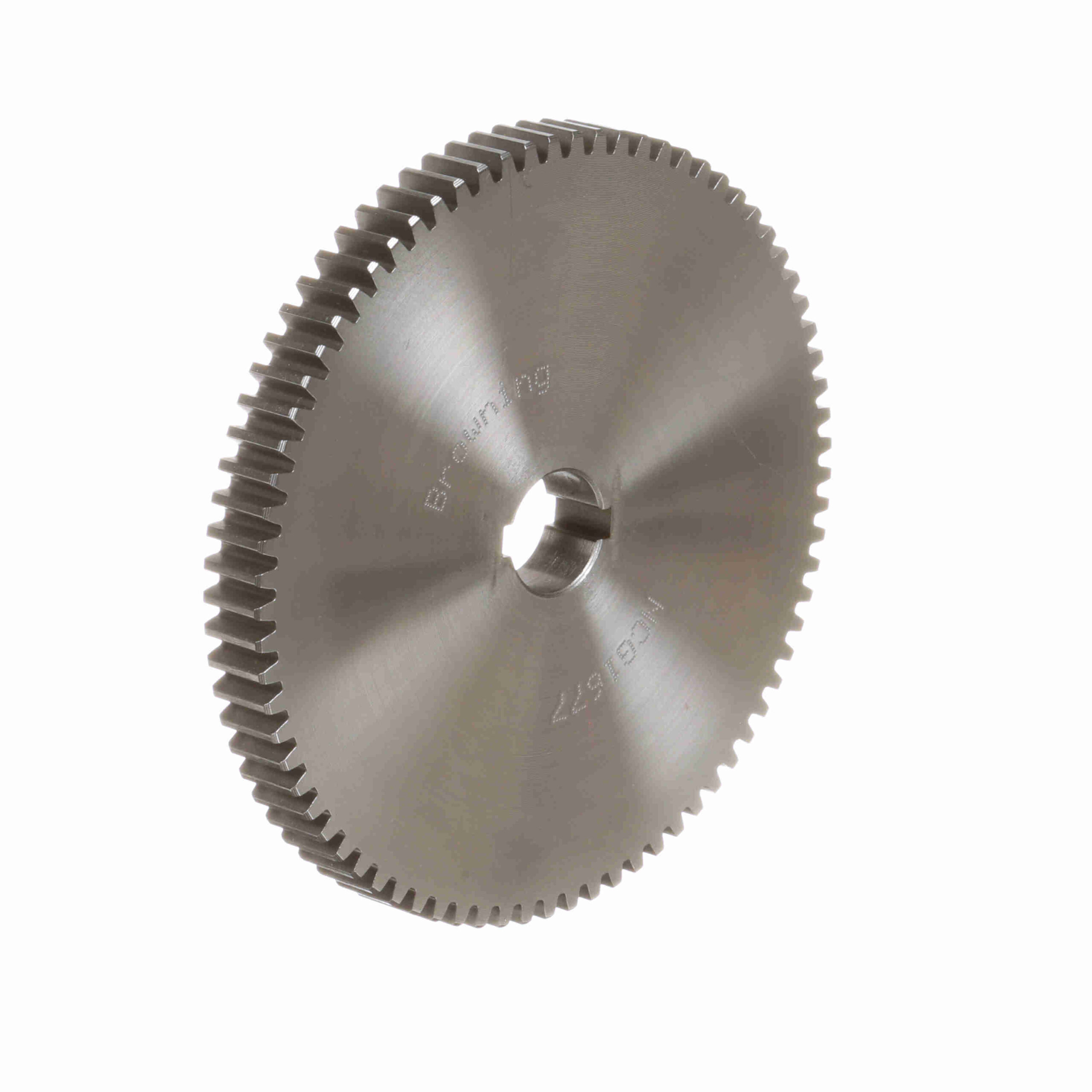

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG1677
Out of stock
| Face Width (in): | 0.5 in | Pressure Angle: | 14.5 |
|---|---|---|---|
| Pitch Diameter (in): | 4.813 in | Material: | Steel |
| Number of Teeth/Threads: | 77 | Diametral Pitch: | 16 |
| Outside Diameter (in): | 4.93 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 0.5 in |
| Bore (Max) (in): | 0.75 in | Bore Size (in): | 0.75 in |
| Product Type: | Change Gear | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289299409 |
| Weight: | 2.56 LB | Packaged Length: | 5.60 Inches |
| Packaged Width: | 5.60 Inches | Packaged Height: | 1.30 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
