- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG16102

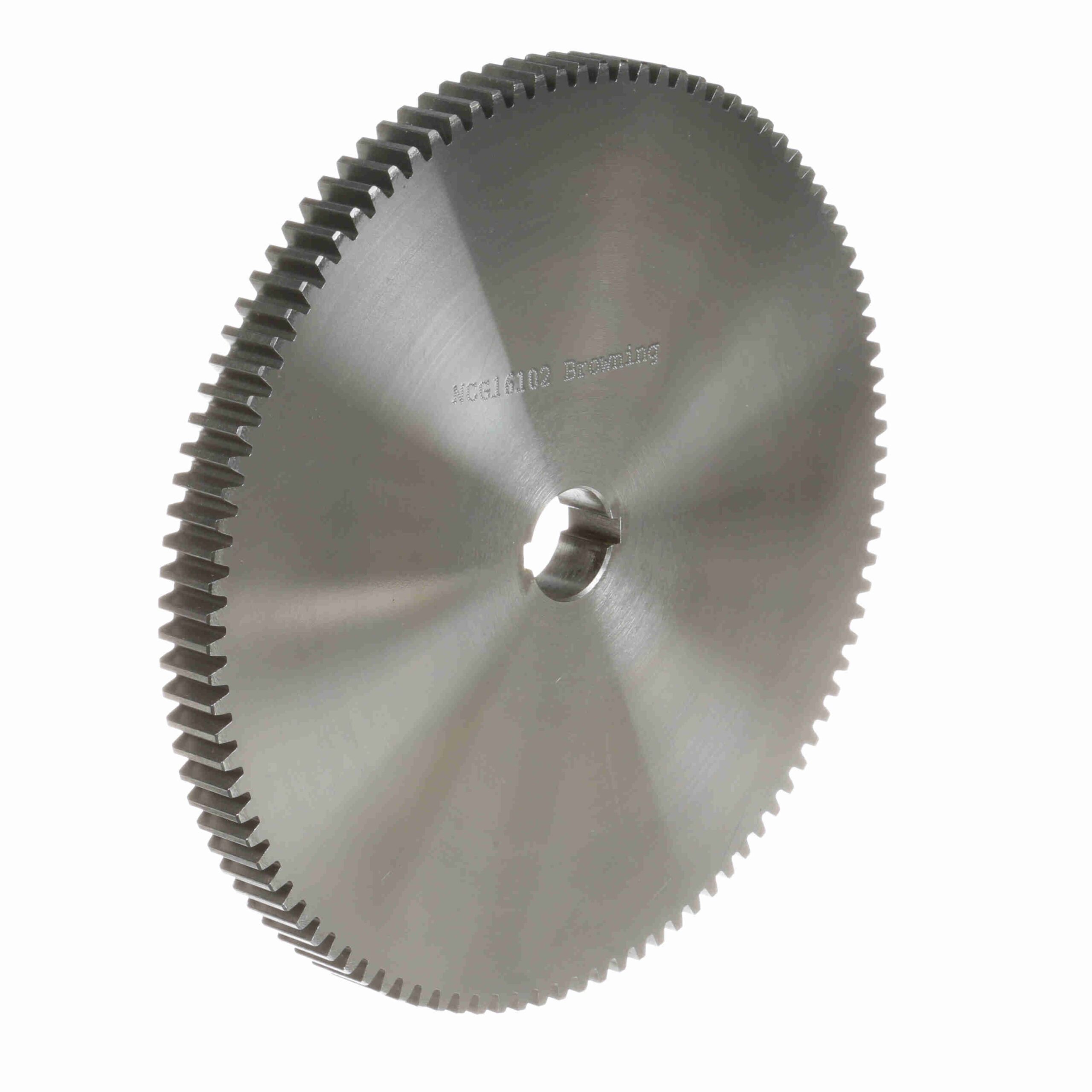

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG16102
$346.92
Out of stock
Out of stock
| Pressure Angle: | 14.5 | Material: | Steel |
|---|---|---|---|
| Outside Diameter (in): | 6.5 in | Face Width (in): | 0.5 in |
| Diametral Pitch: | 16 | Number of Teeth/Threads: | 102 |
| Pitch Diameter (in): | 6.375 in | Length Through Bore (in): | 0.5 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 0.75 in |
| Bore (Min) (in): | 0.75 in | Product Type: | Change Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289239672 |
| Weight: | 4.95 LB | Packaged Length: | 7.40 Inches |
| Packaged Width: | 7.40 Inches | Packaged Height: | 1.00 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
