- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1243

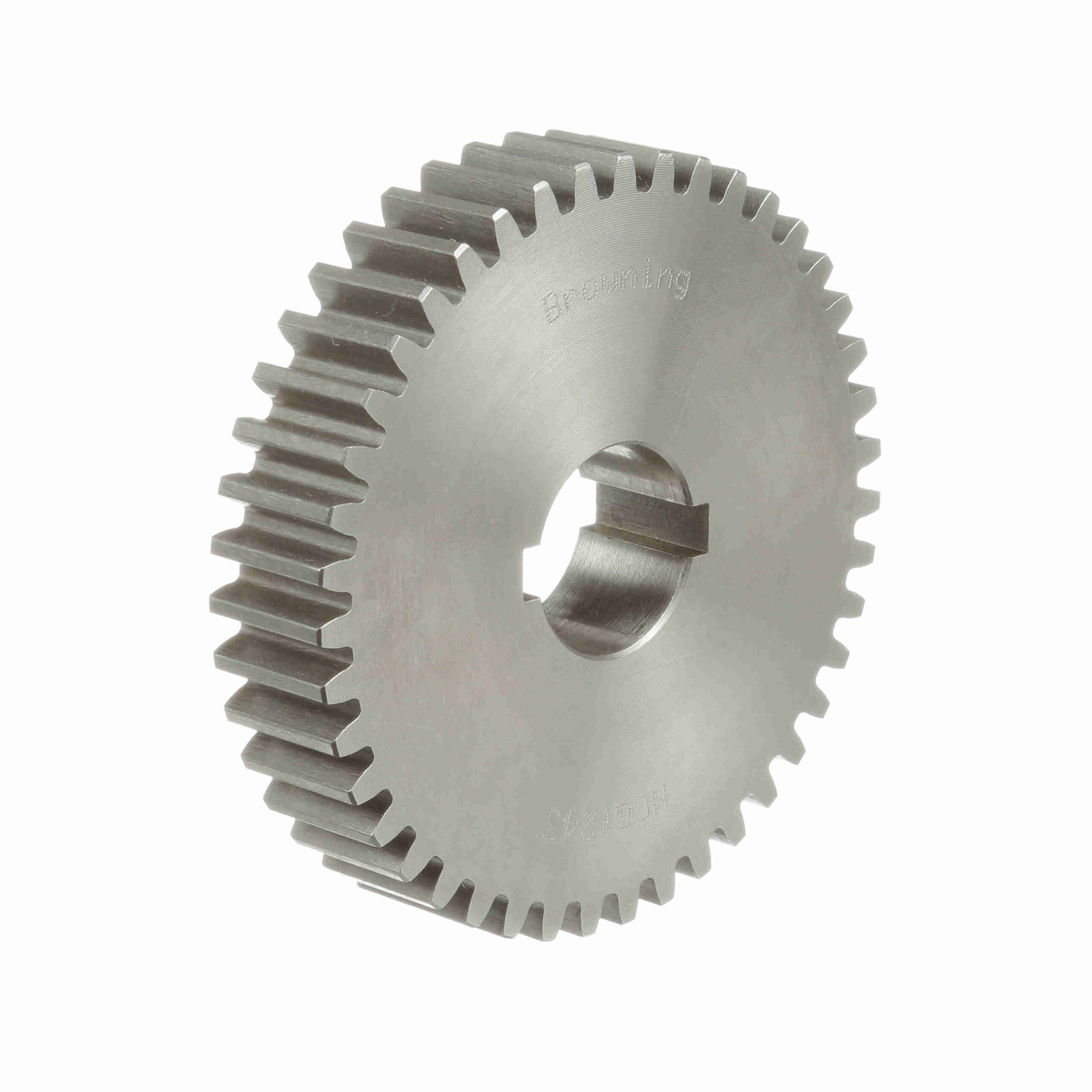

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 12 DP – NCG1243
Out of stock
| Pressure Angle: | 14.5 | Material: | Steel |
|---|---|---|---|
| Face Width (in): | 0.75 in | Outside Diameter (in): | 3.75 in |
| Diametral Pitch: | 12 | Number of Teeth/Threads: | 43 |
| Pitch Diameter (in): | 3.583 in | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 0.75 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1 in | Product Type: | Change Gear |
| Bore Size (in): | 1 in | Hub Type: | Type A |
| UPC: | 662289280179 | Weight: | 2.00 LB |
| Packaged Length: | 4.50 Inches | Packaged Width: | 4.20 Inches |
| Packaged Height: | 1.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
