- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Helical Gears are quieter than spur gears and give maximum smoothness on parallel shafts
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1075

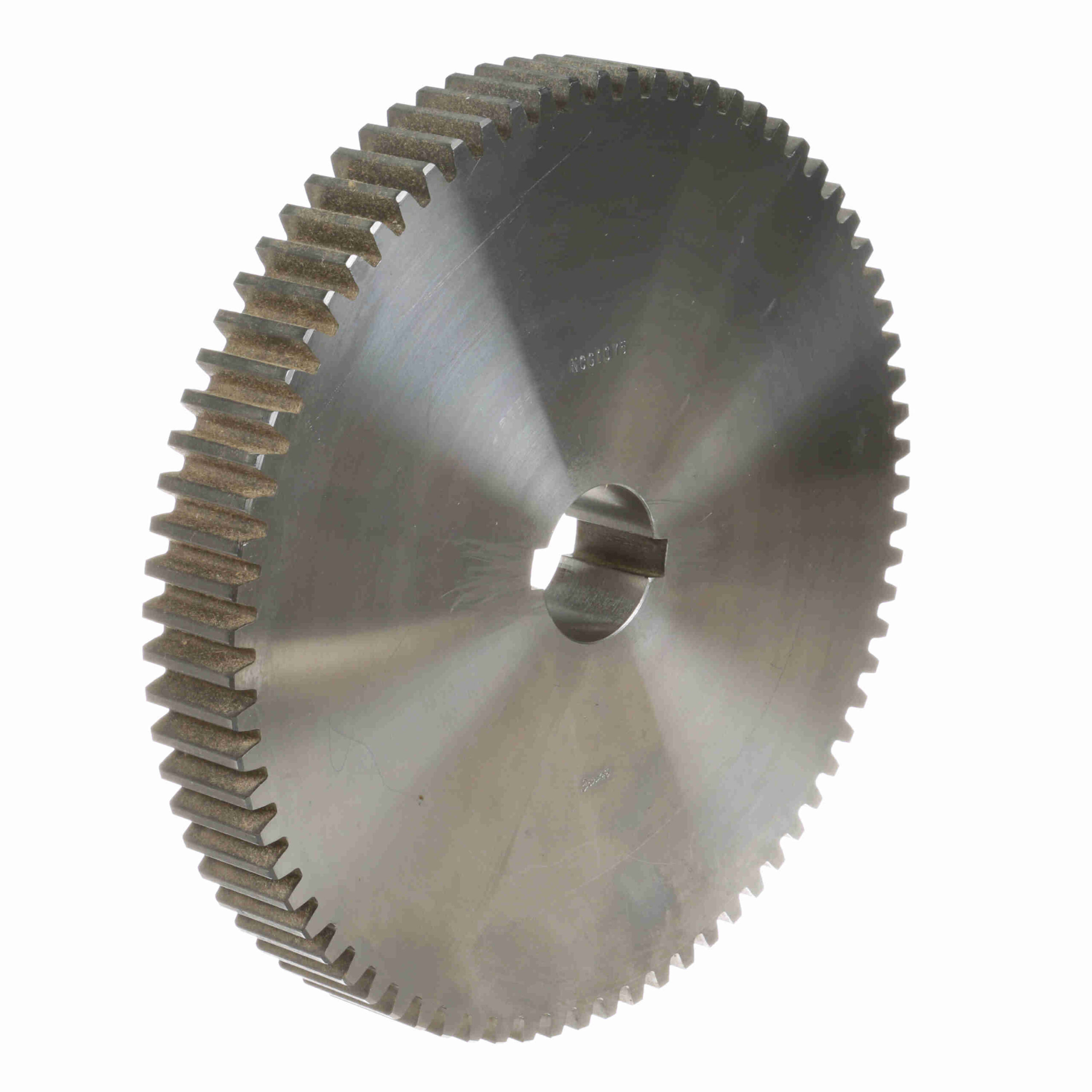

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 10 DP – NCG1075
Out of stock
| Material: | Steel | Face Width (in): | 1 in |
|---|---|---|---|
| Diametral Pitch: | 10 | Number of Teeth/Threads: | 75 |
| Outside Diameter (in): | 7.7 in | Pressure Angle: | 14.5 |
| Pitch Diameter (in): | 7.5 in | Bore (Max) (in): | 1.25 in |
| Length Through Bore (in): | 1 in | Bore (Min) (in): | 1 in |
| Bore Type: | Minimum Plain Bore | Hub Type: | Type A |
| Bore Size (in): | 1 in | Product Type: | Change Gear |
| Gear Construction: | Plain | UPC: | 662289301478 |
| Weight: | 12.16 LB | Packaged Length: | 8.50 Inches |
| Packaged Width: | 8.20 Inches | Packaged Height: | 1.00 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
