- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1052

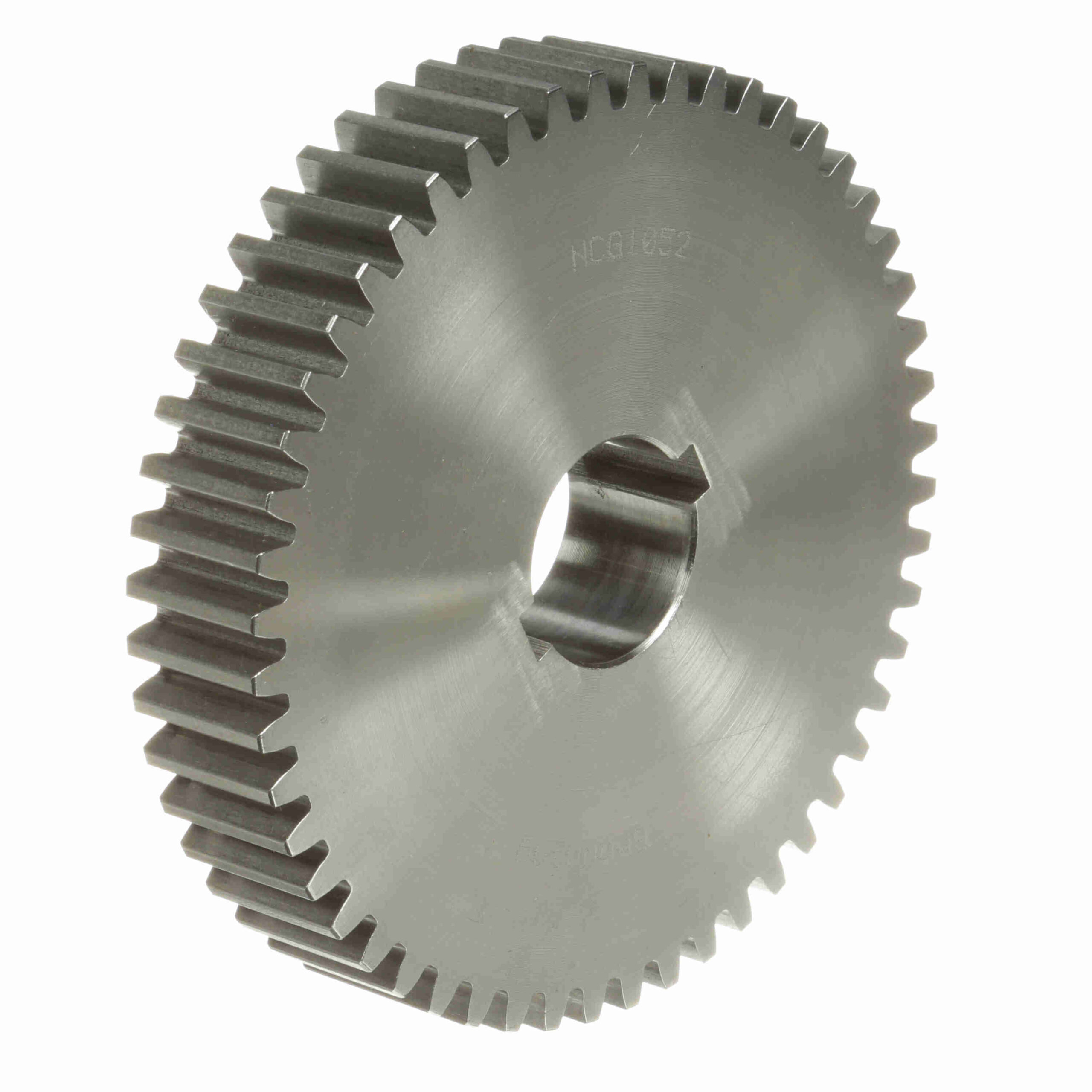

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 10 DP – NCG1052
Out of stock
| Outside Diameter (in): | 5.4 in | Number of Teeth/Threads: | 52 |
|---|---|---|---|
| Face Width (in): | 1 in | Pitch Diameter (in): | 5.2 in |
| Pressure Angle: | 14.5 | Material: | Steel |
| Diametral Pitch: | 10 | Length Through Bore (in): | 1 in |
| Bore (Min) (in): | 1.25 in | Bore (Max) (in): | 1.25 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Change Gear |
| Bore Size (in): | 1.25 in | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289261192 |
| Weight: | 5.66 LB | Packaged Length: | 6.60 Inches |
| Packaged Width: | 6.70 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
