- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
N 5 1/2

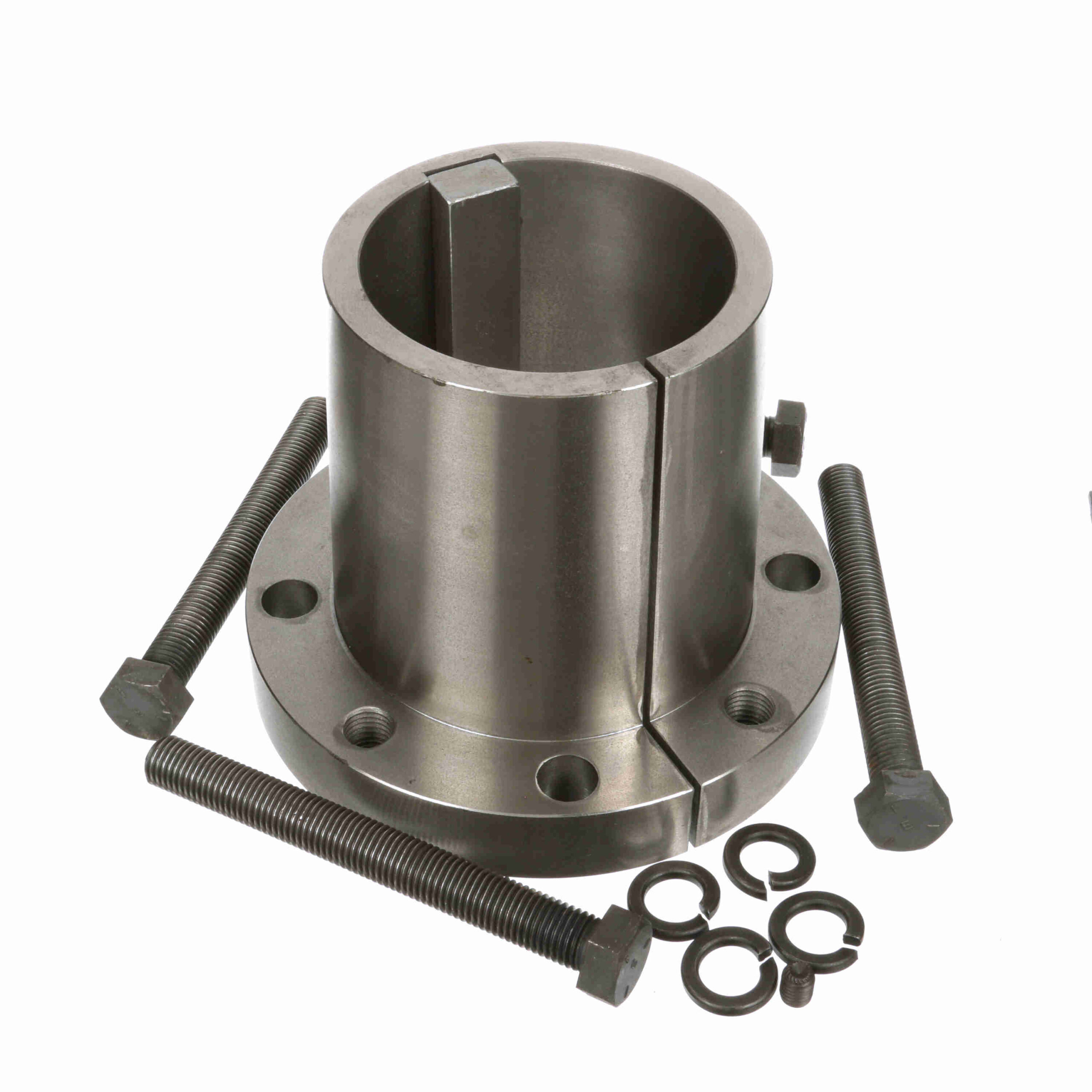

Browning Q-D Bushing – Inch Bore Type – N 5 1/2
$3,914.06
Out of stock
Out of stock
| Total Length (in): | 8.14 in | Outside Diameter (in): | 10 in |
|---|---|---|---|
| Bore Type: | Inch | Product Type: | Q-D Bushing |
| Keyway: | 1 1/4 x 5/8 | Cap Screws (No.): | 4 |
| Wrench Torque (ft.-lbs.): | 300 | Bushing Type: | N |
| Cap Screws (Size): | 7/8-9 x 8 | Length Through Bore (in): | 8.14 in |
| Compatible Bore Size [Max] (in): | 5.5 in | Torque Capacity (in-lb): | 150, 000 |
| Mounting Type: | Conventional | Cap Screws (Bolt Circle): | 8.5 |
| Model Name: | QD-N_Bushing_Master | Bore Size (in): | 5.5 in |
| Material: | Gray Iron - G3033 | Barrel Length: | 6.64 in |
| Flange Thickness: | 1.5 in | Barrel Diameter: | 7 in |
| UPC: | 662289381760 | Weight: | 49.33 LB |
| Packaged Length: | 12.1 Inches | Packaged Width: | 10.6 Inches |
| Packaged Height: | 10 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
