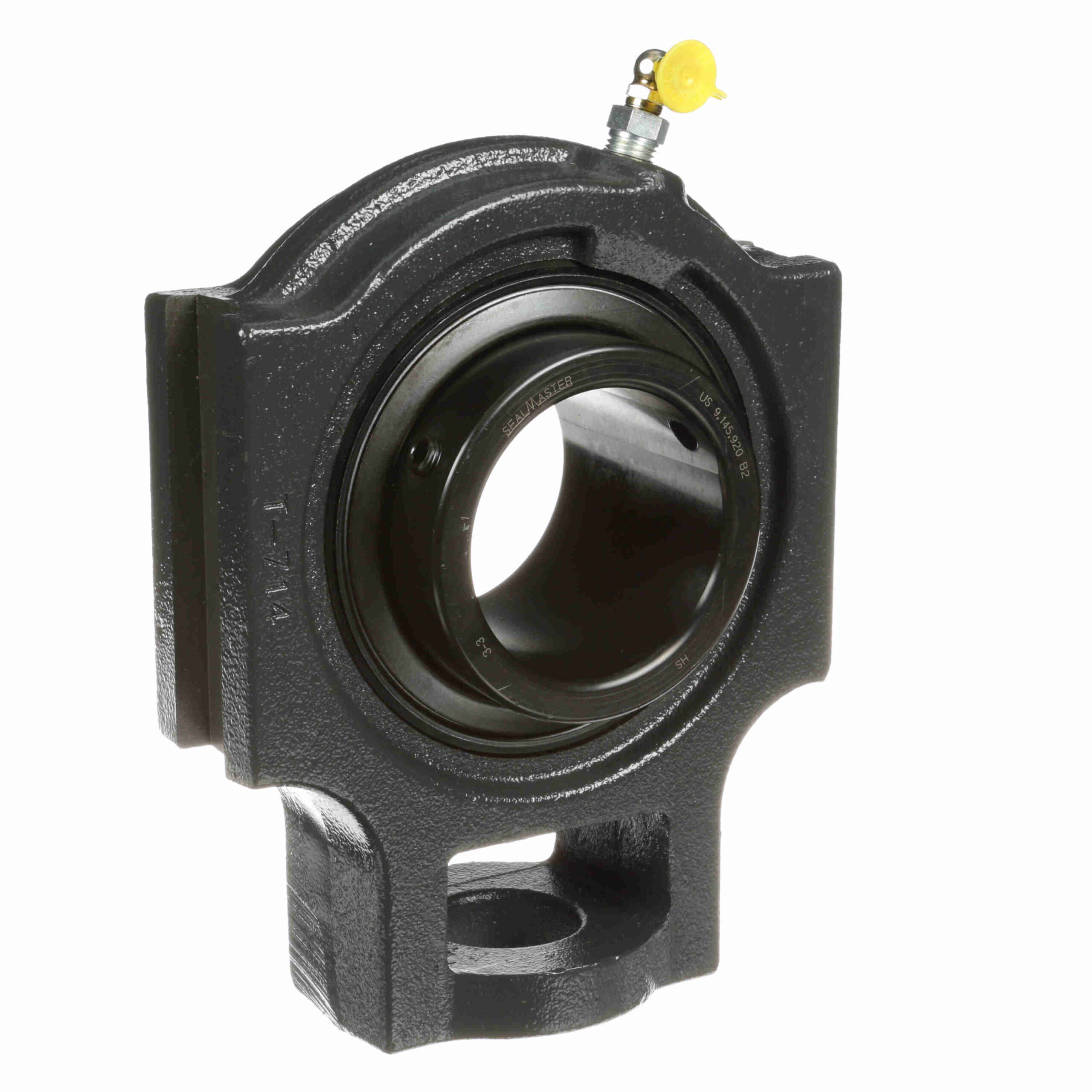

MST-48

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel, Black Oxided
Retainer Type:	Land Riding Retainer	Speed (Max):	2250
Duty Series:	Medium Duty	Seal Type:	Felt Labyrinth Seal
Housing Type:	Take-Up Block, Wide Slot	Insert No.:	3-3
Measure Units:	Inch	Expansion:	No
Housing Material:	Cast Iron	Rolling Element:	Ball Bearing
Bore Shape:	Straight	Inner-Race Heat-Treat Method:	Zone-Hardened
Relubricatable:	Yes	Frame Type:	Center Pull Wide Slot
Lubrication:	Lithium Complex NLGI 2 Grease	Locking Type:	Setscrew
Housing Construction:	One Piece	Internal Clearance:	Standard
Radial Dynamic Load Capacity (lb):	17, 412	Misalignment:	±2.0° Misalignment - Static Only
Housing Color:	Gray	Misalignment Type:	Static Only
End Cap:	No	Platform:	Gold Line Ball Bearing
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Series:	MST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461001431	Weight:	21.65 LB
Packaged Length:	10.7 Inches	Packaged Width:	7.63 Inches
Packaged Height:	5 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
