- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

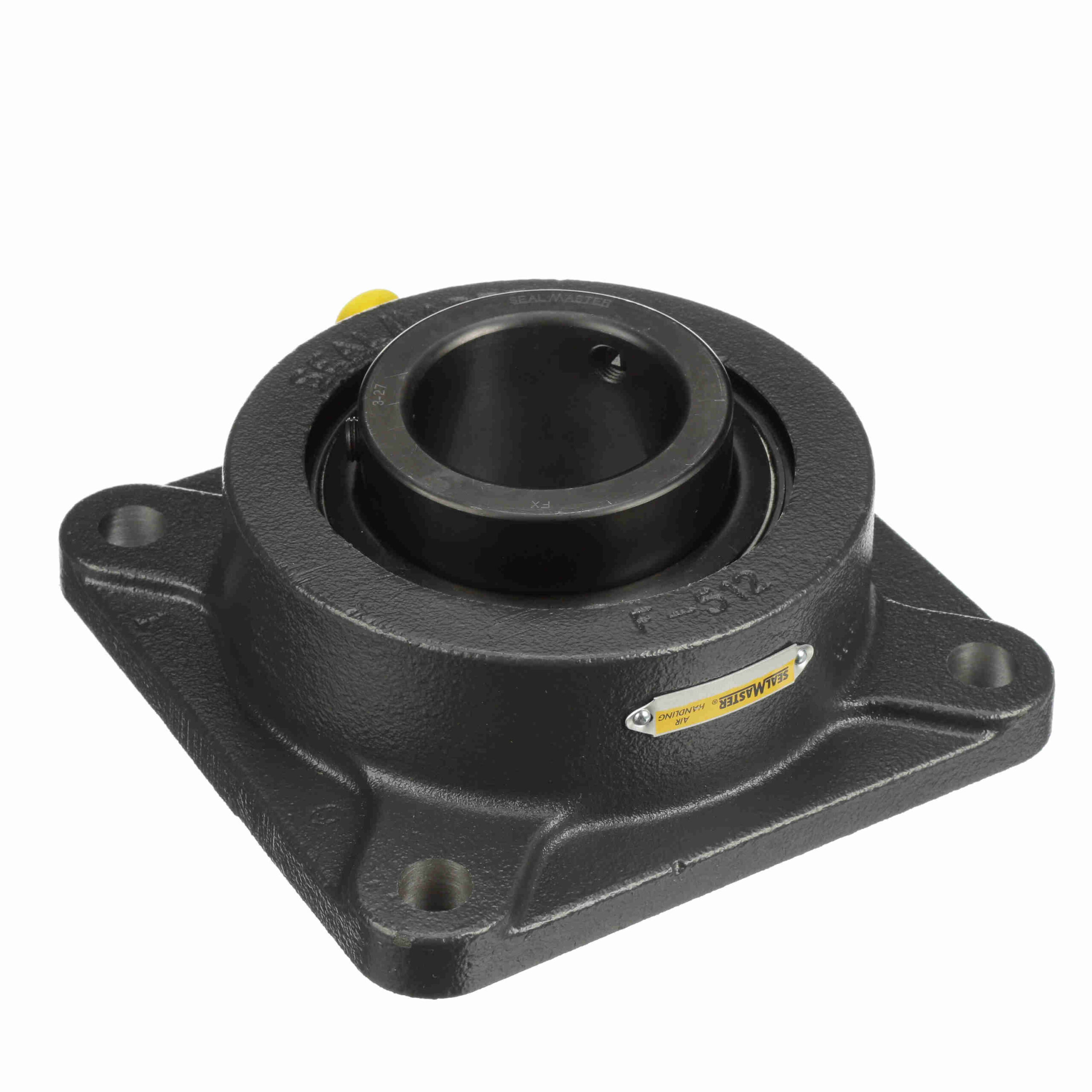

MSF-23 CXU
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – MSF-23 CXU
Out of stock
| Seal Type: | Felt Labyrinth Seal | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Bore Shape: | Straight | Measure Units: | Inch |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Pilot Configuration: | No Pilot | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Internal Clearance: | Standard |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Platform: | Air Handling | Options: | Air Handling Housing Fit, Noise Tested |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| T Core: | 3.5 | Housing Type: | Flange, Four Bolt |
| Fixed vs. Expansion: | Fixed | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Housing Style: | Flange Block | Maximum Speed (RPM): | 4150 rpm |
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Locking Type: | Setscrew | Duty/Series: | Medium Duty |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | 42795 |
| Maximum Operating Temperature (F): | 220 °F | Ability to Relubricate: | Yes |
| UPC: | 662461072097 | Weight: | 5.20 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 5.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
