- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MSC-48

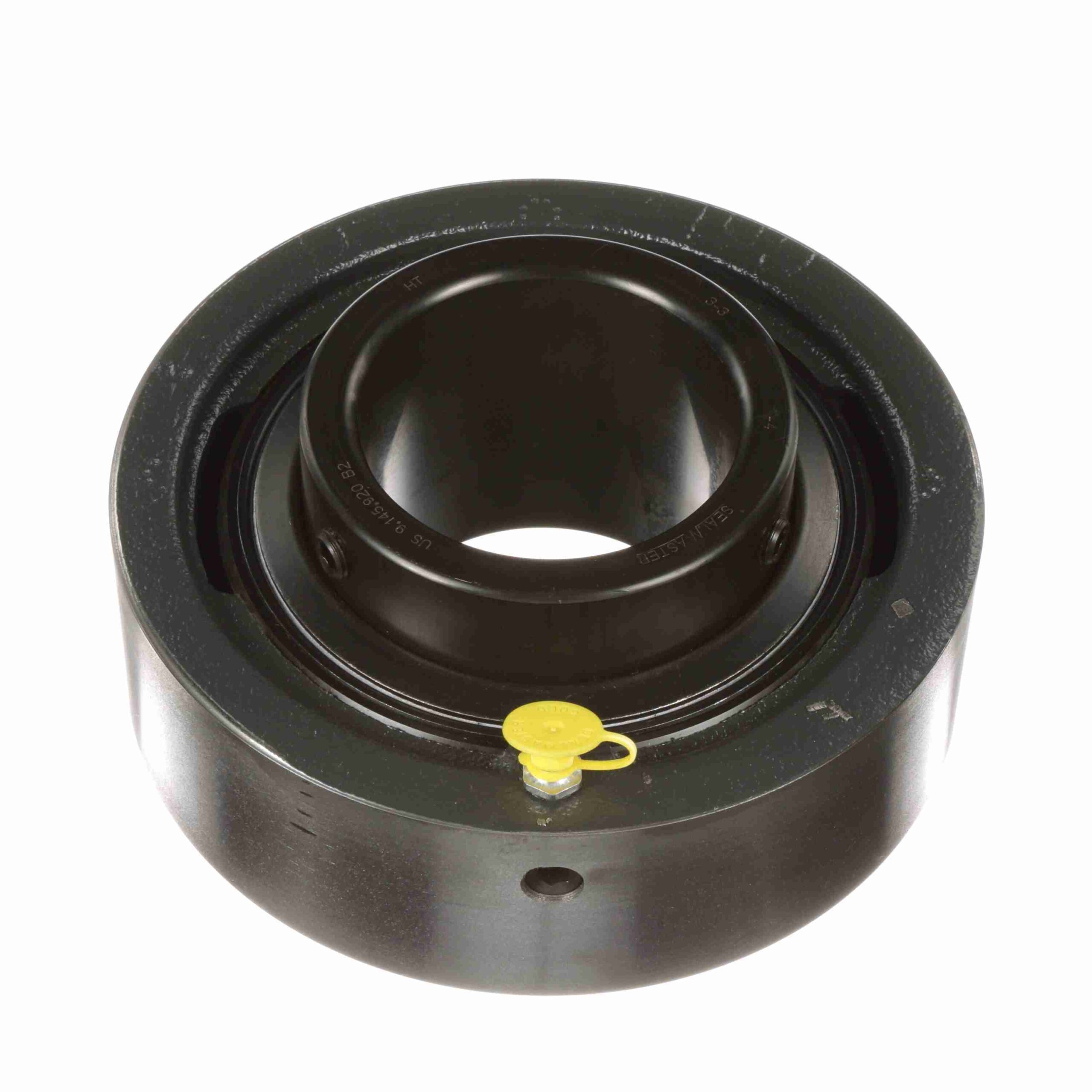

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MSC-48
$858.03
Out of stock
Out of stock
| Housing Material: | Cast Iron | Insert No.: | 3-3 |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Rolling Element: | Ball Bearing |
| Seal Type: | Felt Labyrinth Seal | Retainer Type: | Land Riding Retainer |
| Maximum Operating Temperature: | 220 °F | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Duty Series: | Medium Duty | Housing Type: | Cartridge; Cylindrical |
| Expansion: | No | Measure Units: | Inch |
| Speed (Max): | 2250 | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Radial Dynamic Load Capacity (lb): | 17, 412 |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±2.0° Misalignment - Static Only | Bore Shape: | Straight |
| Relubricatable: | Yes | Bearing Insert Coating: | Black Oxide Coated |
| Housing Color: | Gray | End Cap: | No |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 13, 174 | Series: | MSC |
| Cage Material: | Brass | UPC: | 662461014431 |
| Weight: | 16.60 LB | Packaged Length: | 7.19 Inches |
| Packaged Width: | 7 Inches | Packaged Height: | 3.31 Inches |
| HTC: | 8482.10.5056 | Country of Origin: | United States of America |
