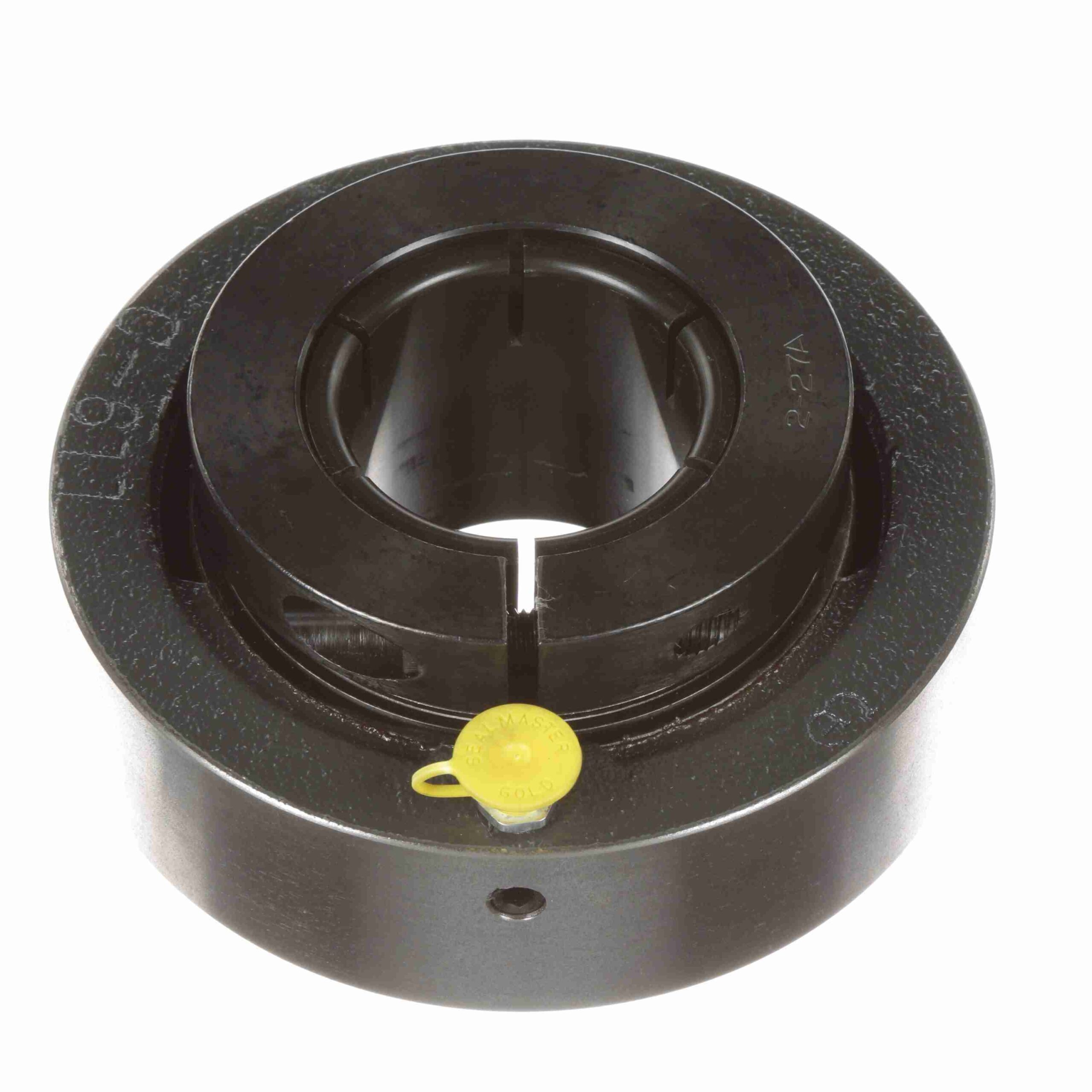

MSC-35T

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Expansion:	No	Housing Type:	Cartridge, Cylindrical
Maximum Operating Temperature:	220 °F	Insert No.:	3-23T
Inner-Race Heat-Treat Method:	Zone-Hardened	Housing Material:	Cast Iron
Insert Material:	52100 Bearing Steel, Black Oxided	Rolling Element:	Ball Bearing
Duty Series:	Medium Duty	Retainer Type:	Land Riding Retainer
Seal Type:	Felt Labyrinth Seal	Measure Units:	Inch
Lubrication:	Lithium Complex NLGI 2 Grease	Speed (Max):	4100
Locking Type:	Concentric	Bore Shape:	Straight
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	11, 789
Internal Clearance:	Standard	Misalignment:	±2.0° Misalignment - Static Only
Relubricatable:	Yes	Housing Color:	Gray
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	End Cap:	No
Replaceable Insert:	Yes	Misalignment Type:	Static Only
Radial Static Load Capacity (lb):	8, 150	Cage Material:	PPS
Series:	MSC-T	UPC:	662461032091
Weight:	10.52 LB	Packaged Length:	6.88 Inches
Packaged Width:	6.88 Inches	Packaged Height:	2.63 Inches
HTC:	8482.10.5056	Country of Origin:	Mexico
