- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MSC-31

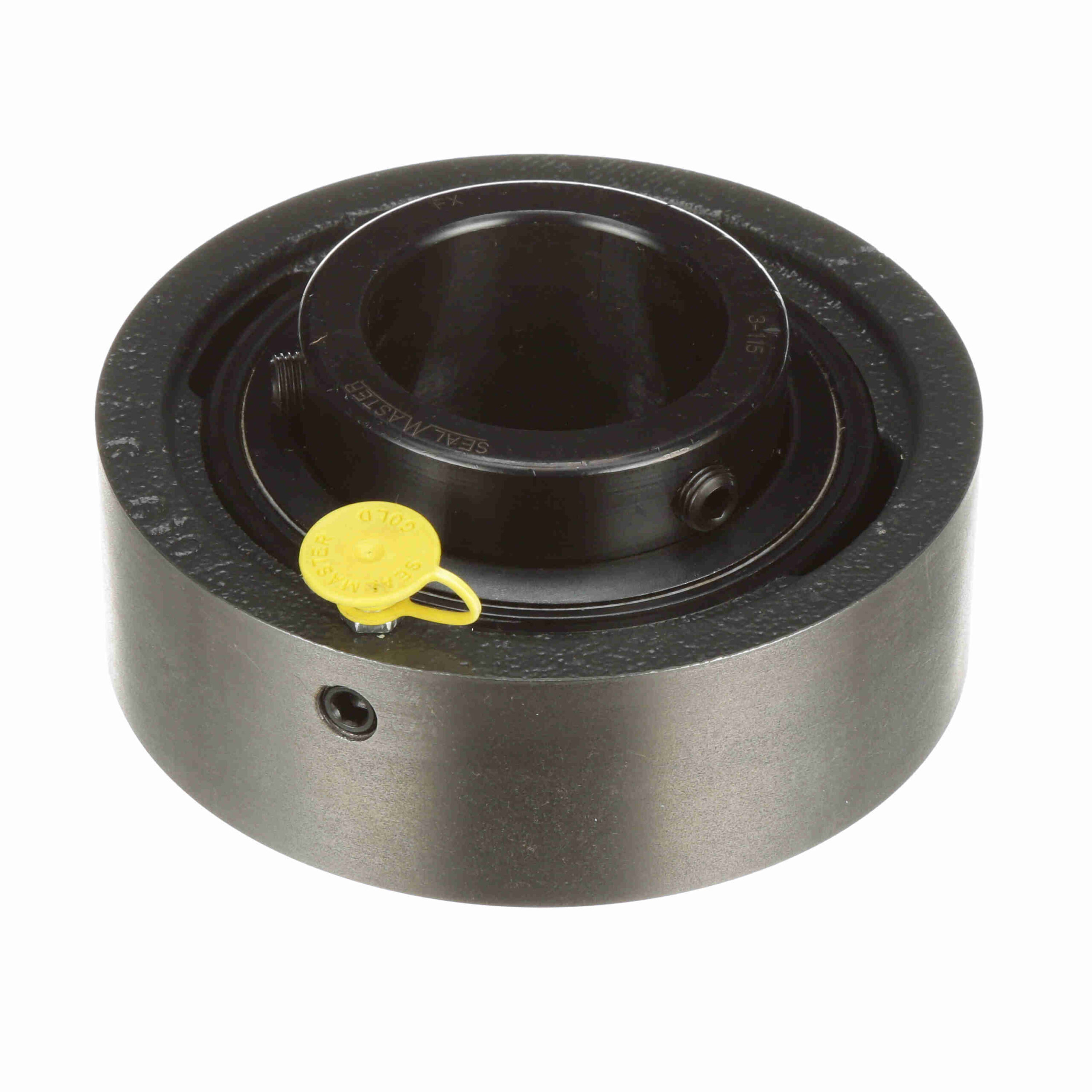

Sealmaster Mounted Cast Iron Cylindrical Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MSC-31
$388.01
Out of stock
Out of stock
| Retainer Type: | Land Riding Retainer | Duty Series: | Medium Duty |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Cartridge, Cylindrical | Expansion: | No |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Housing Material: | Cast Iron |
| Insert No.: | 3-115 | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Rolling Element: | Ball Bearing | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 9, 752 | Housing Construction: | One Piece |
| Bore Shape: | Straight | Internal Clearance: | Standard |
| Measure Units: | Inch | Speed (Max): | 3250 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Misalignment: | ±2.0° Misalignment - Static Only | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Housing Color: | Gray |
| End Cap: | No | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| Radial Static Load Capacity (lb): | 6, 601 | Cage Material: | PPS |
| Series: | MSC | UPC: | 662461014356 |
| Weight: | 6.00 LB | Packaged Length: | 5.5 Inches |
| Packaged Width: | 5.38 Inches | Packaged Height: | 3.5 Inches |
| HTC: | 8482.10.5052 | Country of Origin: | Mexico |
