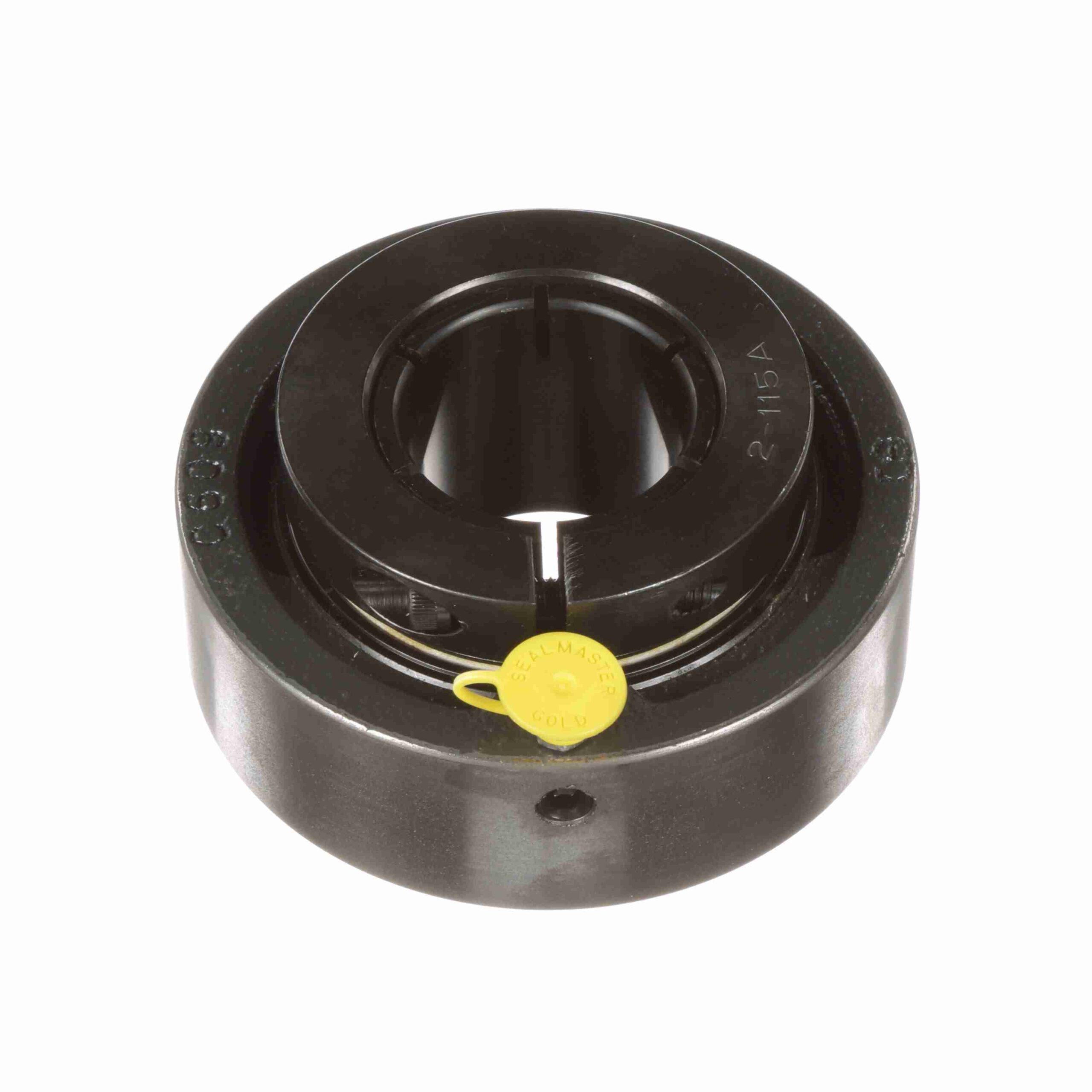

MSC-28T

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Rolling Element:	Ball Bearing
Insert Material:	52100 Bearing Steel, Black Oxided	Bore Shape:	Straight
Measure Units:	Inch	Internal Clearance:	Standard
Housing Construction:	One Piece	Radial Dynamic Load Capacity (lb):	7, 889 lb
Misalignment:	±2.0° Misalignment - Static Only	Outer Ring Land Profile:	Standard
Misalignment Type:	Static Only	Platform:	Gold Line Ball Bearing
Housing Color:	Gray	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Replaceable Insert:	Yes
Radial Static Load Capacity (lb):	5, 216 lb	Series:	MSC-T
Cage Material:	PPS	Duty/Series:	Medium Duty
Lubrication Type:	Lithium Complex NLGI 2 Grease	Housing Material:	Cast Iron
Retainer Type:	Land Riding Retainer	Maximum Speed (RPM):	5000 rpm
Locking Type:	Concentric	Housing Style:	Cartidge Block
Housing Type:	Cartridge, Cylindrical	Fixed vs. Expansion:	Fixed
Maximum Operating Temperature (F):	220 °F	Insert Number:	3-112T
Inner Race Heat Treat Method:	Zone-Hardened	Ability to Relubricate:	Yes
UPC:	662461000000	Weight:	5.50 LB
Packaged Length:	5 Inches	Packaged Width:	2 Inches
Packaged Height:	5 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
