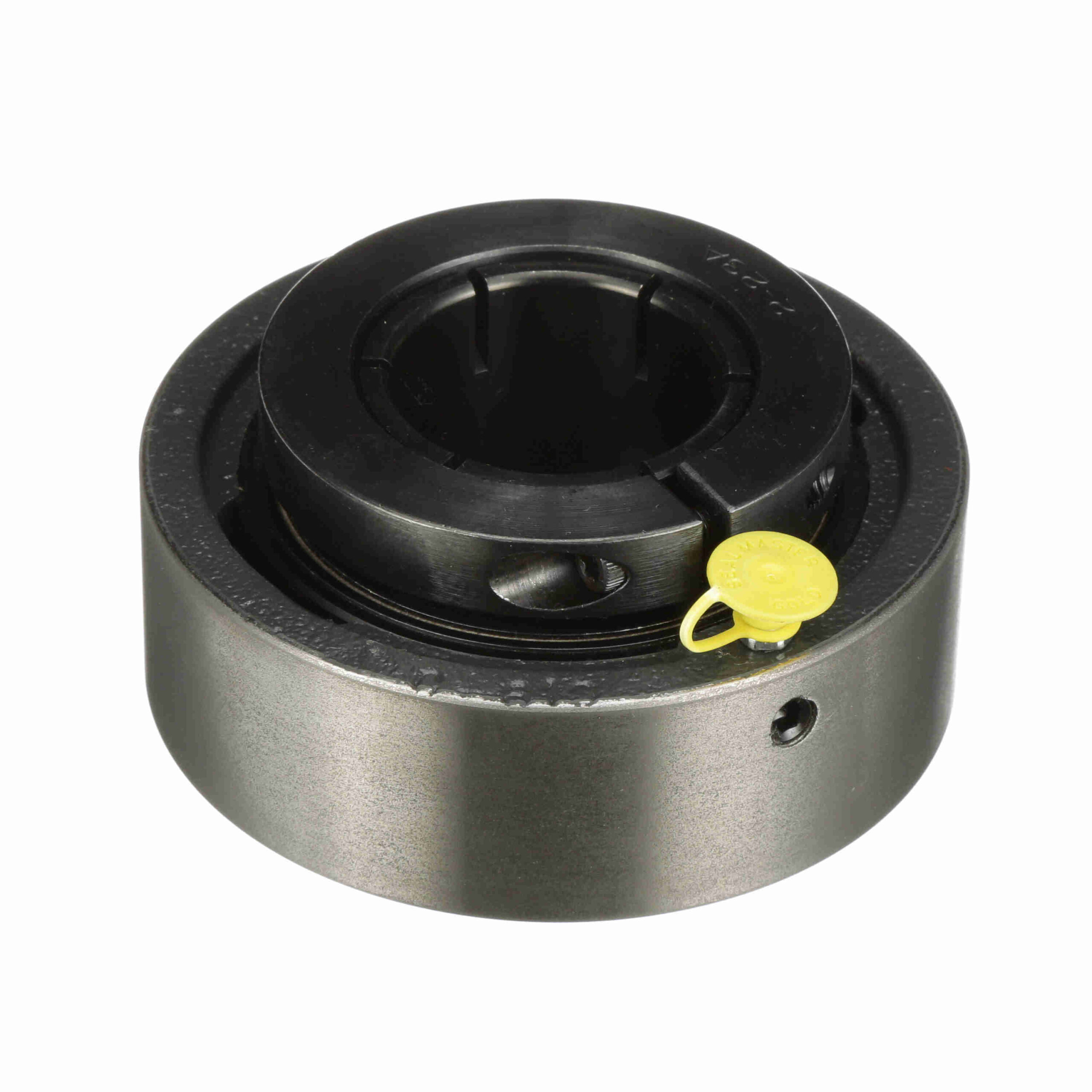

MSC-27T

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Inner-Race Heat-Treat Method:	Zone-Hardened	Rolling Element:	Ball Bearing
Duty Series:	Medium Duty	Retainer Type:	Land Riding Retainer
Expansion:	No	Seal Type:	Felt Labyrinth Seal
Insert No.:	3-111T	Maximum Operating Temperature:	220 °F
Insert Material:	52100 Bearing Steel, Black Oxided	Housing Type:	Cartridge, Cylindrical
Housing Material:	Cast Iron	Locking Type:	Concentric
Bore Shape:	Straight	Speed (Max):	5000
Misalignment:	±2.0° Misalignment - Static Only	Radial Dynamic Load Capacity (lb):	7, 889
Measure Units:	Inch	Relubricatable:	Yes
Internal Clearance:	Standard	Housing Construction:	One Piece
Lubrication:	Lithium Complex NLGI 2 Grease	Outer Ring Land Profile:	Standard
Bearing Insert Coating:	Black Oxide Coated	End Cap:	No
Misalignment Type:	Static Only	Replaceable Insert:	Yes
Housing Color:	Gray	Platform:	Gold Line Ball Bearing
Radial Static Load Capacity (lb):	5, 216	Cage Material:	PPS
Series:	MSC-T	UPC:	662461032053
Weight:	5.50 LB	Packaged Length:	5 Inches
Packaged Width:	2 Inches	Packaged Height:	5 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
