- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned in
- With separable inner ring
MR 56 SS/MI 48

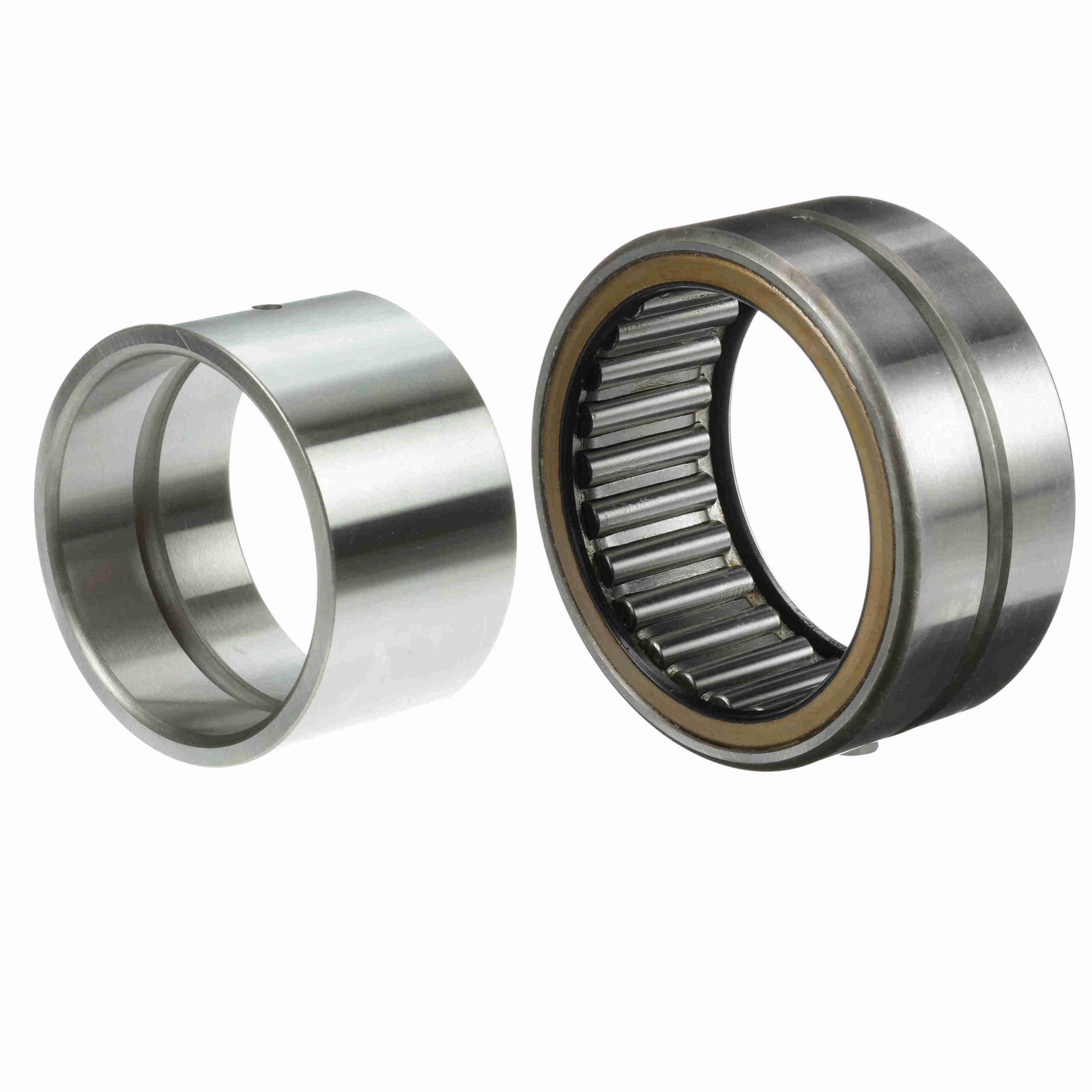

McGill Cagerol® Radial Needle Roller Bearing (with inner) – Sealed – MR 56 SS/MI 48
$315.61
Out of stock
Out of stock
| Includes Inner Ring: | Yes | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Series: | Standard | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Radial Clearance: | Normal |
| Misalignment: | No | Bore Type: | Straight |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Full Complement/Caged: | Caged | Platform: | Cagerol Bearing |
| Static Load Rating (lb): | 71, 600 lb | Dynamic Load Rating (lb): | 31, 300 lb |
| Duplexing: | No | Sealed: | Sealed - Both Sides |
| Speed [Max] Grease (RPM): | 1, 090 rpm | Standard Met: | ABMA, ISO |
| Precision Rating: | Not Rated | Lubrication Hole Type: | Lubrication Groove & Hole |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Separable: | Inner ring - both sides | Retainer: | Yes |
| Operating Temperature Range (F): | -20F to 250 °F °F | UPC: | 726166113957 |
| Weight: | 3.91 LB | Packaged Length: | 4.87 Inches |
| Packaged Width: | 2.12 Inches | Packaged Height: | 4.87 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
