- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned out
MR 40 RSS

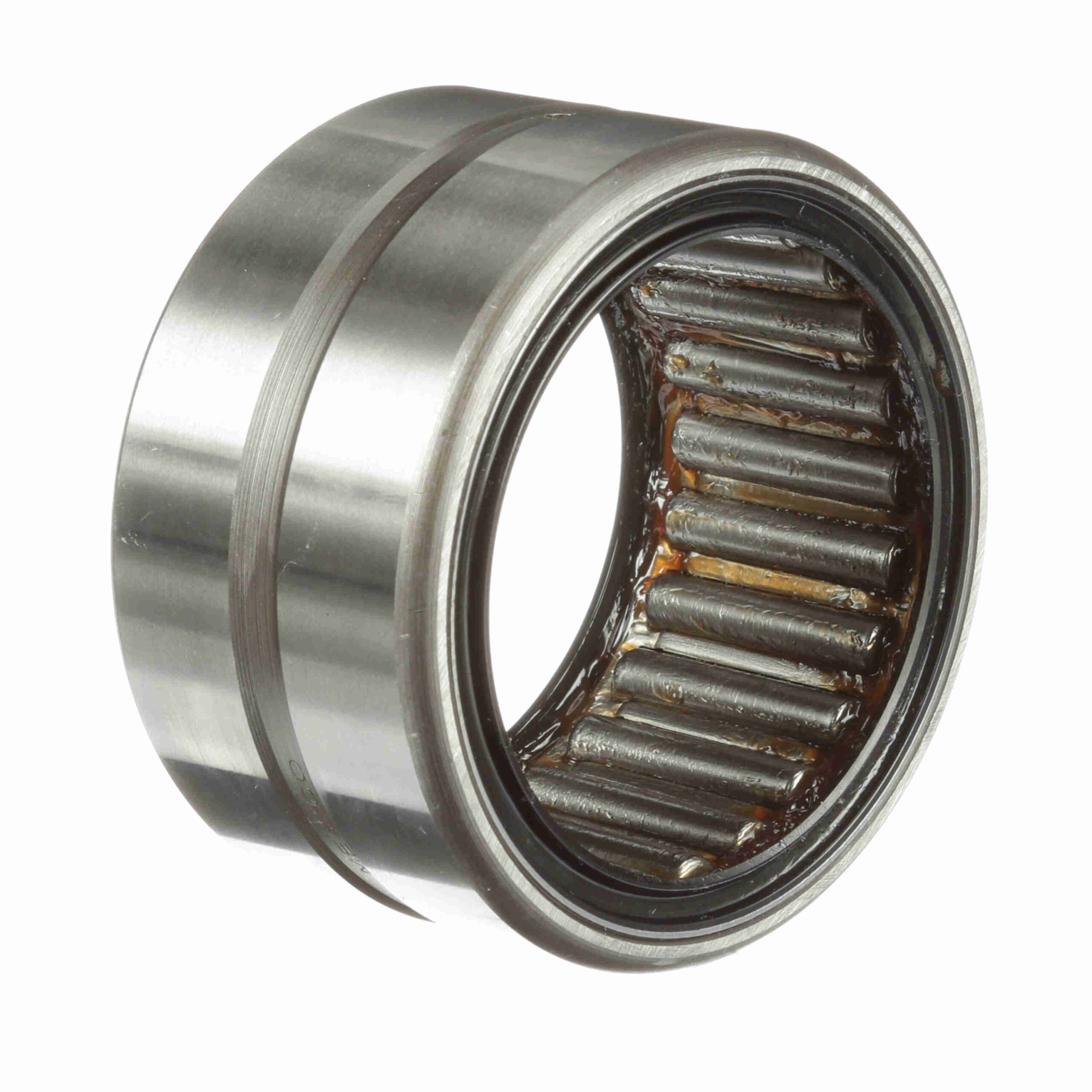

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 40 RSS
$77.14
Availability: 122 in stock
Availability: 122 in stock
| Includes Inner Ring: | No | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Series: | Standard | Cage Material: | Steel |
| Rolling Element: | Needle Roller | Misalignment: | No |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Number of Rows: | 1 | Seal Type: | Rubber Lip |
| Platform: | Cagerol Bearing | Dynamic Load Rating (lb): | 23, 400 lb |
| Sealed: | Sealed - Both Sides | Duplexing: | No |
| Static Load Rating (lb): | 42, 900 lb | Full Complement/Caged: | Caged |
| Speed [Max] Grease (RPM): | 1, 530 rpm | Lubrication Hole Type: | Lubrication Groove & Hole |
| Standard Met: | ABMA, ISO | Related Inner Ring: | MI 31, MI 32, MI 34 |
| Flanges: | No Flanges | Precision Rating: | RBEC-1 |
| Component Type: | Outer race only | Enclosure: | Sealed Both Sides |
| Separable: | Nonseparable | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166067670 |
| Weight: | 1.24 LB | Packaged Length: | 3.31 Inches |
| Packaged Width: | 1.81 Inches | Packaged Height: | 3.31 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
