- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Single rubber-lipped seal with lip turned in
MR 28 S

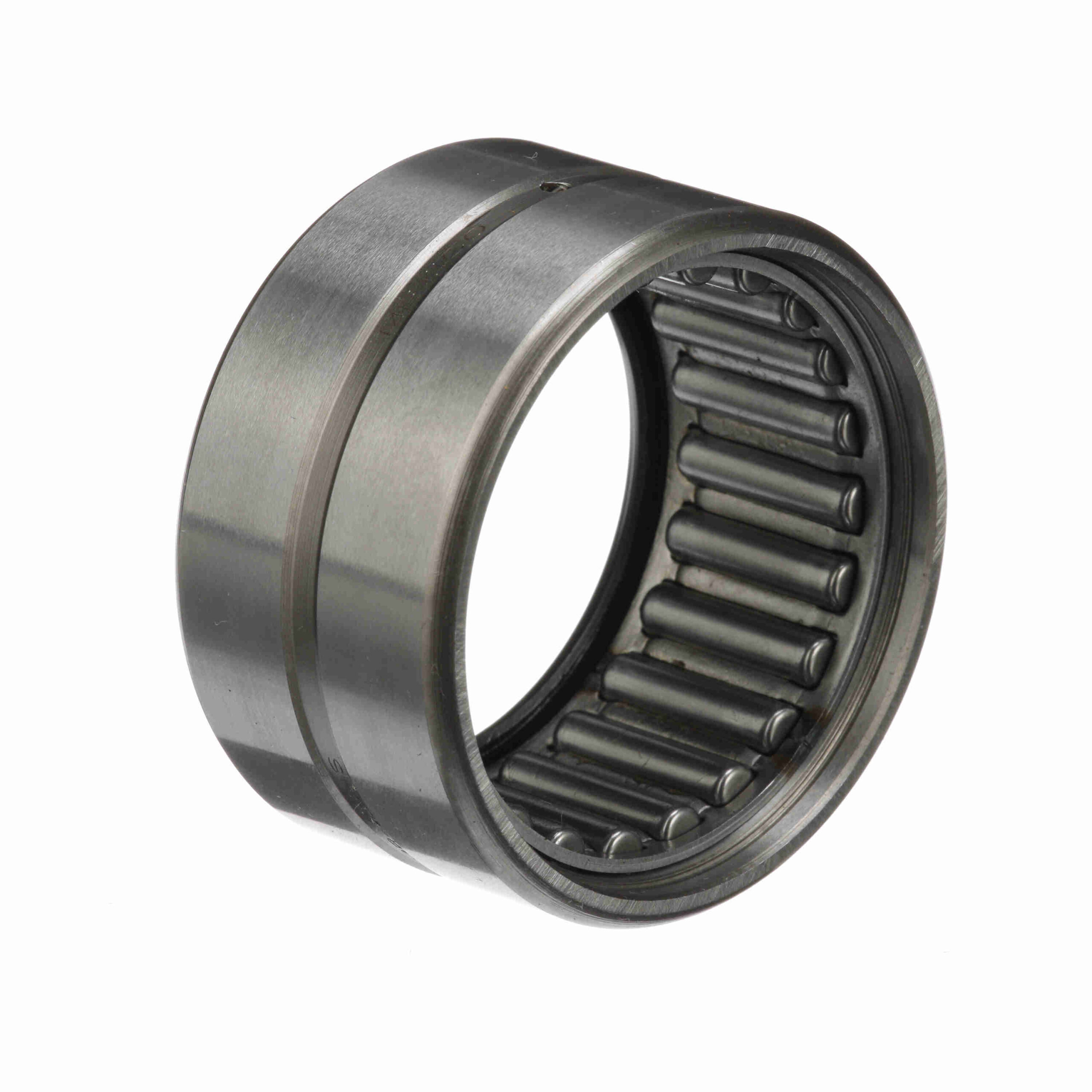

McGill Cagerol® Radial Needle Roller Bearing (no inner) – Sealed – MR 28 S
$46.19
Availability: 12 in stock
Availability: 12 in stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Number of Rows: | 1 | Radial Clearance: | Normal |
| Seal Type: | Rubber Lip | Bore Type: | Straight |
| Duplexing: | No | Dynamic Load Rating (lb): | 11, 200 lb |
| Platform: | Cagerol Bearing | Speed [Max] Grease (RPM): | 1, 500 rpm |
| Sealed: | Sealed - One Side | Speed [Max] Oil (RPM): | 3, 050 rpm |
| Static Load Rating (lb): | 18, 100 lb | Full Complement/Caged: | Caged |
| Related Inner Ring: | MI 23, MI 24 | Precision Rating: | RBEC-1 |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Retainer: | Yes |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166066772 |
| Weight: | 0.48 LB | Packaged Length: | 2.31 Inches |
| Packaged Width: | 1.56 Inches | Packaged Height: | 2.31 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
