- Machined race needle bearing
- Retained (caged) needle rolling elements
- Annular lubrication groove
- Matched pair for duplex mounting
- Narrow width configuration
MR 18 N DS

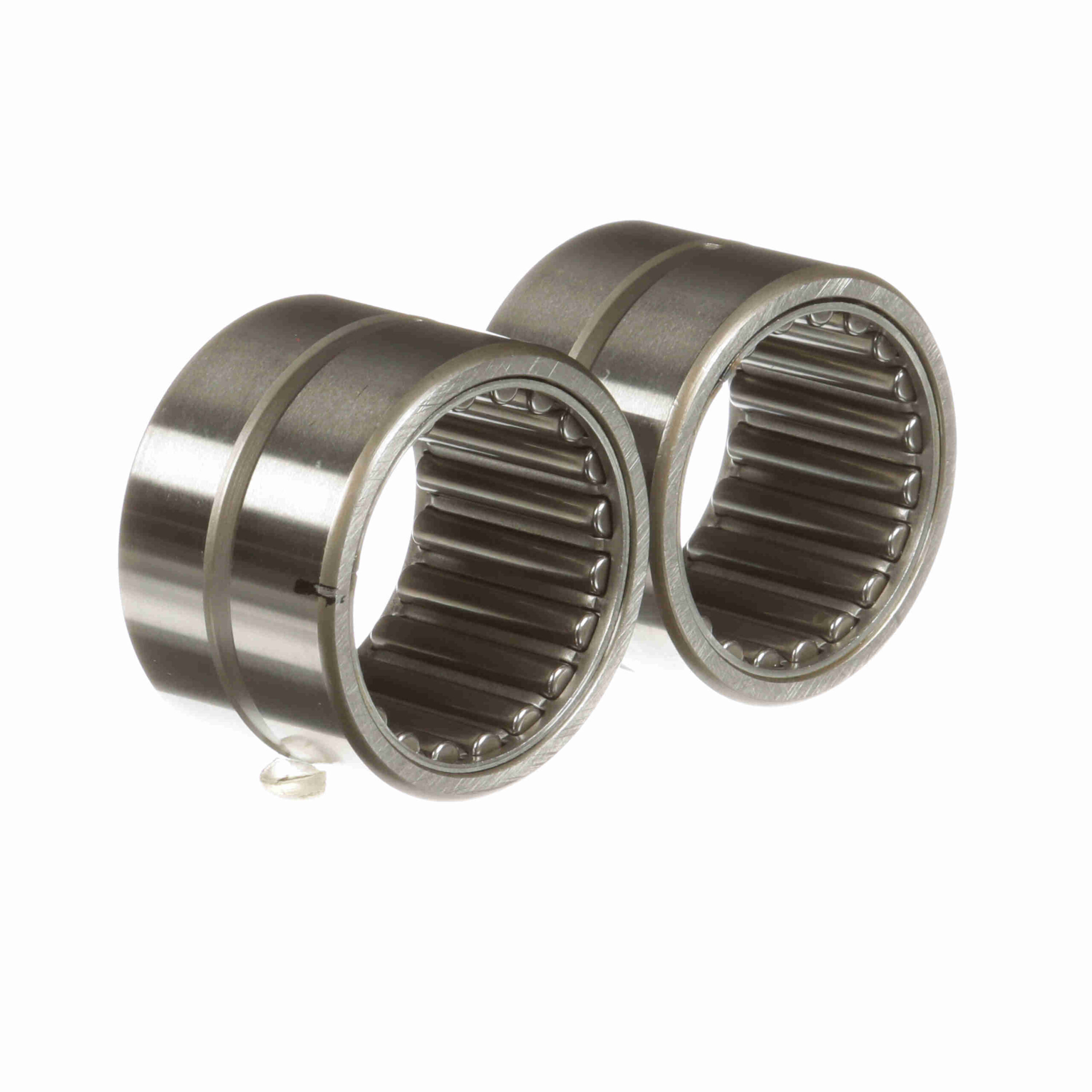

McGill Cagerol® Radial Needle Roller Bearing (no inner) – MR 18 N DS
$285.68
Out of stock
Out of stock
| Series: | Narrow | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | Steel |
| Misalignment: | No | Bore Type: | Straight |
| Rolling Element: | Needle Roller | Seal Type: | Unsealed |
| Radial Clearance: | Normal | Number of Rows: | 2 |
| Duplexing: | Yes | Static Load Rating (lb): | 12, 200 lb |
| Full Complement/Caged: | Caged | Sealed: | None |
| Dynamic Load Rating (lb): | 14, 400 lb | Speed [Max] Grease (RPM): | 5, 350 rpm |
| Platform: | Cagerol Bearing | Speed [Max] Oil (RPM): | 10, 700 rpm |
| Precision Rating: | RBEC-1 | Flanges: | No Flanges |
| Related Inner Ring: | MI 14 N, MI 15 N | Standard Met: | ABMA, ISO |
| Lubrication Hole Type: | Lubrication Groove & Hole | Separable: | Nonseparable |
| Enclosure: | Open | Component Type: | Outer race only |
| Retainer: | Yes | Operating Temperature Range (F): | -20 to 250 °F °F |
| UPC: | 726166065768 | Weight: | 0.45 LB |
| Packaged Length: | 1.5 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 2.18 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | Mexico |
