- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MP-39 CXU

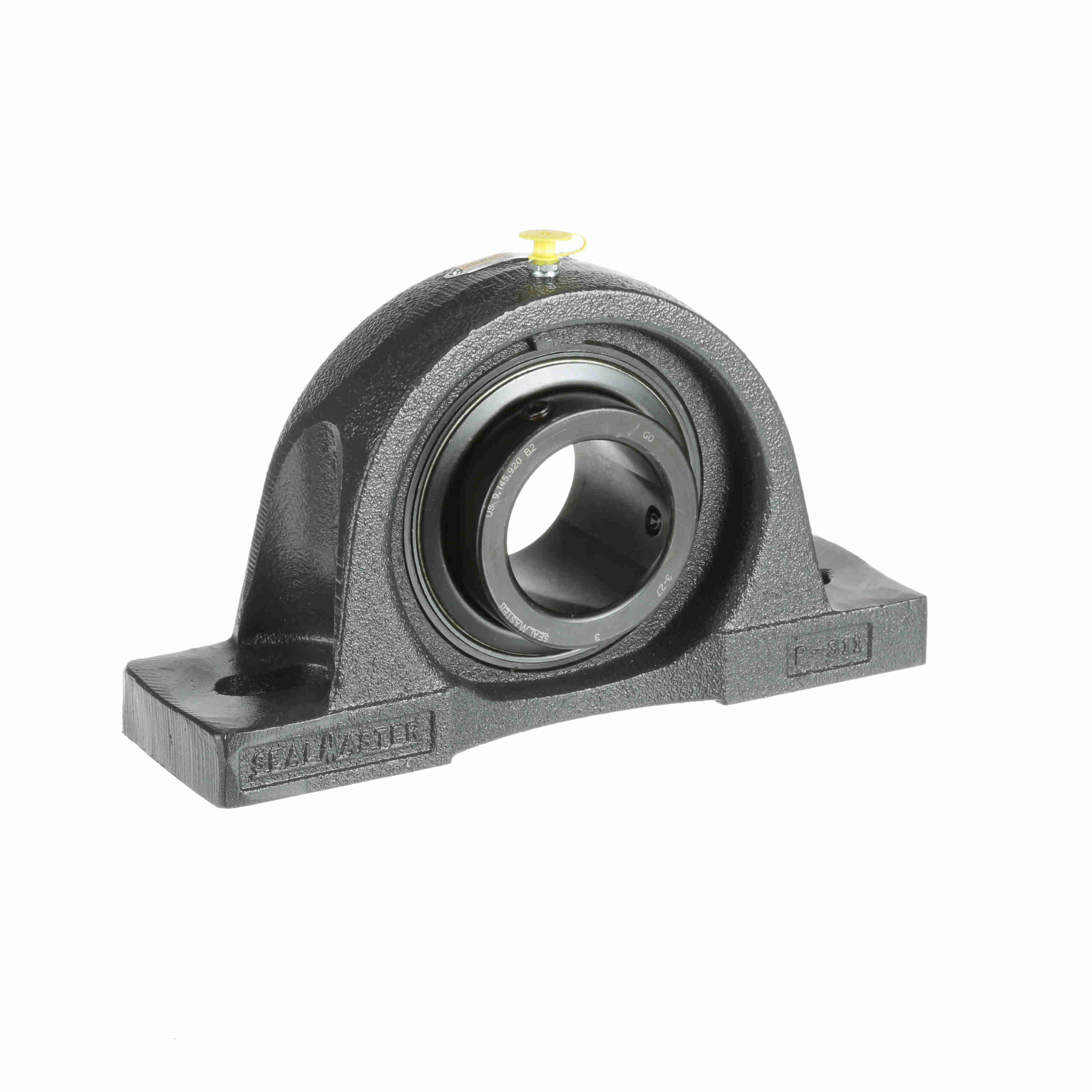

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – Air Handling Housing Fit, Noise Tested – MP-39 CXU
$579.48
Out of stock
Out of stock
| Retainer Type: | Land Riding Retainer | Duty Series: | Medium Duty |
|---|---|---|---|
| Internal Clearance: | Standard | Housing Type: | Pillow Block; Two Bolt |
| Expansion: | No | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Measure Units: | Inch | Insert No.: | 3-27 |
| Housing Base: | Solid | Maximum Operating Temperature: | 220 °F |
| Housing Material: | Cast Iron | Seal Type: | Felt Labyrinth Seal |
| Speed (Max): | 2500 | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Air Handling |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Options: | Air Handling Housing Fit; Noise Tested |
| Misalignment Type: | Static Only | UPC: | 662461050101 |
| Weight: | 20.75 LB | Packaged Length: | 12.38 Inches |
| Packaged Width: | 7.13 Inches | Packaged Height: | 3.56 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
