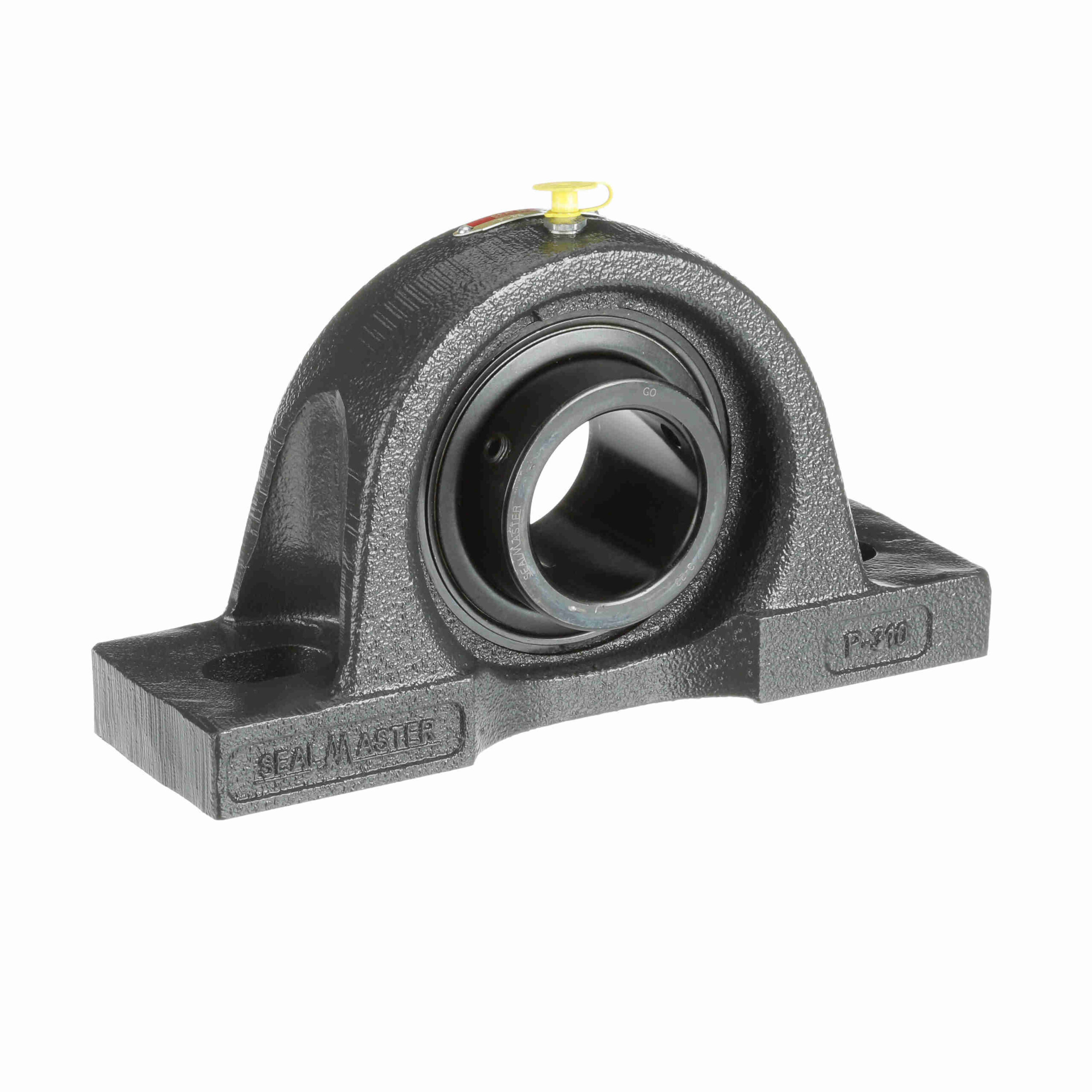

MP-35T HI

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
High temperature felt labyrinth seal and flinger
Increased internal clearance
Krytox® high temperature grease
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Base:	Solid	Seal Type:	High Temp Labyrinth
Internal Clearance:	Increased	Insert Material:	52100 Bearing Steel, Black Oxided
Rolling Element:	Ball Bearing	Measure Units:	Inch
Bore Shape:	Straight	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Platform:	Gold Line Ball Bearing
Options:	High Temperature	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	End Cap:	No
Housing Color:	Gray	Housing Type:	Pillow Block, Two Bolt
Locking Type:	Concentric	Duty/Series:	Medium Duty
Housing Style:	Pillow Block	Housing Material:	Cast Iron
Fixed vs. Expansion:	Fixed	Lubrication Type:	PTFE thickened Grease
Retainer Type:	Land Riding Retainer	Maximum Speed (RPM):	1250 rpm
Insert Number:	3-23T HI	Inner Race Heat Treat Method:	Zone-Hardened
Operating Temperature Range (F):	Max. +400°F °F	Ability to Relubricate:	Yes
Maximum Operating Temperature (F):	220 °F	UPC:	662461000000
Weight:	15.60 LB	Packaged Length:	10.38 Inches
Packaged Width:	6.5 Inches	Packaged Height:	3 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
