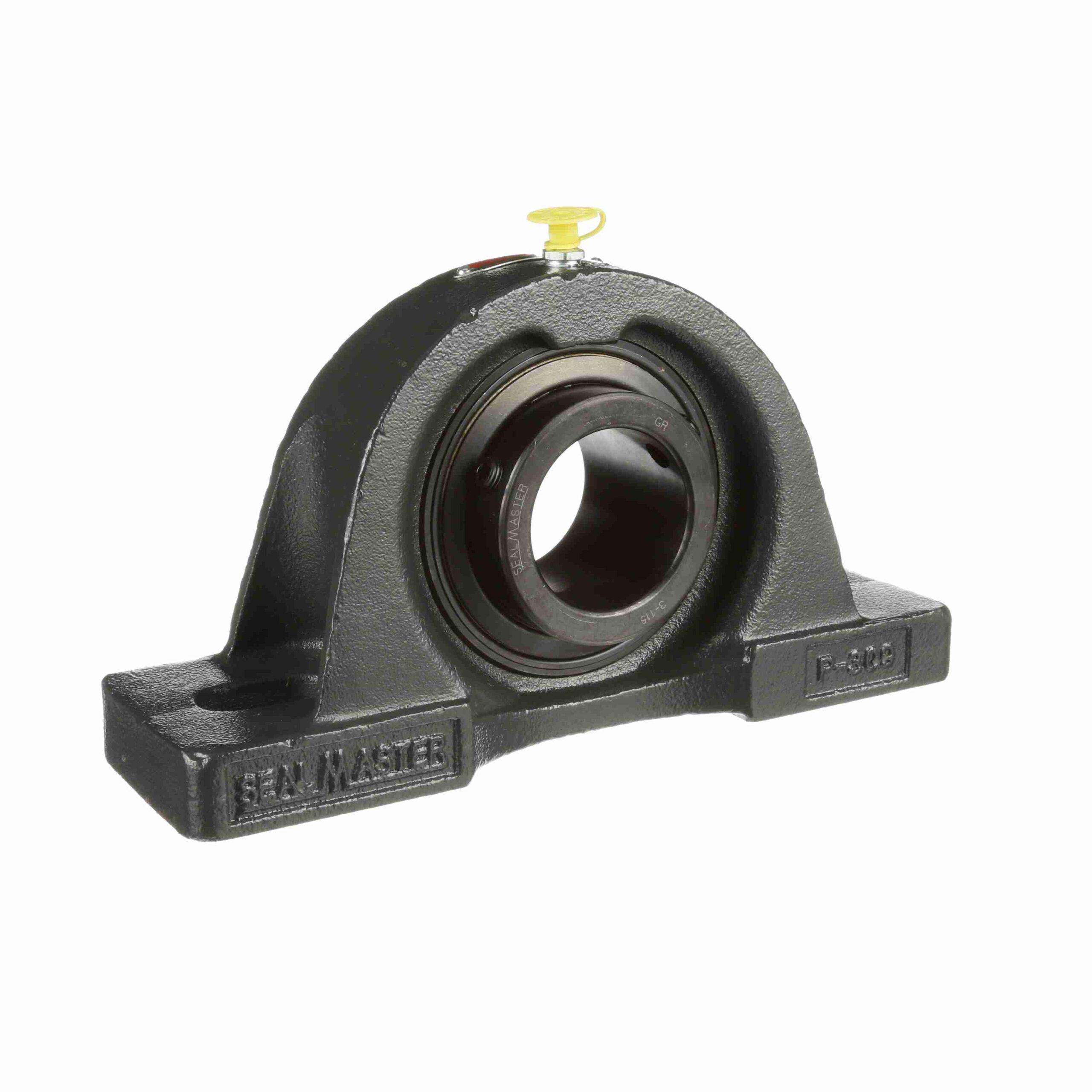

MP-30

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Internal Clearance:	Standard	Rolling Element:	Ball Bearing
Measure Units:	Inch	Seal Type:	Felt Labyrinth Seal
Housing Base:	Solid	Insert Material:	52100 Bearing Steel, Black Oxided
Bore Shape:	Straight	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	Housing Color:	Gray
Bearing Insert Coating:	Black Oxide Coated	Misalignment Type:	Static Only
End Cap:	No	Replaceable Insert:	Yes
Fixed vs. Expansion:	Fixed	Duty/Series:	Medium Duty
Housing Material:	Cast Iron	Housing Type:	Pillow Block, Two Bolt
Retainer Type:	Land Riding Retainer	Lubrication Type:	Lithium Complex NLGI 2 Grease
Housing Style:	Pillow Block	Locking Type:	Setscrew
Maximum Speed (RPM):	3550 rpm	Maximum Operating Temperature (F):	220 °F
Inner Race Heat Treat Method:	Zone-Hardened	Insert Number:	2-114
Ability to Relubricate:	Yes	UPC:	662461000000
Weight:	11.70 LB	Packaged Length:	8.88 Inches
Packaged Width:	5.94 Inches	Packaged Height:	2.63 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
