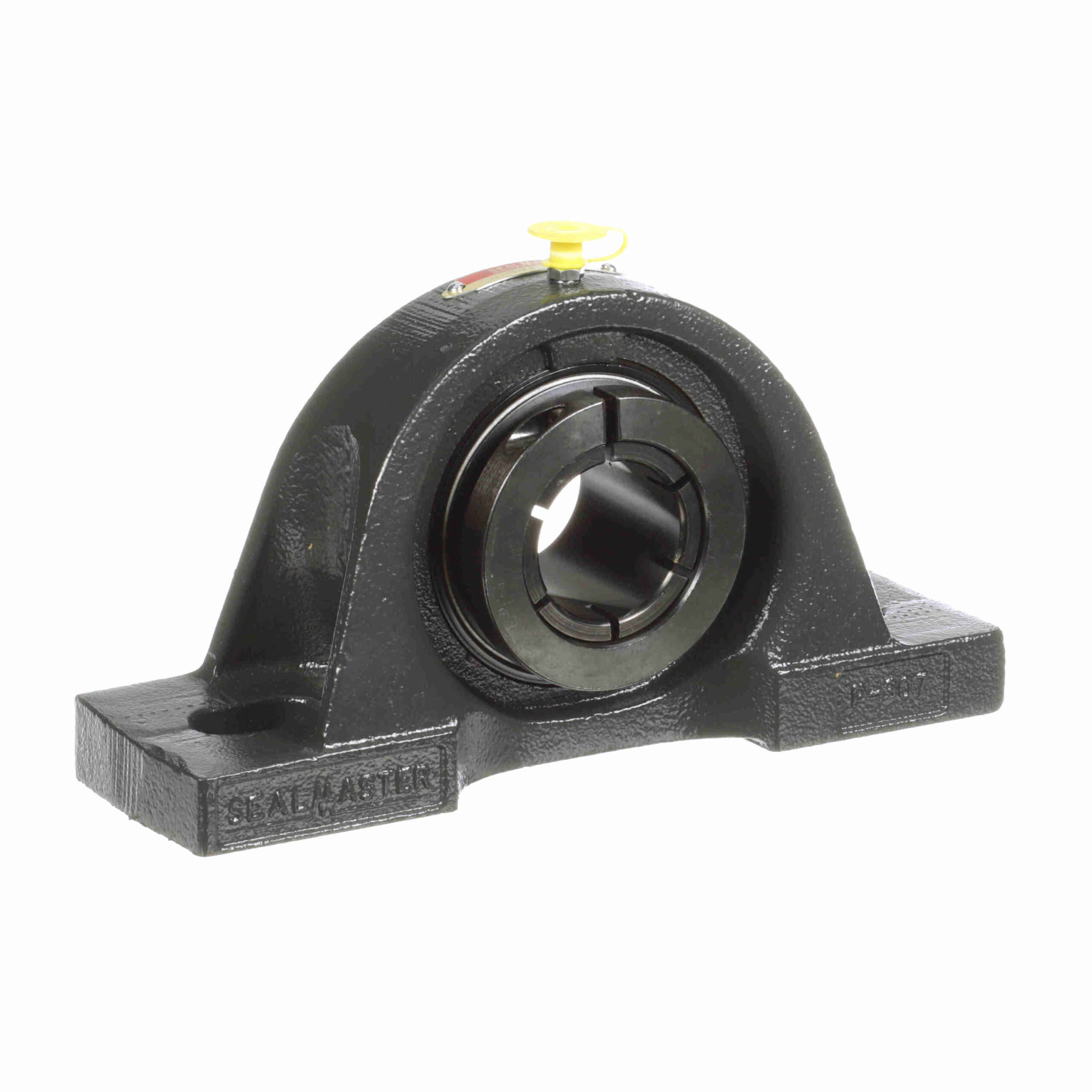

MP-24T

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc? concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Insert Material:	52100 Bearing Steel; Black Oxided	Retainer Type:	Land Riding Retainer
Housing Material:	Cast Iron	Speed (Max):	5300
Insert No.:	3-18T	Duty Series:	Medium Duty
Internal Clearance:	Standard	Expansion:	No
Housing Base:	Solid	Maximum Operating Temperature:	220 °F
Rolling Element:	Ball Bearing	Housing Type:	Pillow Block; Two Bolt
Seal Type:	Felt Labyrinth Seal	Measure Units:	Inch
Bore Shape:	Straight	Housing Construction:	One Piece
Locking Type:	Concentric	Relubricatable:	Yes
Misalignment:	±2.0° Misalignment - Static Only	Inner-Race Heat-Treat Method:	Zone-Hardened
Lubrication:	Lithium Complex NLGI 2 Grease	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	End Cap:	No
Replaceable Insert:	Yes	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	Housing Color:	Gray
UPC:	662461031858	Weight:	9.19 LB
Packaged Length:	5.12 Inches	Packaged Width:	9.25 Inches
Packaged Height:	3 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
