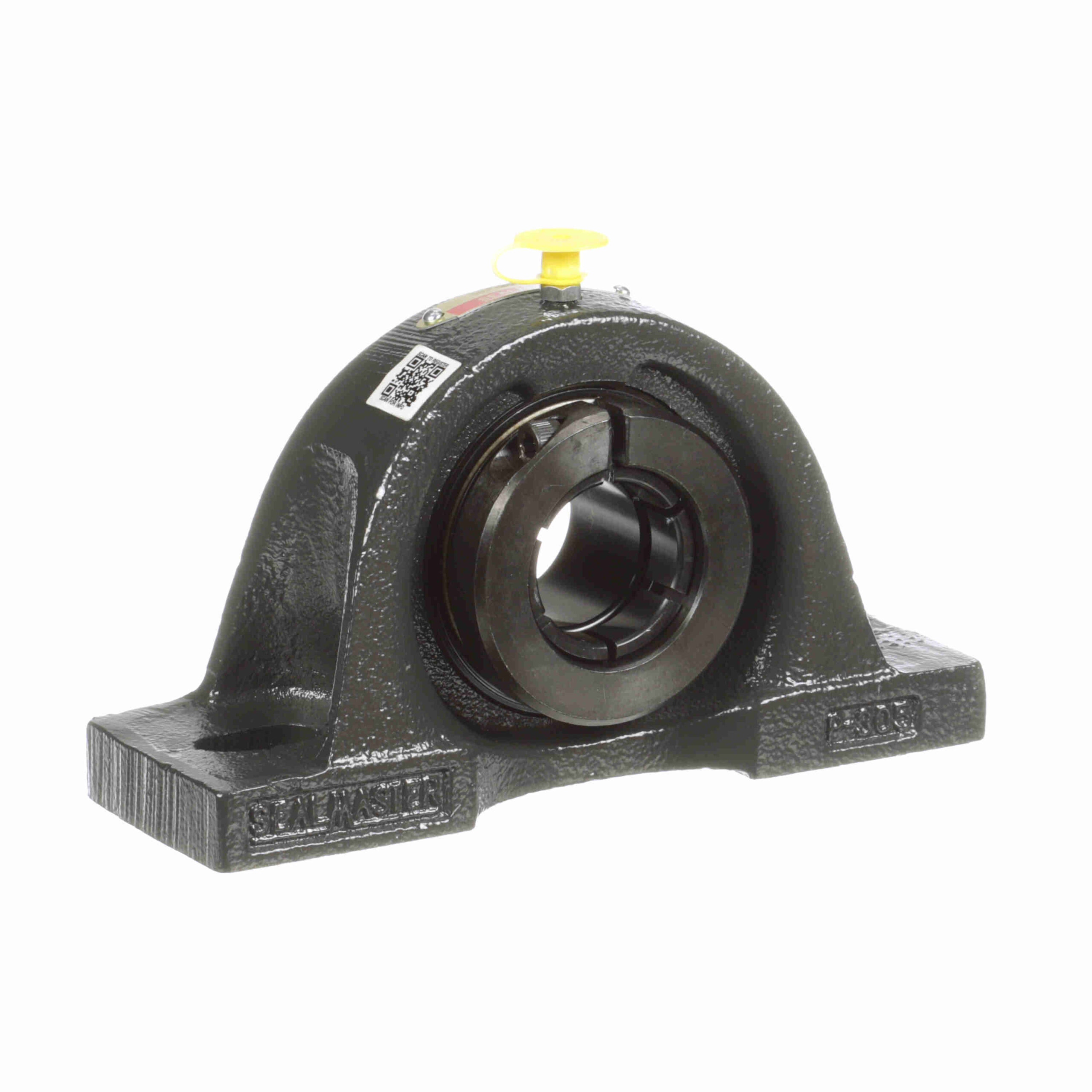

MP-20T

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc? concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Retainer Type:	Land Riding Retainer	Rolling Element:	Ball Bearing
Measure Units:	Inch	Insert No.:	2-14T
Duty Series:	Medium Duty	Expansion:	No
Insert Material:	52100 Bearing Steel; Black Oxided	Housing Material:	Cast Iron
Housing Type:	Pillow Block; Two Bolt	Maximum Operating Temperature:	220 °F
Seal Type:	Felt Labyrinth Seal	Speed (Max):	7600
Internal Clearance:	Standard	Housing Base:	Solid
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	5, 782
Inner-Race Heat-Treat Method:	Zone-Hardened	Housing Construction:	One Piece
Misalignment:	±2.0° Misalignment - Static Only	Locking Type:	Concentric
Lubrication:	Lithium Complex NLGI 2 Grease	Relubricatable:	Yes
Housing Color:	Gray	Bearing Insert Coating:	Black Oxide Coated
Misalignment Type:	Static Only	End Cap:	No
Outer Ring Land Profile:	Standard	Replaceable Insert:	Yes
Platform:	Gold Line Ball Bearing	Radial Static Load Capacity (lb):	3, 493
UPC:	662461031834	Weight:	5.42 LB
Packaged Length:	4.63 Inches	Packaged Width:	2.31 Inches
Packaged Height:	7.5 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
