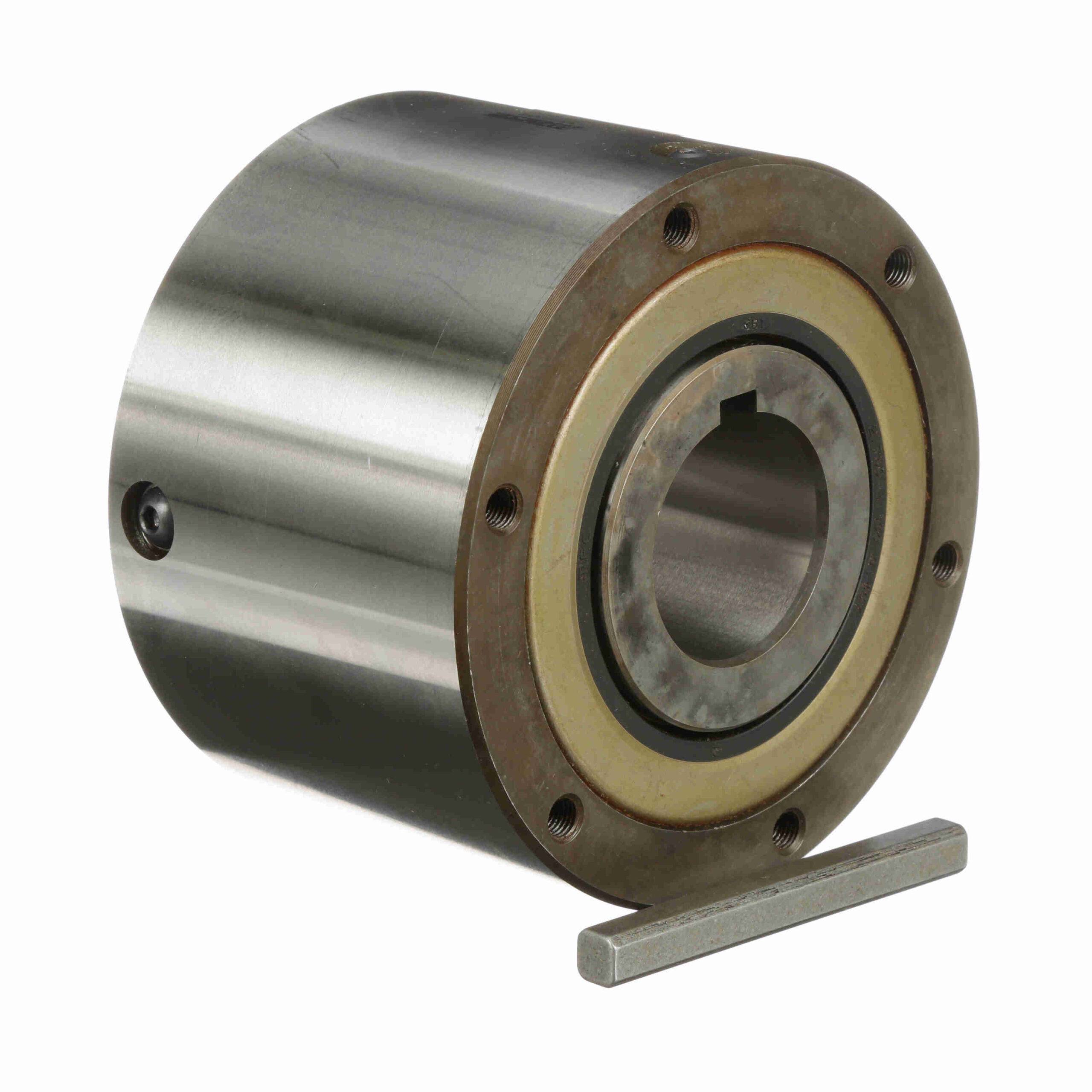

MI600A 1-3/4FB CL

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
MI is recommended for high performance indexing applications requiring high indexing accuracy. Incorporates and low inertia cage and heavy duty inergizing spring for quick cam reaction

Outer Width (in):	3.625 in	Model:	MI
Overall Diameter (in):	5.375 in	Type:	CAM Clutches
Rated Torque Capacity (ft.-lbs.):	2, 250	Inner Race Width (in):	3.75 in
Clutch size code:	600	Mode of Operation:	High Performance Indexing
Product Type:	M Series	Add'l Bearing Support Requirement:	No
Overrunning Clutch:	Yes	Lubrication Type:	Oil
Bore (Max) (in):	2 in	Backstopping Clutch:	Yes
Indexing Clutch:	Yes	Bore (Min) (in):	1.25 in
Bore Size (in):	1.75 in	Nominal Overrunning Drag (ft-lb):	0.63
UPC:	662288501602	Weight:	17.53 LB
Packaged Length:	6.80 Inches	Packaged Width:	6.20 Inches
Packaged Height:	4.10 Inches	HTC:	8483.60.4040
Country of Origin:	Mexico
