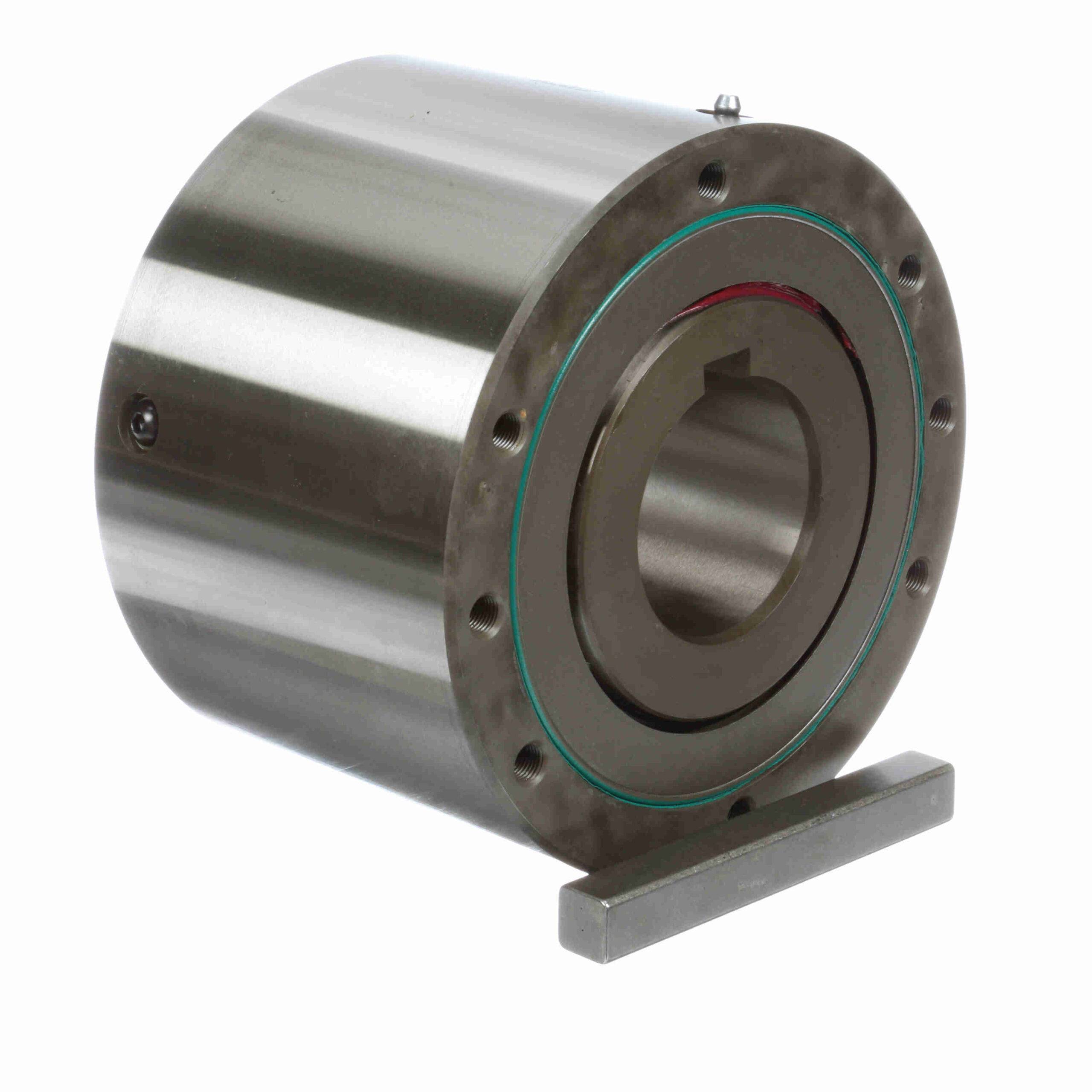

MG700A-G 2-7/16FB CL

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The M series ball bearing clutch contain precision formed cams made from high quality steel and precision ground. Our most versatile clutch, this unit is the workhorse of the industry
MG is primarily used for general duty overriding, indexing, back-stopping. Offers precise spring energizing to provide ling overcunning life.

Rated Torque Capacity (ft.-lbs.):	5, 000	RPM Max. - Outer Race:	400
Mode of Operation:	General duty all types	Type:	CAM Clutches
Product Type:	M Series	Clutch size code:	700
Model:	MG	Inner Race Width (in):	5 in
Overall Diameter (in):	7.125 in	Outer Width (in):	4.875 in
Add'l Bearing Support Requirement:	No	Indexing Clutch:	Yes
Bore Size (in):	2.4375 in	Bore (Max) (in):	2.9375 in
Overrunning Clutch:	Yes	Backstopping Clutch:	Yes
Lubrication Type:	Grease	Bore (Min) (in):	2 in
Nominal Overrunning Drag (ft-lb):	1.3	RPM Max. -inner Race:	1, 200
UPC:	662288501831	Weight:	43.00 LB
Packaged Length:	7.25 Inches	Packaged Width:	7.25 Inches
Packaged Height:	5.50 Inches	HTC:	8483.60.4040
Country of Origin:	United States of America
