- Metric stud type cam follower
- Crowned outside diameter
- Retained (caged) needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric bushing configuration
- Jam nuts and lube fitting included
MCFRE 32 SB

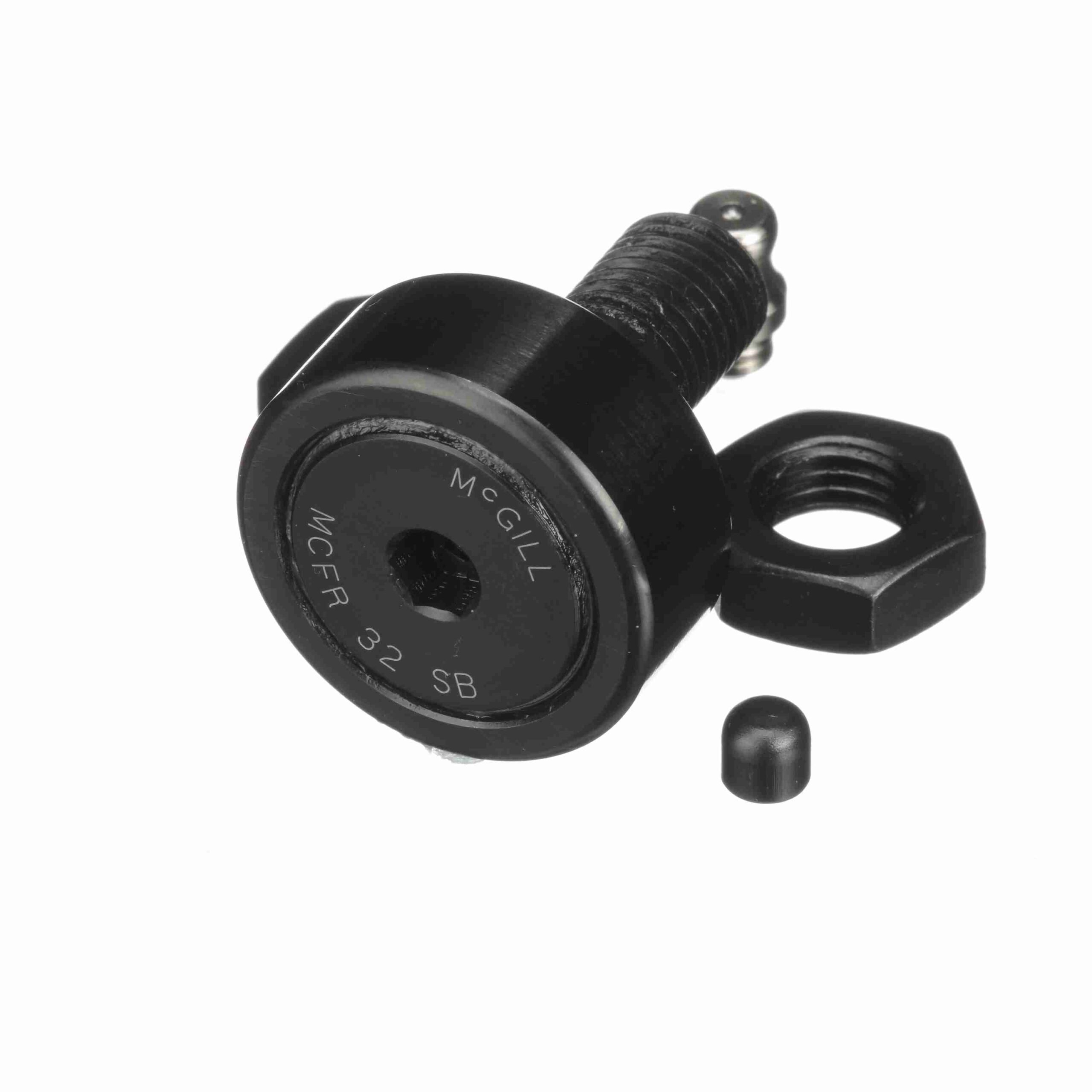

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCFRE 32 SB
$62.41
Out of stock
Out of stock
| Rolling Element: | Needle Roller - Caged | O.D. Configuration: | Crowned |
|---|---|---|---|
| Series: | Metric CAMROL® | Dynamic Track Roller Load Rating (N): | 6, 860 N |
| Adjustment: | Eccentric Bushing | Dynamic Radial Rating: | 2 |
| Hex/Slot: | Hex Hole | Limiting Speed: | 10 |
| Sealing: | Sealed | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Static Track Roller Load Rating: | 8 |
| Platform: | CAMROL® | Static Load Rating: | 8 |
| Industry Standard: | DIN / JIS | Stud Type: | Standard Stud with Eccentric Bushing |
| Roller Shape: | Crowned | Ability to Relubricate: | Yes |
| Dynamic Load Rating (N): | 8, 240 N | Clamping Torque (Nm): | 22 N·m |
| UPC: | 726166081836 | Weight: | 2.21 LB |
| Packaged Length: | 1.37 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 1.57 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
