- Metric stud type cam follower
- Cylindrical outside diameter
- Retained (caged) needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Eccentric bushing configuration
- Jam nuts and lube fitting included
MCFRE 19 SX

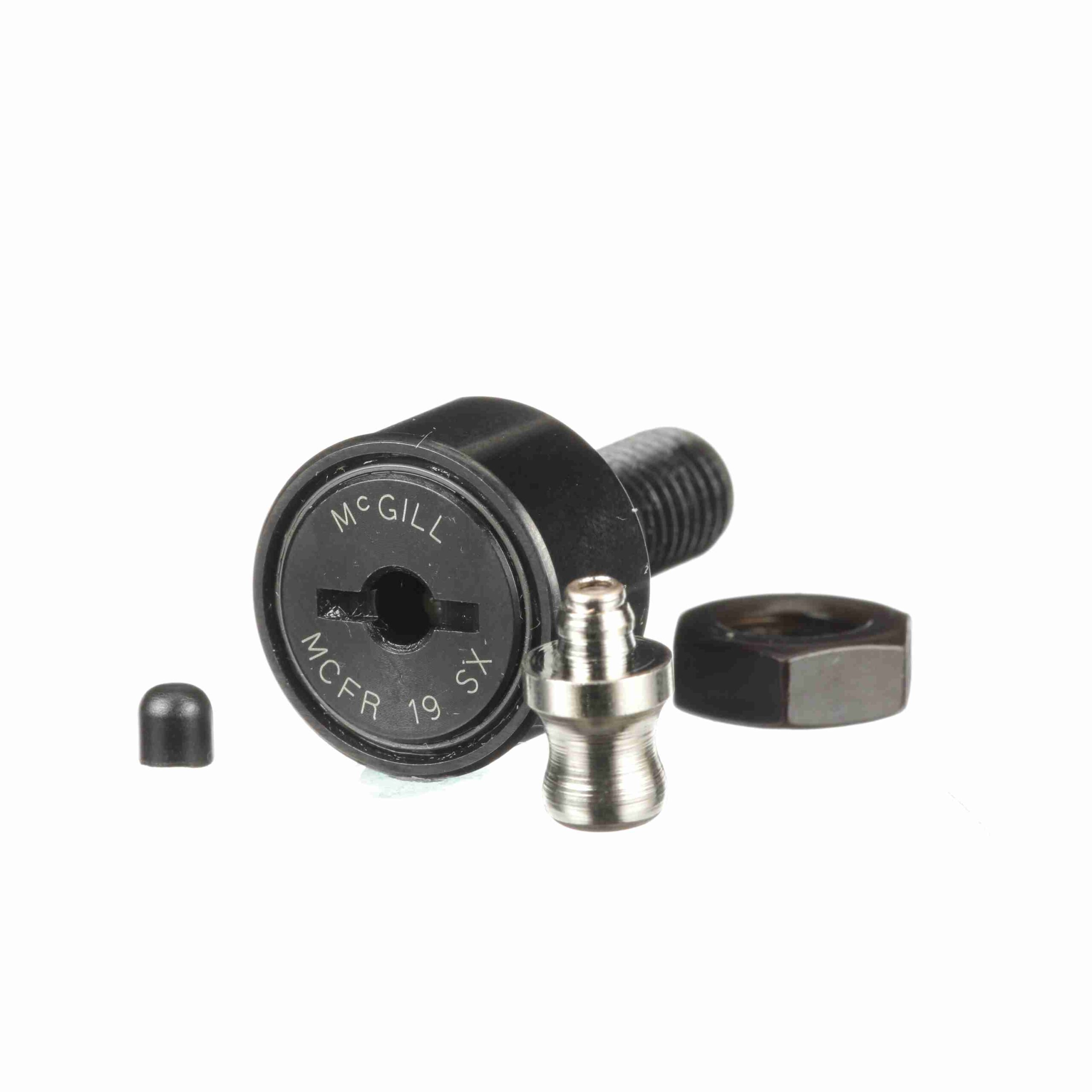

McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCFRE 19 SX
Out of stock
| Limiting Speed: | 16 | Rolling Element: | Needle Roller - Caged |
|---|---|---|---|
| O.D. Configuration: | Cylindrical | Adjustment: | Eccentric Bushing |
| Hex/Slot: | Screwdriver Slot | Series: | Metric CAMROL® |
| Dynamic Track Roller Load Rating (N): | 3, 730 N | Sealing: | Sealed |
| Dynamic Radial Rating: | 839 | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Static Track Roller Load Rating: | 4 |
| Platform: | CAMROL® | Dynamic Load Rating (lb): | 1, 550 lb |
| Roller Shape: | Cylindrical | Stud Type: | Standard Stud with Eccentric Bushing |
| Industry Standard: | DIN / JIS | Static Load Rating: | 4 |
| Lubrication Hole Location: | Stud side | Clamping Torque (Nm): | 8 N·m |
| Dynamic Load Rating (N): | 4, 510 N | Ability to Relubricate: | Yes |
| UPC: | 726166085544 | Weight: | 0.07 LB |
| Packaged Length: | 1.75 Inches | Packaged Width: | 1 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
