- Metric stud type cam follower
- Crowned outside diameter
- Retained (caged) needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included
MCFR 35 SB

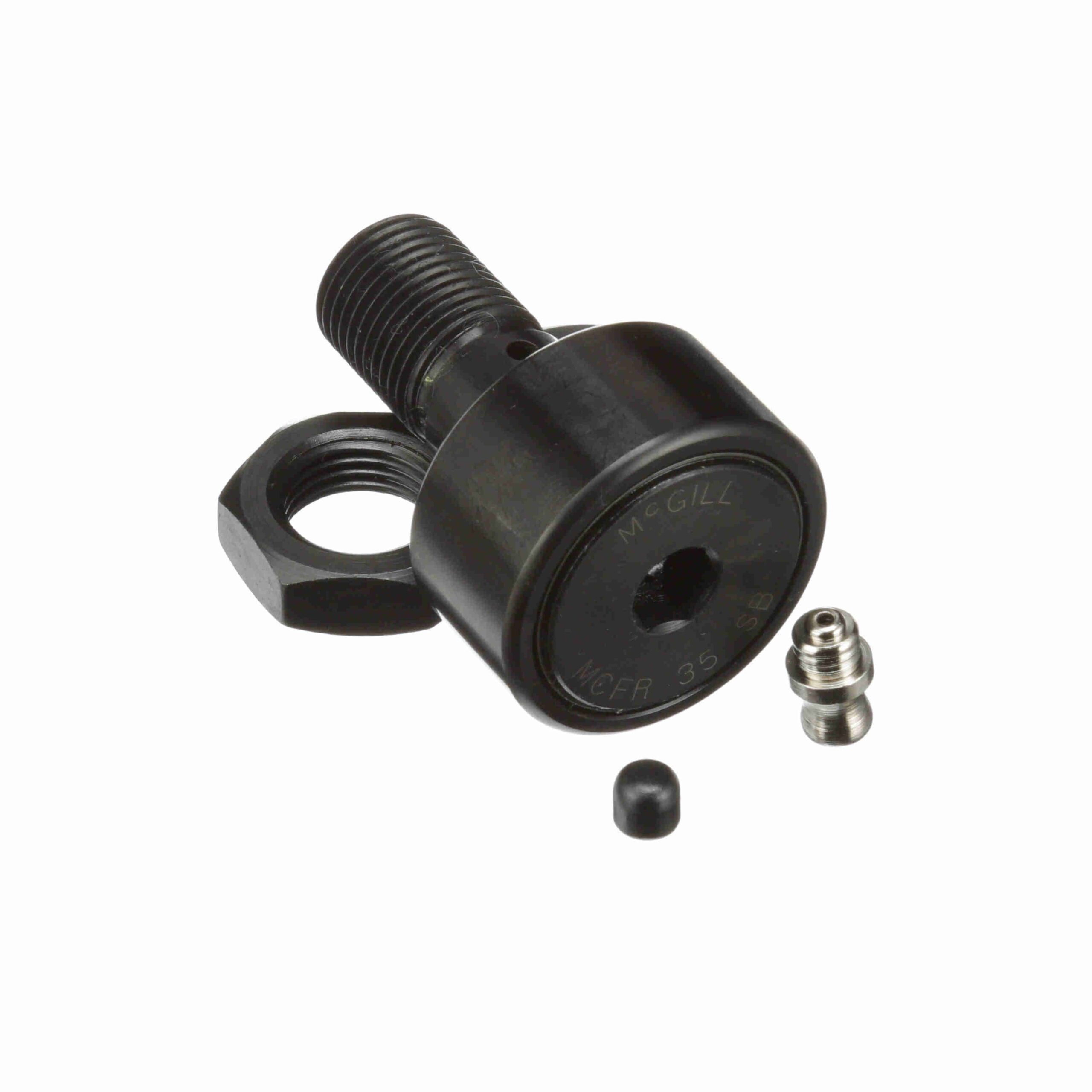

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCFR 35 SB
$37.24
Out of stock
Out of stock
| Hex/Slot: | Hex Hole | Series: | Metric CAMROL® |
|---|---|---|---|
| Adjustment: | None | O.D. Configuration: | Crowned |
| Dynamic Track Roller Load Rating (N): | 10, 890 N | Sealing: | Sealed |
| Rolling Element: | Needle Roller - Caged | Dynamic Radial Rating: | 2 |
| Limiting Speed: | 6 | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 16 | Static Track Roller Load Rating: | 16 |
| Platform: | CAMROL® | Roller Shape: | Crowned |
| Dynamic Load Rating (lb): | 6, 300 lb | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud | Industry Standard: | DIN / JIS |
| Lubrication Hole Location: | Stud side | Clamping Torque (Nm): | 57 N·m |
| Ability to Relubricate: | Yes | Dynamic Load Rating (N): | 13, 040 N |
| UPC: | 726166020637 | Weight: | 0.47 LB |
| Packaged Length: | 1.9 Inches | Packaged Width: | 1.7 Inches |
| Packaged Height: | 2.4 Inches | Country of Origin: | China |
