- Metric stud type cam follower
- Crowned outside diameter
- Retained (caged) needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Jam nuts and lube fitting included
MCFR 30 SB

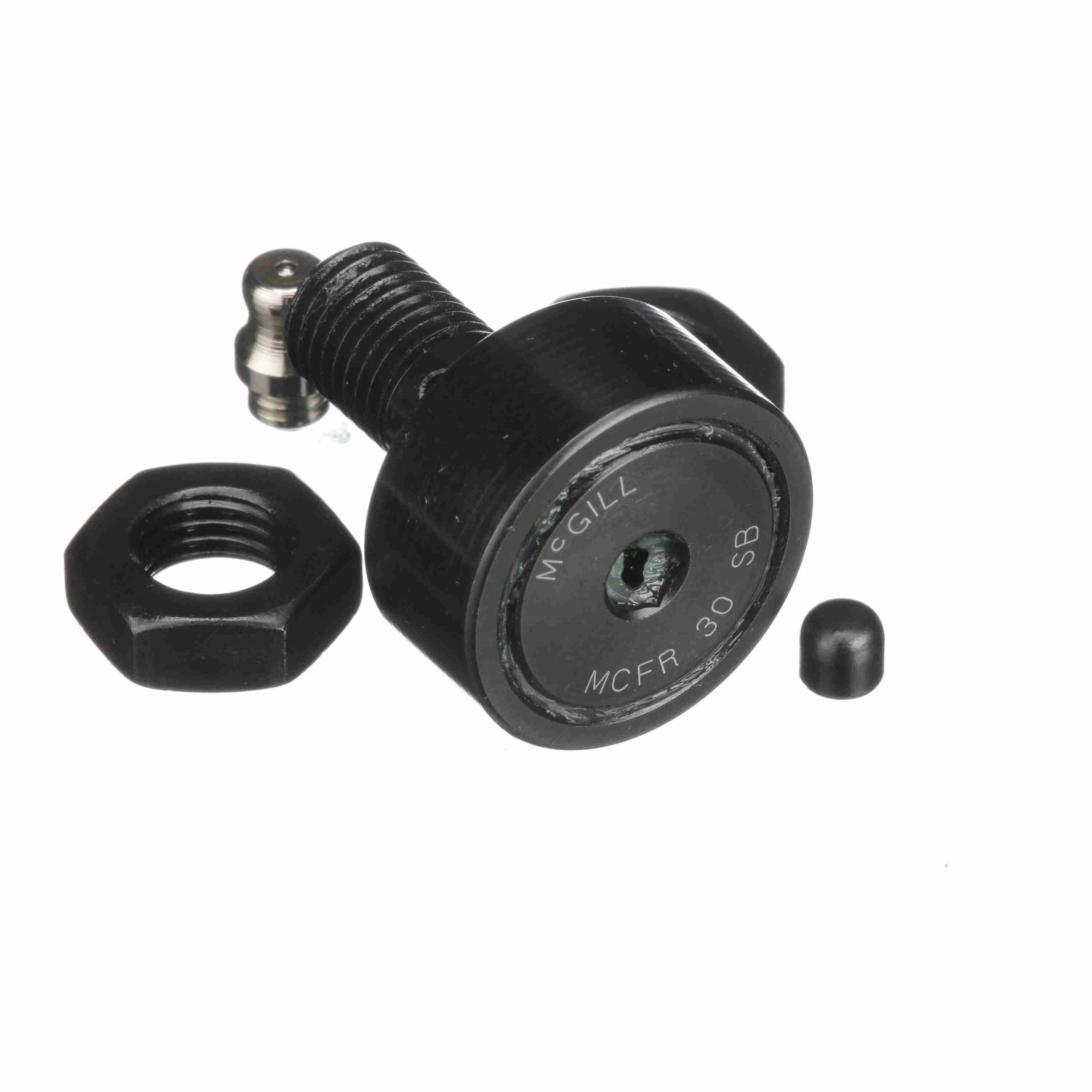

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCFR 30 SB
$99.52
Availability: 57 in stock
Availability: 57 in stock
| Limiting Speed: | 10 | O.D. Configuration: | Crowned |
|---|---|---|---|
| Sealing: | Sealed | Adjustment: | None |
| Dynamic Track Roller Load Rating (N): | 6, 860 N | Series: | Metric CAMROL® |
| Rolling Element: | Needle Roller - Caged | Dynamic Radial Rating: | 2 |
| Hex/Slot: | Hex Hole | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud | Dynamic Load Rating (lb): | 9, 600 lb |
| Static Load Rating: | 8 | Tolerance Class: | P0 Equivalent |
| Platform: | CAMROL® | Roller Shape: | Crowned |
| Static Track Roller Load Rating: | 8 | Industry Standard: | DIN / JIS |
| Lubrication Hole Location: | Stud side | Dynamic Load Rating (N): | 8, 240 N |
| Clamping Torque (Nm): | 22 N·m | Ability to Relubricate: | Yes |
| UPC: | 726166019068 | Weight: | 0.25 LB |
| Packaged Length: | 1.3 Inches | Packaged Width: | 1.3 Inches |
| Packaged Height: | 1.5 Inches | Country of Origin: | China |
