- Metric stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- LUBRI-DISC® seal
- Eccentric bushing configuration
- Jam nuts and lube fitting included

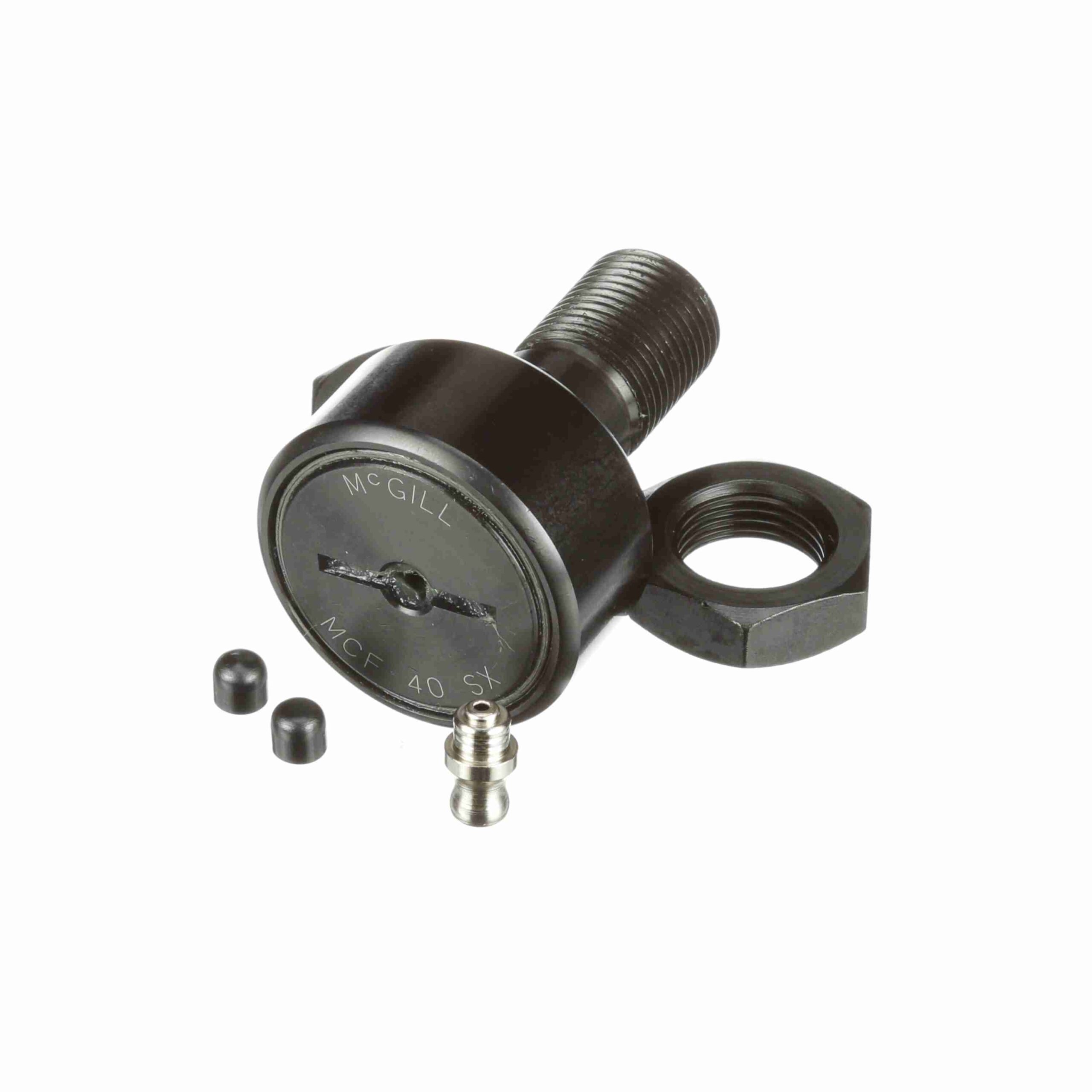

MCFE 40 SX
McGill CAMROL® Cylindrical Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Sealed – MCFE 40 SX
$88.08
Out of stock
Out of stock
| O.D. Configuration: | Cylindrical | Limiting Speed: | 3 |
|---|---|---|---|
| Sealing: | Sealed | Adjustment: | Eccentric Bushing |
| Series: | Metric CAMROL® | Dynamic Radial Rating: | 4 |
| Dynamic Track Roller Load Rating (N): | 19, 420 N | Hex/Slot: | Screwdriver Slot |
| Rolling Element: | Needle Roller - Full Complement | Material: | Bearing Steel, Black Oxide Finish |
| Static Track Roller Load Rating: | 32 | Stud Type: | Standard Stud with Eccentric Bushing |
| Static Load Rating: | 32 | Platform: | CAMROL® |
| Tolerance Class: | P0 Equivalent | Roller Shape: | Cylindrical |
| Industry Standard: | DIN | Ability to Relubricate: | Yes |
| Clamping Torque (Nm): | 85 N·m | Dynamic Load Rating (N): | 23, 240 N |
| UPC: | 726166021382 | Weight: | 0.58 LB |
| Packaged Length: | 1.69 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 2.36 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
