- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric bushing configuration
- Jam nuts and lube fitting included
MCFE 35 SB

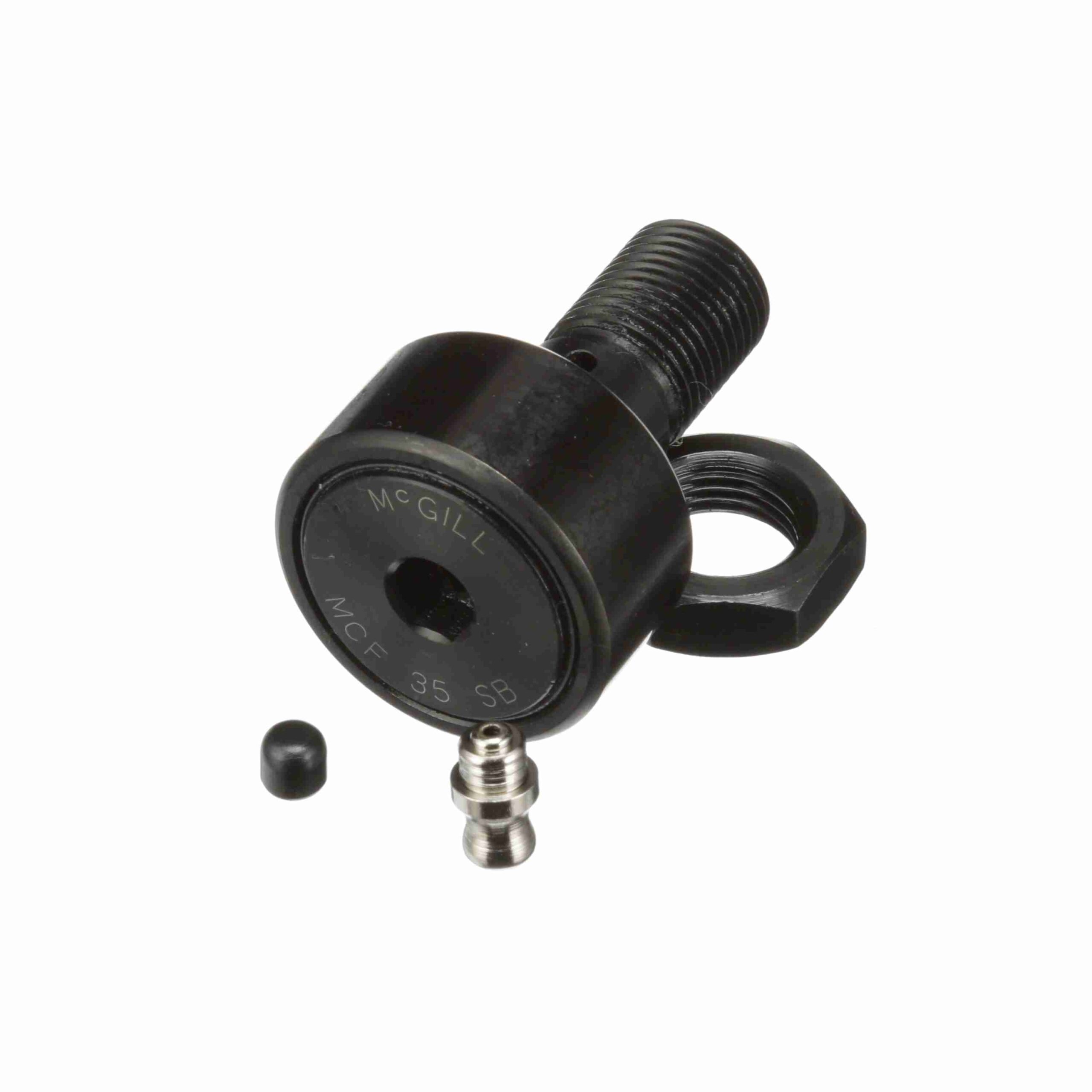

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCFE 35 SB
$64.39
Out of stock
Out of stock
| Dynamic Track Roller Load Rating (N): | 16, 970 N | Dynamic Radial Rating: | 4 |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Series: | Metric CAMROL® |
| Limiting Speed: | 4 | Hex/Slot: | Hex Hole |
| Adjustment: | Eccentric Bushing | Sealing: | Sealed |
| O.D. Configuration: | Crowned | Material: | Bearing Steel, Black Oxide Finish |
| Static Load Rating: | 29 | Stud Type: | Standard Stud with Eccentric Bushing |
| Static Track Roller Load Rating: | 29 | Industry Standard: | DIN / JIS |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Roller Shape: | Crowned | Clamping Torque (Nm): | 57 N·m |
| Dynamic Load Rating (N): | 20, 300 N | Ability to Relubricate: | Yes |
| UPC: | 726166020309 | Weight: | 0.40 LB |
| Packaged Length: | 1.69 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 2.36 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
