- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Eccentric bushing configuration
- Jam nuts and lube fitting included

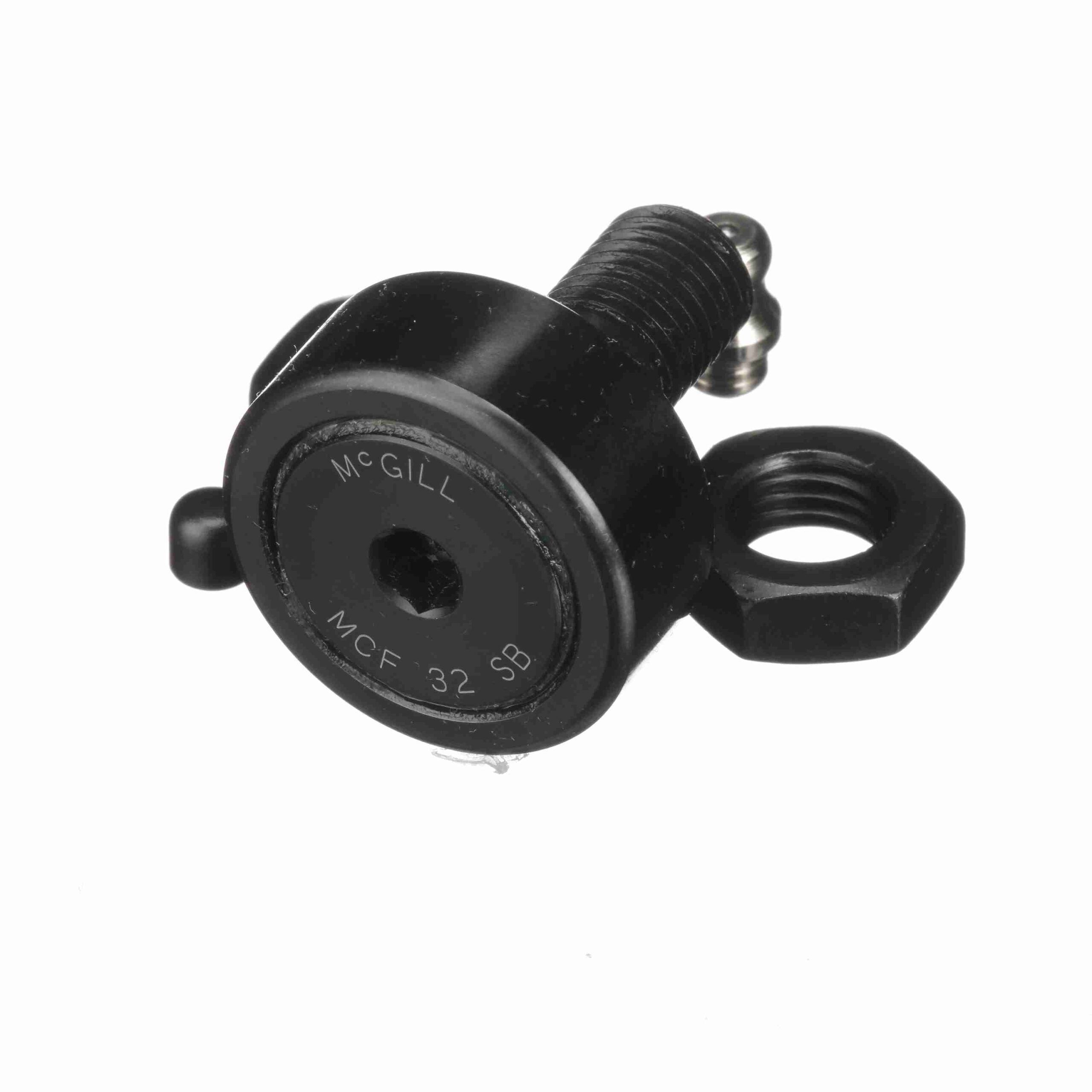

MCFE 32 SB
McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Hex Hole – Sealed – MCFE 32 SB
Out of stock
| O.D. Configuration: | Crowned | Limiting Speed: | 6 |
|---|---|---|---|
| Dynamic Radial Rating: | 2 | Rolling Element: | Needle Roller - Full Complement |
| Series: | Metric CAMROL® | Sealing: | Sealed |
| Hex/Slot: | Hex Hole | Dynamic Track Roller Load Rating (N): | 11, 080 N |
| Adjustment: | Eccentric Bushing | Material: | Bearing Steel, Black Oxide Finish |
| Stud Type: | Standard Stud with Eccentric Bushing | Tolerance Class: | P0 Equivalent |
| Static Track Roller Load Rating: | 15 | Industry Standard: | DIN / JIS |
| Roller Shape: | Crowned | Static Load Rating: | 15 |
| Platform: | CAMROL® | Dynamic Load Rating (N): | 13, 240 N |
| Ability to Relubricate: | Yes | Clamping Torque (Nm): | 22 N·m |
| UPC: | 726166019587 | Weight: | 0.23 LB |
| Packaged Length: | 1.37 Inches | Packaged Width: | 1.37 Inches |
| Packaged Height: | 1.57 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
