- Metric stud type cam follower
- Crowned outside diameter
- Needle rolling elements
- Slot hole
- Eccentric bushing configuration
- Jam nuts and lube fitting included
MCFE 22

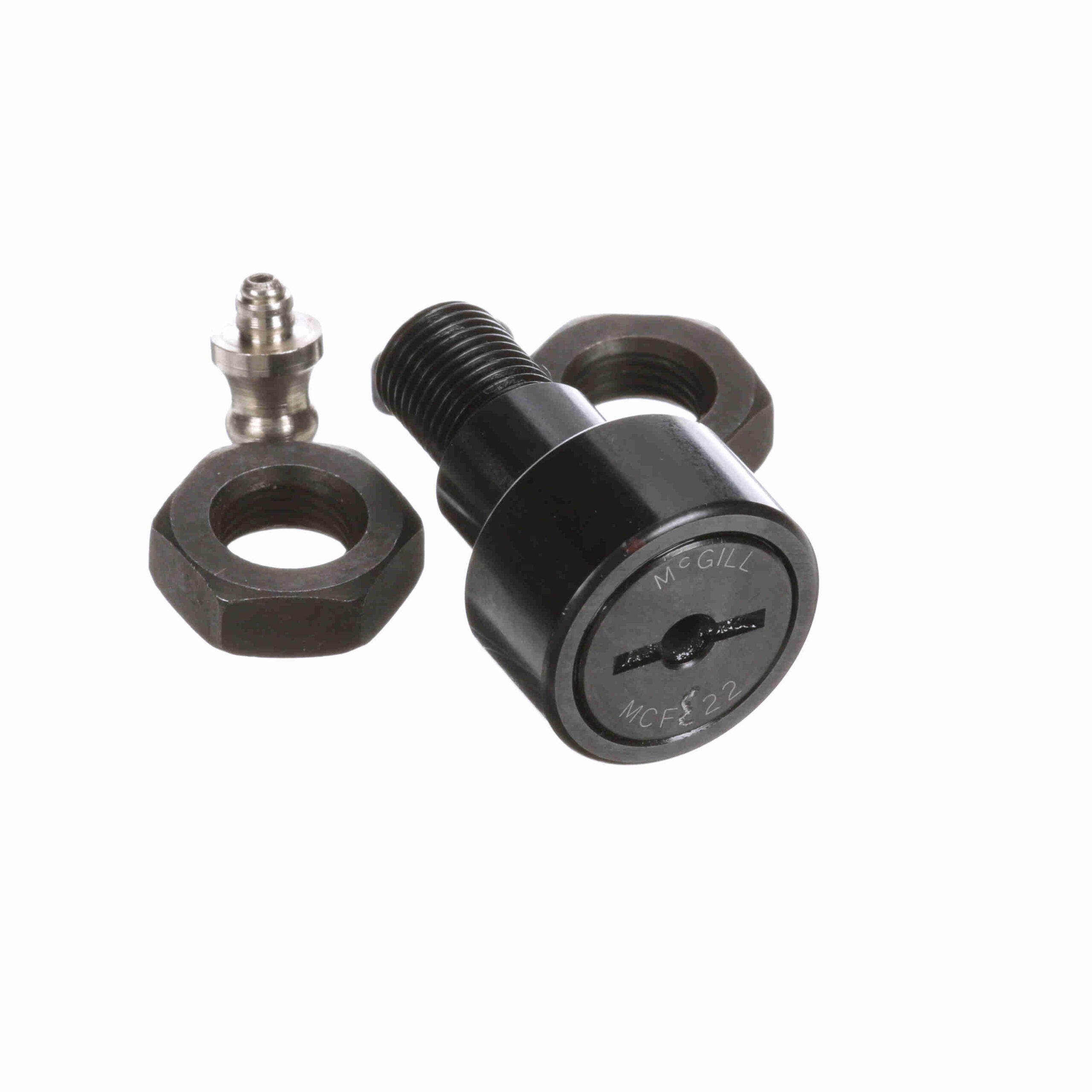

McGill CAMROL® Crowned Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – MCFE 22
$54.63
Out of stock
Out of stock
| O.D. Configuration: | Crowned | Dynamic Radial Rating: | 2 |
|---|---|---|---|
| Limiting Speed: | 9 | Rolling Element: | Needle Roller - Full Complement |
| Series: | Metric CAMROL® | Dynamic Track Roller Load Rating (N): | 7, 850 N |
| Hex/Slot: | Screwdriver Slot | Adjustment: | Eccentric Bushing |
| Sealing: | Unsealed | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Static Load Rating: | 10 |
| Static Track Roller Load Rating: | 10 | Stud Type: | Standard Stud with Eccentric Bushing |
| Industry Standard: | DIN | Platform: | CAMROL® |
| Roller Shape: | Crowned | Dynamic Load Rating (N): | 9, 410 N |
| Clamping Torque (Nm): | 15 N·m | Ability to Relubricate: | Yes |
| UPC: | 726166106515 | Weight: | 0.16 LB |
| Packaged Length: | 1.4 Inches | Packaged Width: | 1.2 Inches |
| Packaged Height: | 1.7 Inches | HTC: | 8482.40.0000 |
| Country of Origin: | China |
