- Metric heavy duty stud type cam follower
- Crowned outside diameter
- Full complement cylindrical rolling elements
- Slot hole
- Metallic shield sealing
- Jam nuts and lube fitting included
MCFD 90

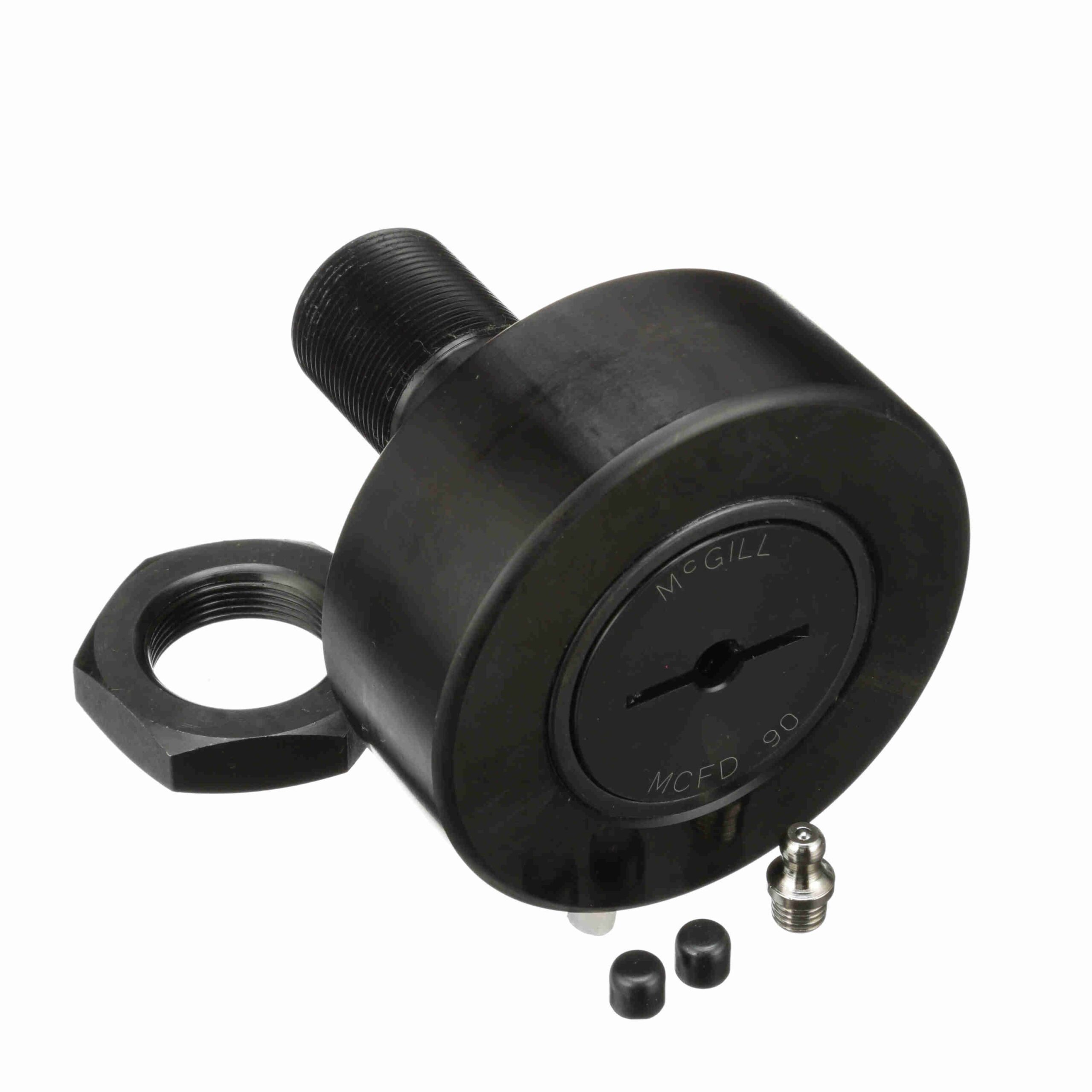

McGill CAMROL® Crowned Heavy Duty Metric Cam Follower – Stud Mount Roller – Screwdriver Slot – Shielded – MCFD 90
$638.28
Availability: 4 in stock
Availability: 4 in stock
| Sealing: | Shielded | O.D. Configuration: | Crowned |
|---|---|---|---|
| Series: | Heavy Duty Metric CAMROL® | Adjustment: | None |
| Limiting Speed: | 2 | Hex/Slot: | Screwdriver Slot |
| Dynamic Track Roller Load Rating (N): | 67, 000 N | Dynamic Radial Rating: | 10 |
| Rolling Element: | Cylindrical Roller | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Static Track Roller Load Rating: | 101 |
| Stud Type: | Standard Stud | Roller Shape: | Crowned |
| Static Load Rating: | 101 | Platform: | CAMROL® |
| Ability to Relubricate: | Yes | Clamping Torque (Nm): | 441 N·m |
| Dynamic Load Rating (N): | 94, 000 N | UPC: | 726166029340 |
| Weight: | 4.89 LB | Packaged Length: | 3.7 Inches |
| Packaged Width: | 3.7 Inches | Packaged Height: | 4.8 Inches |
| Country of Origin: | China |
